S&S Cycle 2006-Up Gear Drive Cams for Harley-Davidson Twin Cam 88 Engines User Manual
Page 11
11
1.
Pinion Gear.......... ...............................................................................33-4160
Pinion Gear, Undersized ...................................................................33-4160X
Pinion Gear, Oversized ......................................................................33-4160Z
2.
Outer Cam Gear .................................................................................33-4269
3.
Side Plate
(5 Pack)
........... .....................................................................33-4266
4.
Top Plate
(5 Pack)
..................................................................................33-4267
5.
Screw HHC 5/16-18 x ¾”
(10 Pack)
...........................................................50-0149
6.
Screw BHTS ¼-20 x ¾”
(8 Pack)
............................................................50-1102
7.
Washer, Flat 3/8" x 11/8" x .225"
(5 Pack)
.................................................50-7082
8.
Thrust Washer, .110”.......... .................................................................50-1103
9.
Retaining Ring, Bowed #78
(10 Pack)
...................................................50-1104
10. Key, Woodruff .125 x .5
(10 Pack)
..........................................................50-1105
11. Key, .188 x .150 x .57
(5 Pack)
...............................................................50-1012
12. Gasket, Cam Cover
(10 Pack)
..................................................................31-2102
13. Rear Camshaft
14. Front Camshaft
15. Front Inner Gear .................................................................................33-4273
16. Rear Inner Gear ..................................................................................33-4274
Rear Inner Gear, Undersized ...............................................................33-4277
Rear Inner Gear, Oversized ..................................................................33-4278
17. Screw SHCS 3/8-24 x 1¾"
(10 Pack)
.........................................................50-0189
18. Needle Bearing
(2 Pack)
........................................................................31-4499
19. Cam Installation Kit ............................................................................33-5240
(Includes #3, 4, 5, 6, 8, 9, 12, 18)
20. Outer Cam Drive Gear Kit ...................................................................33-4268
(Includes #1, 2, 7, 11, 17)
21. Cam Gear Kit ......................................................................................33-4285
(Includes #1, 2, 7, 11, 15, 16, 17)
22. Outer Gear Hardware Pack ................................................................33-4271P
(Includes # 7, 11, 17)
23. Camshafts 510G .................................................................................33-5251
(Includes 13, 14)
Camshafts 570G .................................................................................33-5252
Camshafts 585G .................................................................................33-5253
Camshafts 625G .................................................................................33-5254
Camshafts 640G .................................................................................33-5255
24. Camshaft 510G Kit ..............................................................................33-5246
(Includes 10,13,14,15,16)
Camshaft 570G Kit ..............................................................................33-5247
Camshaft 585G Kit ..............................................................................33-5248
Camshaft 625G Kit ..............................................................................33-5249
Camshaft 640G Kit ..............................................................................33-5250
1
2
7
17
12
11
3
4
16
13
18
14
10
15
6
8
9
6
5

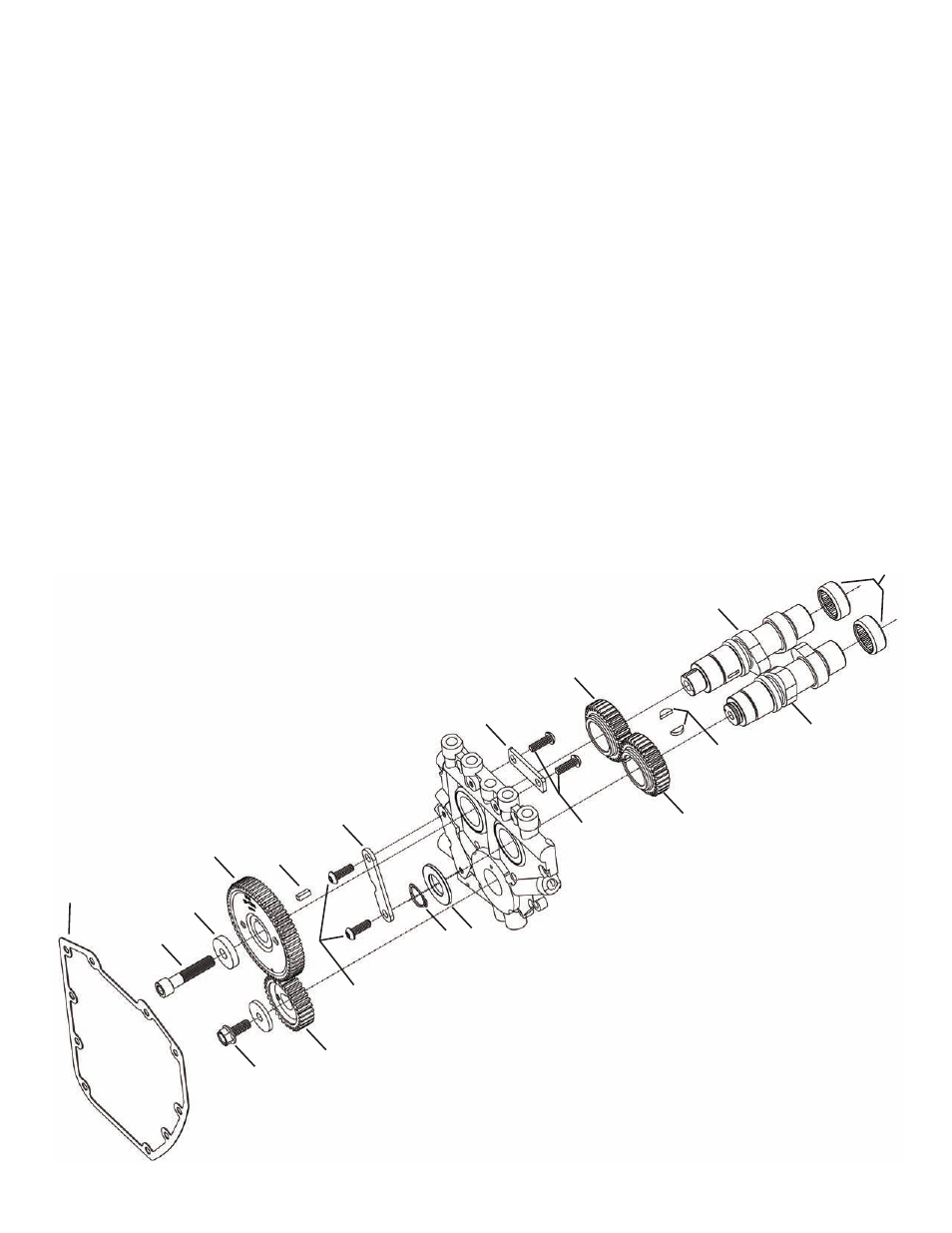

S&S® 2006-UP GEAR DRIVE CAM REPLACEMENT PARTS FOR HARLEY-DAVIDSON® TWIN CAM 88® ENGINES
