16 • Overview of the GX-2001 Calibration Station
Overview of the GX-2001
Calibration Station
This section describes the components of the GX-2001
Calibration Station, which is used for down loading information
in the Model GX-2001 and for the calibration of that unit.
Front Panel
The front panel of the GX-2001 Calibration Station has an on/off
switch, four indicator lights, a flow meter, and handles.
Span Gas
Flow
Pilot
Low Flow
O n
O f f
GX-2001
Calibration Station
Fresh Air

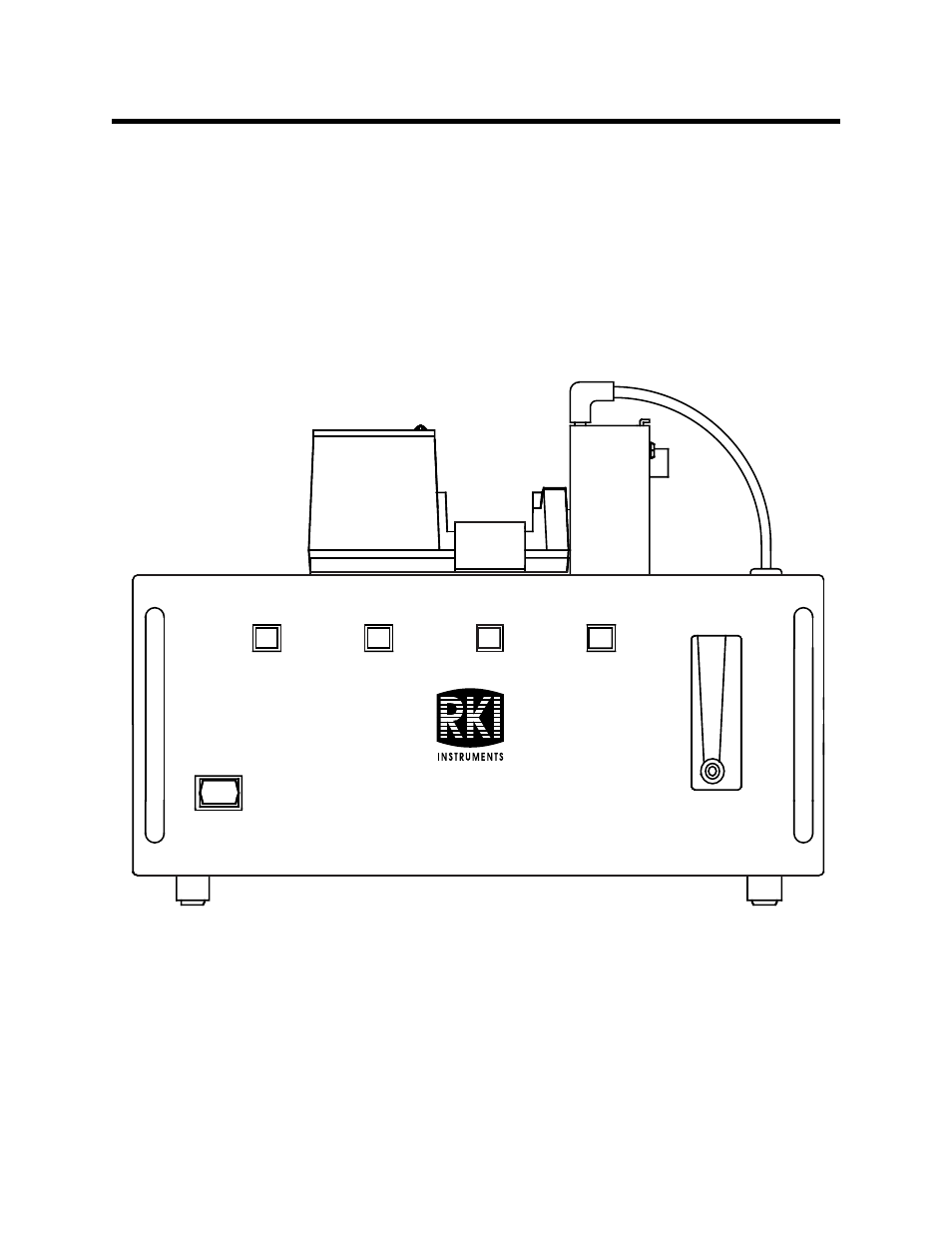

Figure 7. GX-2001 Calibration Station: Front View
