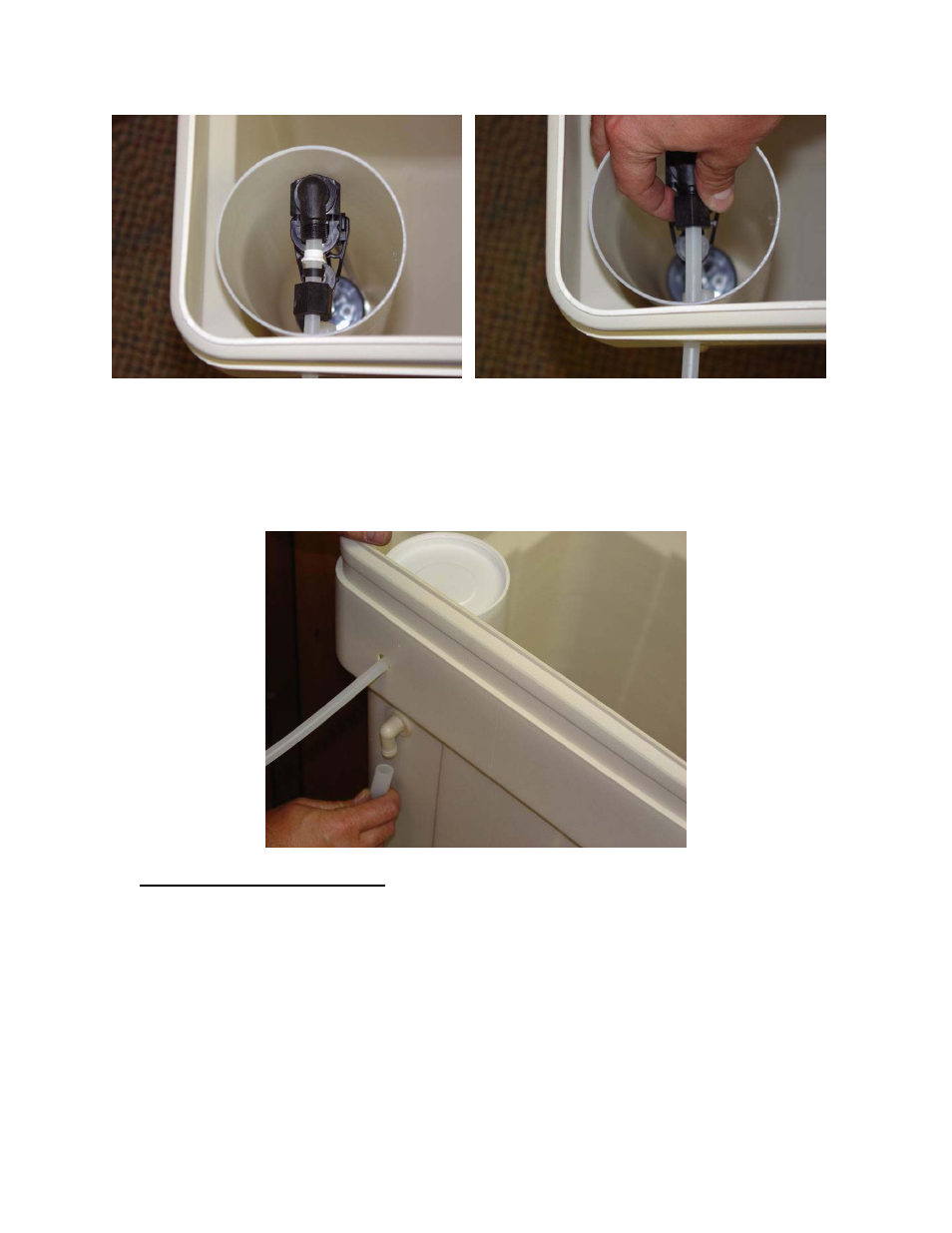

FIGURE 17 FIGURE 18
• Finally, use ½” I.D. tubing to connect the drain bard fitting on the brine tank to a
floor drain as shown in Figure 19.
NOTE: This is not necessary as the 2310
assembly is designed to prevent an overflow situation, , but is a good and
recommended precaution for a proper installation.
FIGURE 19
Making the Drain Connection:
• Locate the included barbed fitting and use Teflon tape to wrap the threading.
Install the fitting to the Fleck 5600SXT Meter Valve by screwing the fitting using
a wrench snugly into the drain port as shown in Figure 20 on the following page.
Please use caution not to over tighten this fitting.
• Next, assemble your ½” I.D. drain line to the drain barb as shown in Figure 21 on
the following page. Be sure to use rigid wall ½” I.D. tubing that will not flatten!
