5.7.4
Attaching the Header (M150/M155 Windrowers)
The R85 13-foot header requires motor/hose kit
MD #B5510 installed to enable operation on an M150 or
M105 windrower.
If required, obtain the kit through your MacDon Dealer.
Install kit in accordance with the supplied instructions.

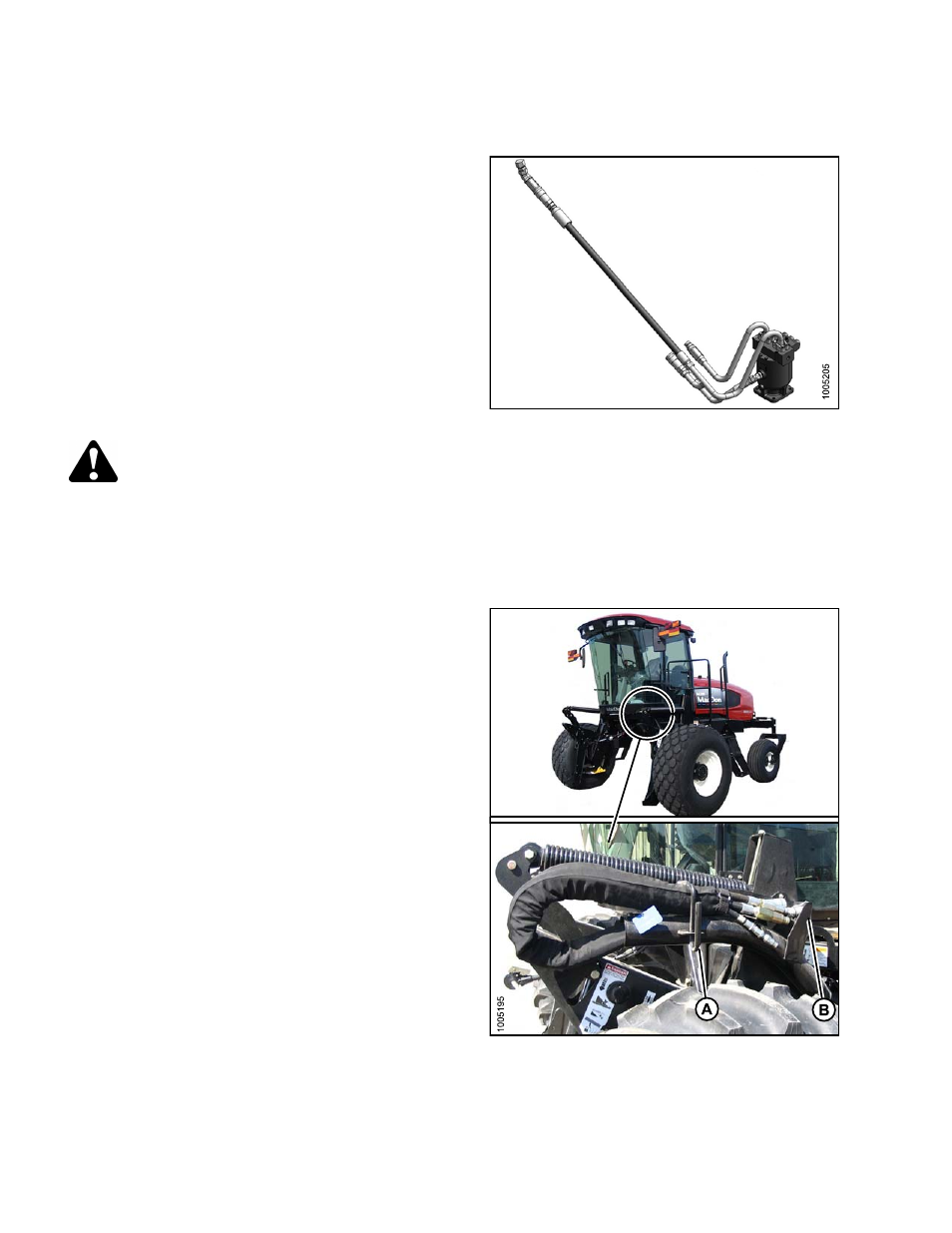

Figure 5.45: MD #B5510
DANGER
Stop engine and remove key from ignition before
leaving operator’s seat for any reason. A child or
even a pet could engage an idling machine.
To attach the header to an M150 or M155 windrower, follow
these steps.
1. Disengage and rotate lever (A) counterclockwise to
FULLY UP position.
2. Remove cap (B) securing electrical connector to frame.
Figure 5.46
169455
50
Rev. E
