Form # 46620 Issue 01/06 41
MAINTENANCE/SERVICE

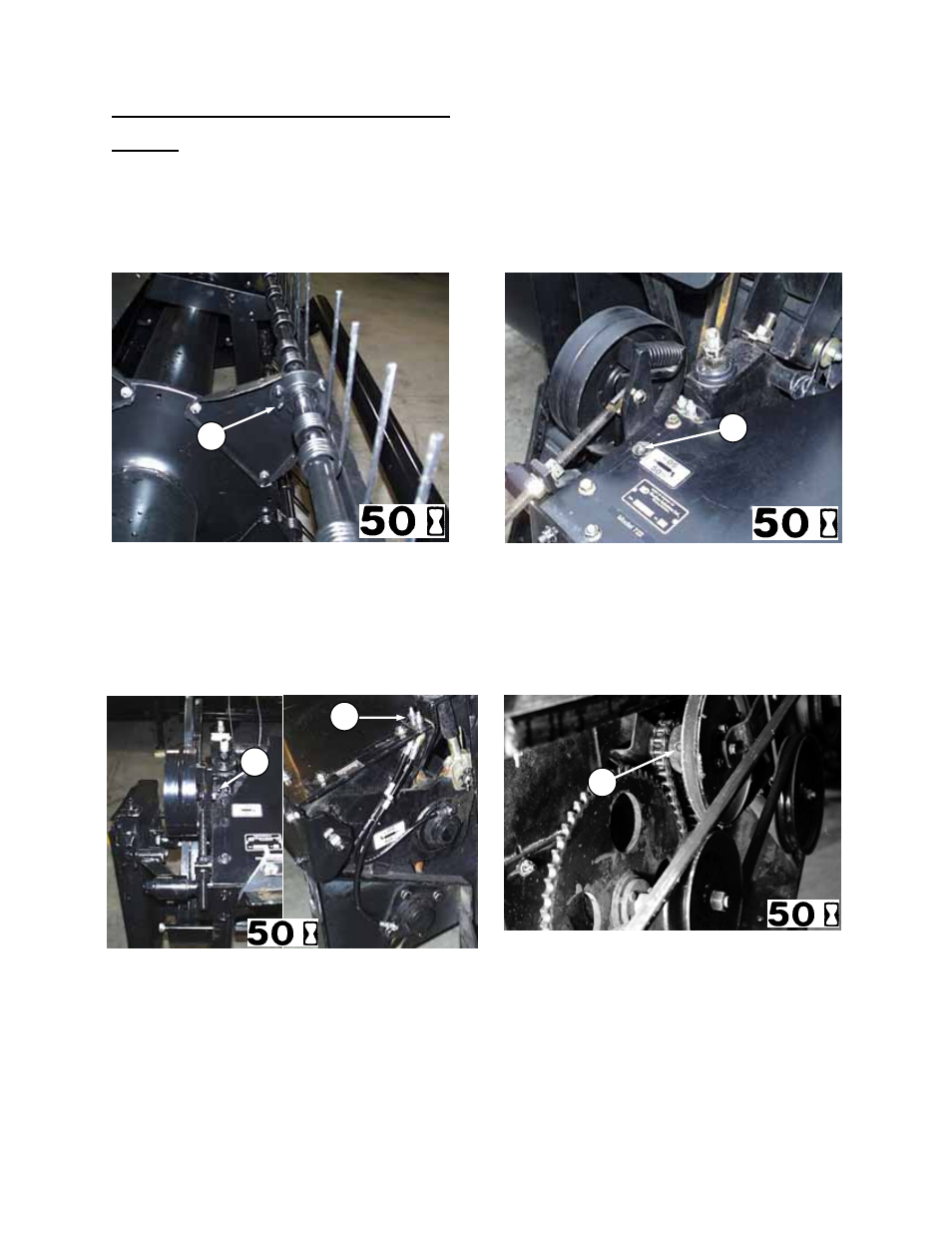

GREASING THE HEADER AND CONDITIONER (continued)
50 Hours:
1. Reel Finger Tube Bearings (E)
- twenty fittings on 14’, 16’, 18’ - 922 headers.
- eighteen fittings on 12’ – 933 headers.
- twenty-four fittings on 14’ – 933 headers.
2. Hay Conditioner Roll Shaft Bearings (F) & (G)
- four fittings.
3. Hay Conditioner Idler Pivot (J)
- one fitting
4. Auger Drive Jackshaft Bearings (K)
- one fitting on 912 Header only
E
REEL FINGER TUBE BEARINGS
922 & 933 HEADERS
LEFT SIDE RIGHT SIDE
CONDITIONER ROLL BEARINGS
F
G
CONDITIONER IDLER PIVOT
J
JACKSHAFT BEARINGS - 912 HEADER
K
