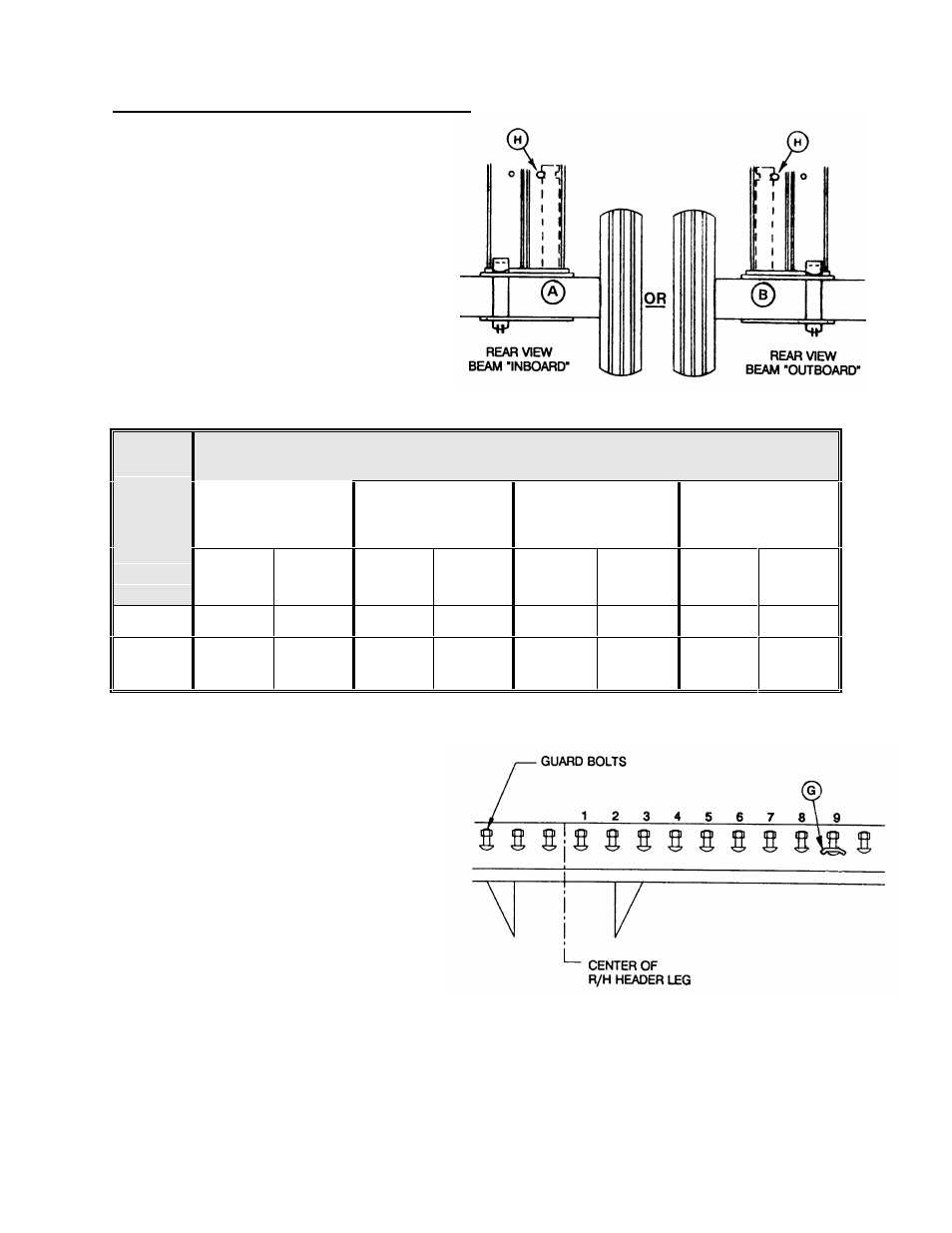

65

UNLOADING & ASSEMBLY

INSTALL GAUGE WHEEL / TRANSPORT OPTION
30 & 36 FT. (continued)

5. Install 1/2 inch hex head bolt (H) and locknut

(removed above), attaching dual wheel beam
to right wheel support in field position.
NOTE: The pivot shaft on the wheel beam can
be installed at right side (A) or left side (B) of
wheel support. This allows field positioning of
the beam either "inboard" (towards center of
header) or "outboard" (towards end of header),
as desired. See chart for recommended
position depending on power unit.

POWER UNIT

9000/4900/2900
WINDROWER

9030 TRACTOR:
CENTER MOUNT
ADAPTER

9030 TRACTOR:
OFFSET MOUNT
ADAPTER

COMBINE

H
E
A
D
E
R

PIVOT
SHAFT
POSITION

BEAM IN
FIELD
POSITION

PIVOT
SHAFT
POSITION

BEAM IN
FIELD
POSITION

PIVOT
SHAFT
POSITION

BEAM IN
FIELD
POSITION

PIVOT
SHAFT
POSITION

BEAM IN
FIELD
POSITION

30’

B

OUT

A

IN

A

IN

B

OUT

36’

B

or A

OUT

or IN

B

or A

OUT

or IN

B

or A

OUT

or IN

B

or A

OUT

or IN

6. Install brace anchor (G) under cutterbar at the

9th guard bolt from center of R/H header leg,
replacing standard bolt with 1-3/4" long.
NOTE: If a sickle hold-down or deck support is
installed at 9th bolt, relocate hold-down or
support to an adjacent location.

INSTALL BRACE ANCHOR AT CUTTERBAR

ATTACH RIGHT WHEEL BEAM
