MacDon 9352i SP - Manual (Page 89)

Form # 147141 Issue 02/06 Web Rev_01 87
MAINTENANCE/SERVICE
Electrical System
LIGHTS AND BULBS (continued)

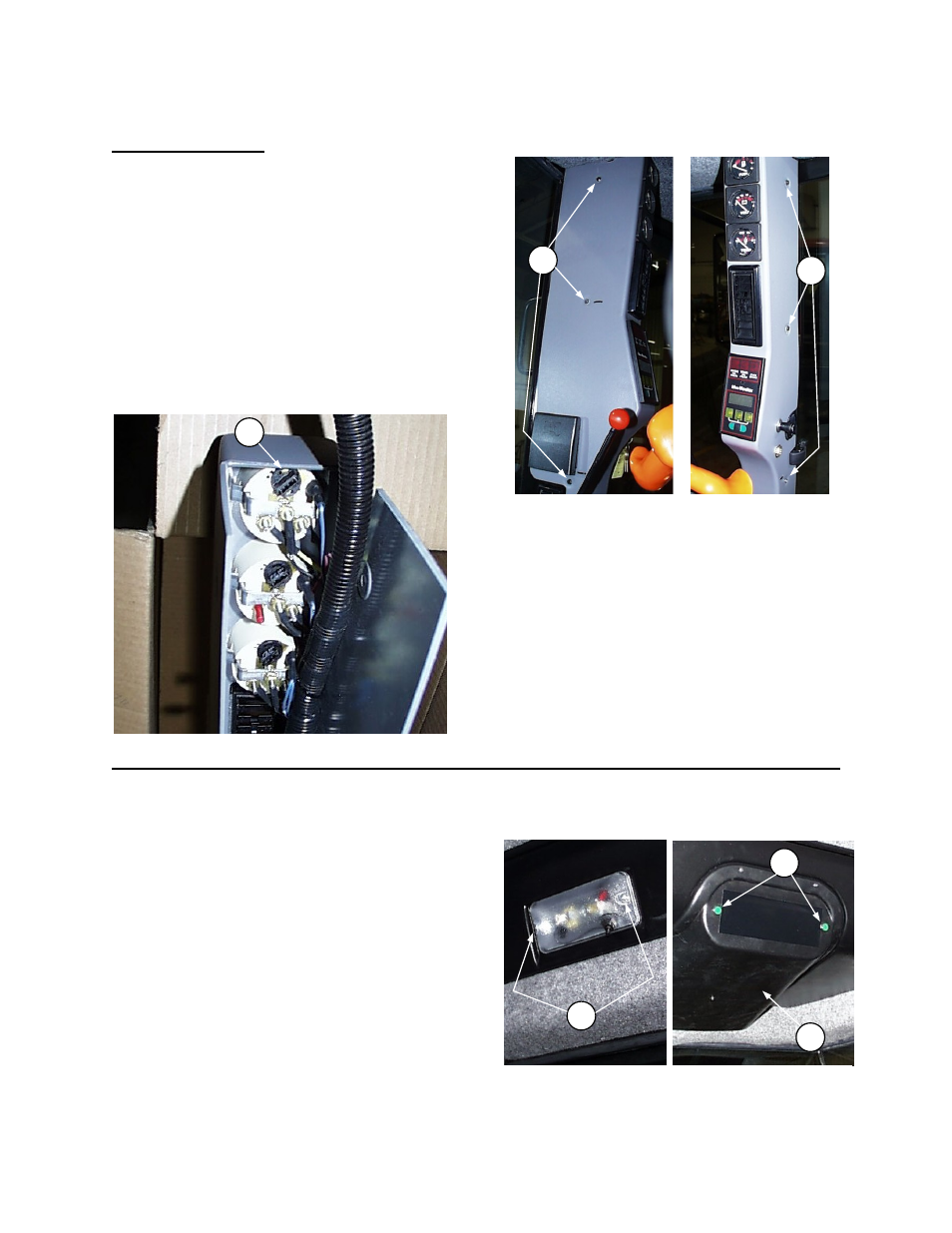

REPLACING GAUGE LIGHT BULBS
1. Turn light switch and ignition key to OFF.
2. Remove six screws (three per side) from
instrument panel (A). While pulling out on top of
instrument panel, pull up until panel clears side
console.
3. To replace gauge lights, twist and pull bulb
holder (D) from back of gauge and replace bulb.
NOTE: Bulb trade #161.
REPLACING DOME LIGHT BULB
1. Remove two screws (D) from plastic lens.
2. Replace bulb and reinstall plastic lens.
NOTE: Festoon Bulb 12V-21 CP
REPLACING TURN SIGNAL INDICATORS
1. Remove six screws around outer edge of cover
(F). Lower cover to expose inner wiring.
2. Push out entire unit (E), detach wiring and
replace.
3. Reinstall cover (F).
A
A
GAUGE LIGHTS
D
REMOVE INSTRUMENT PANEL
D
F
E
DOME LIGHT AND TURN INDICATORS
