Paxton Net2 RS232/485 converter - Manual

What data cable should be used?

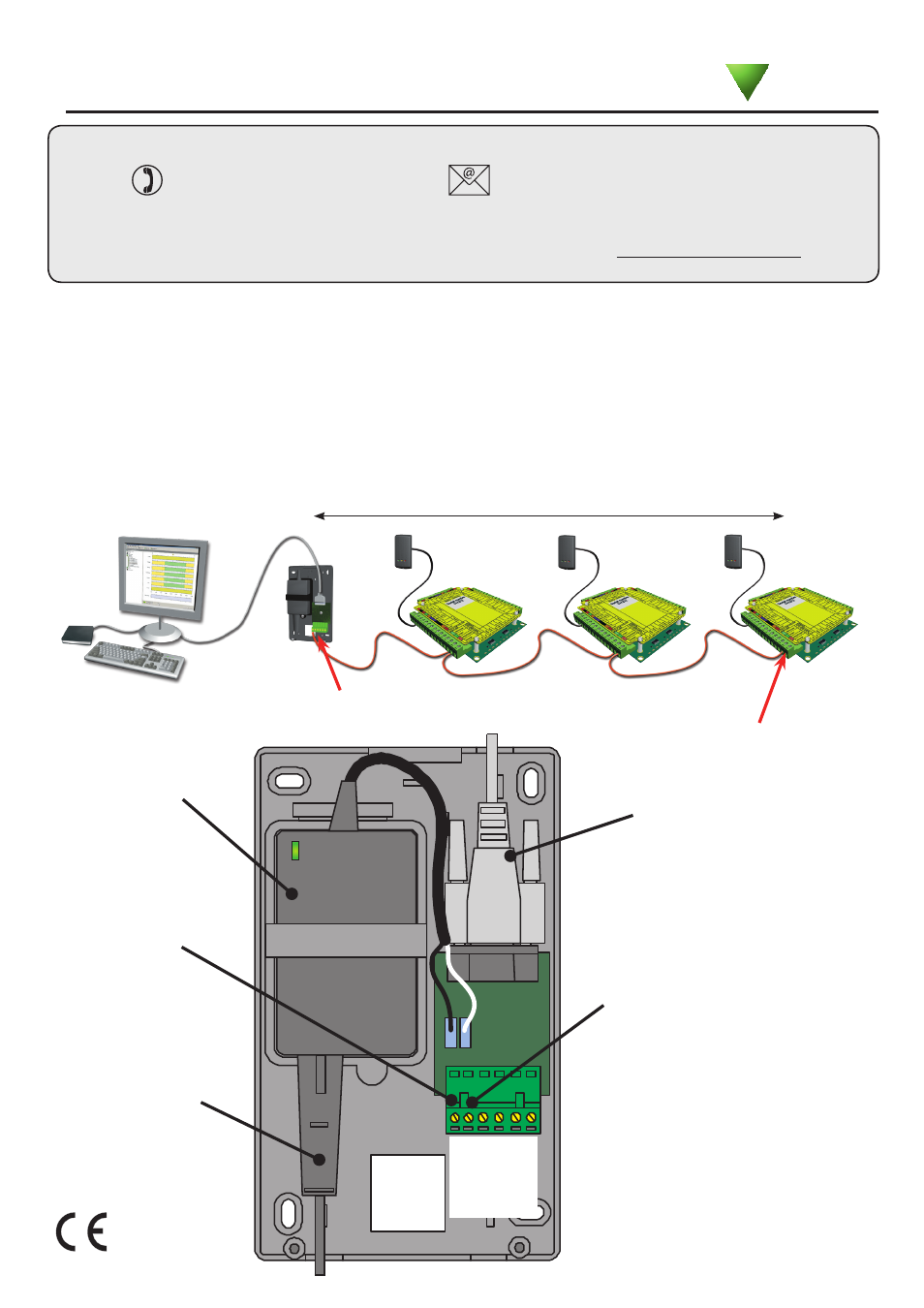

Wiring
The converter is connected to the PC port with the supplied data cable.
CAT5 or Belden 8723
Reader
RS232/485
converter
Control
unit
USB
desktop
reader
White/Green Green White/Or
ange
Or
ange
12V 0V
12V DC
power supply
230V AC
input
Serial cable to PC
serial port
12V output. Total load including
converter should not exceed 1A
IMPORTANT: THIS IS NOT AN INPUT
Resistor x 2
1,000 metres max
02/02/2010
ALL OTHER SPARE
CORES
Resistor x 2
USB: This unit should NOT be
used with USB serial ports, as
they do not provide reliable
communication at the high
speed required by Net2.
END OF LINE TERMINATION - 120 ohm resistors must be linked across each data pair at the beginning AND end of the data
line. This can be done on many units with a switch or jumpers. If not, free resistors are provided with the converter. If the data
converter is located at a point along the data line, termination will then be required in the two ACU’s at each end of the line.
This product is not suitable for
retail sale. All warranties are
invalid if this product is not
installed by a competent person.
Ins-30055 Net2 RS232/485 converter
Technical Support
Technical help is available: Monday - Friday from 07:00 - 19:00 (GMT)
Saturday from 09:00 - 13:00 (GMT)
01273 811011 [email protected]
Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/
