Paxton PROXIMITY metal reader - Manual (Page 2)

The reader port module is designed to convert the
standard reader ports on Switch2 and Net2 controllers to
accept one or two RJ45 connections. Pull off the screw
terminal block from the reader port and simply replace it
with this module.
This module can be used to provide a connection
point for the reader RJ45 plug. The terminals on
the module are then wired colour for colour to
the controller.

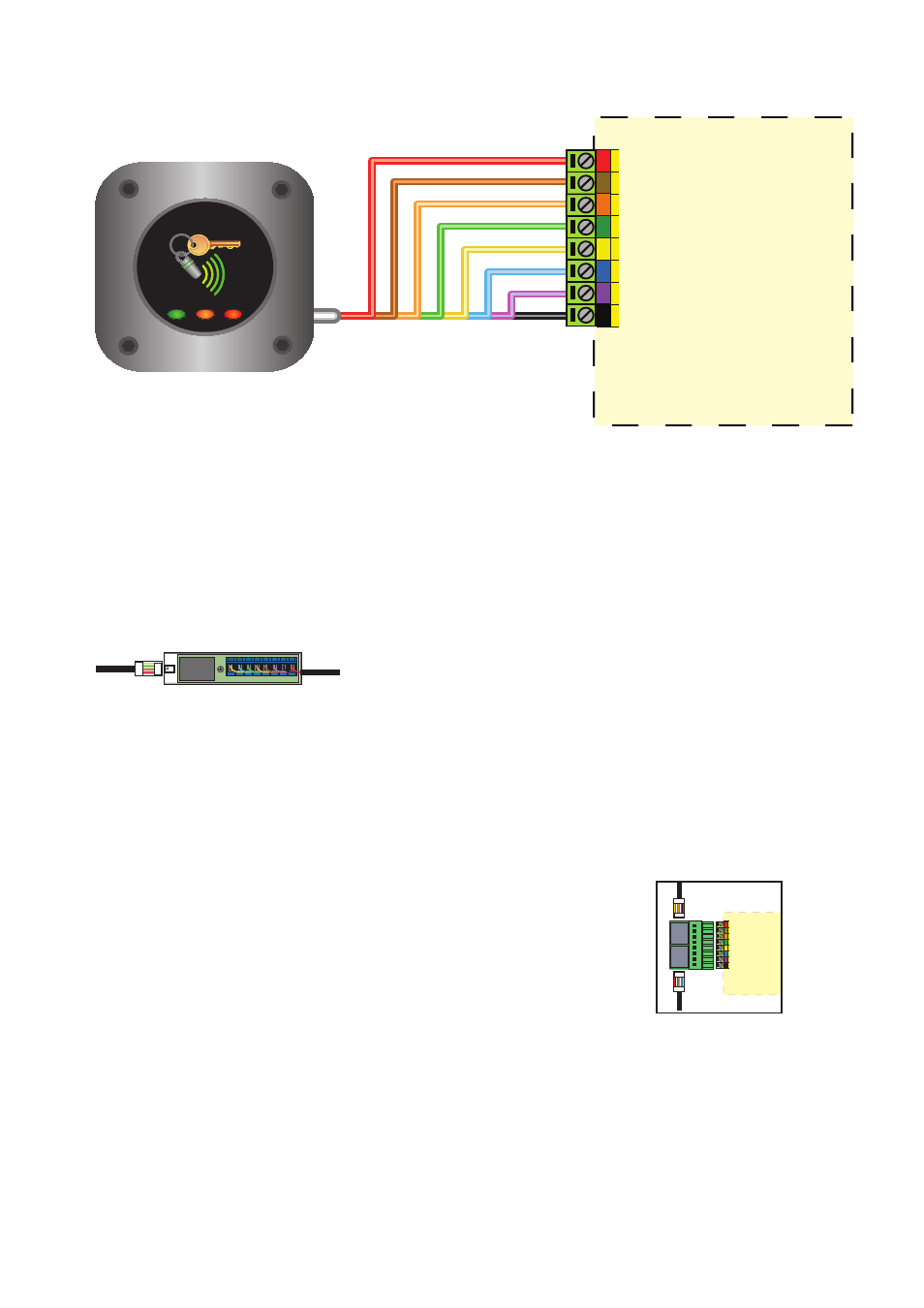

Alternatively, the reader can be wired directly
into the screw terminals of the control unit by
first cutting off the RJ45 plug and stripping back
the wires in the cable.
Reader port module (325-030)
This module may be purchased separately to speed up
the installation and replacement of readers.
Connection modules
Further information on how to purchase Installer Tools is available at:
http://paxton.info/841
Reader junction box (325-020)
Connection to a control
unit reader port
Wiring
