PROXIMITY marine reader - Wiegand
Reader backplate
Backplate gasket
Backlight dimming card
Reader junction box
Instruction set
Kit fk1-079 3 No 8 x 1.5 in pozi pan self tapping screw - zinc
3 Wall plugs
Wire outputs
+12V DC
Brown
Orange
Green
Data 1
Data 0
Not Required
0V
Contents in box
Qty Fitting kit
-25 °C +55 °C
IPX7 Outdoor Use
5 metres
8V DC 14V DC
220 mA
125 kHz
26 bits
40 mm 30 mm 400 mm
106 mm 16 mm
Voltage
Wiegand format
Carrier frequency
Specifications
Operating temperature
Electrical
Environment
Current
Cable length
Read Range Token Keyfob
Waterproof
Dimensions
Min
Diameter
Max
Min Max
Depth
Hands Free Token
The backlight on the unit may be dimmed down or turned off if required. A dimming card is provided with this unit.
Present this card within 2 minutes of powering up the reader and the backlight (blue) will reduce in brightness.
Repeated presentations will reduce the brightness in stages down to no illumination. Showing the card again will
return the backlight to full power.
Backlight dimming card
EM4100 tokens

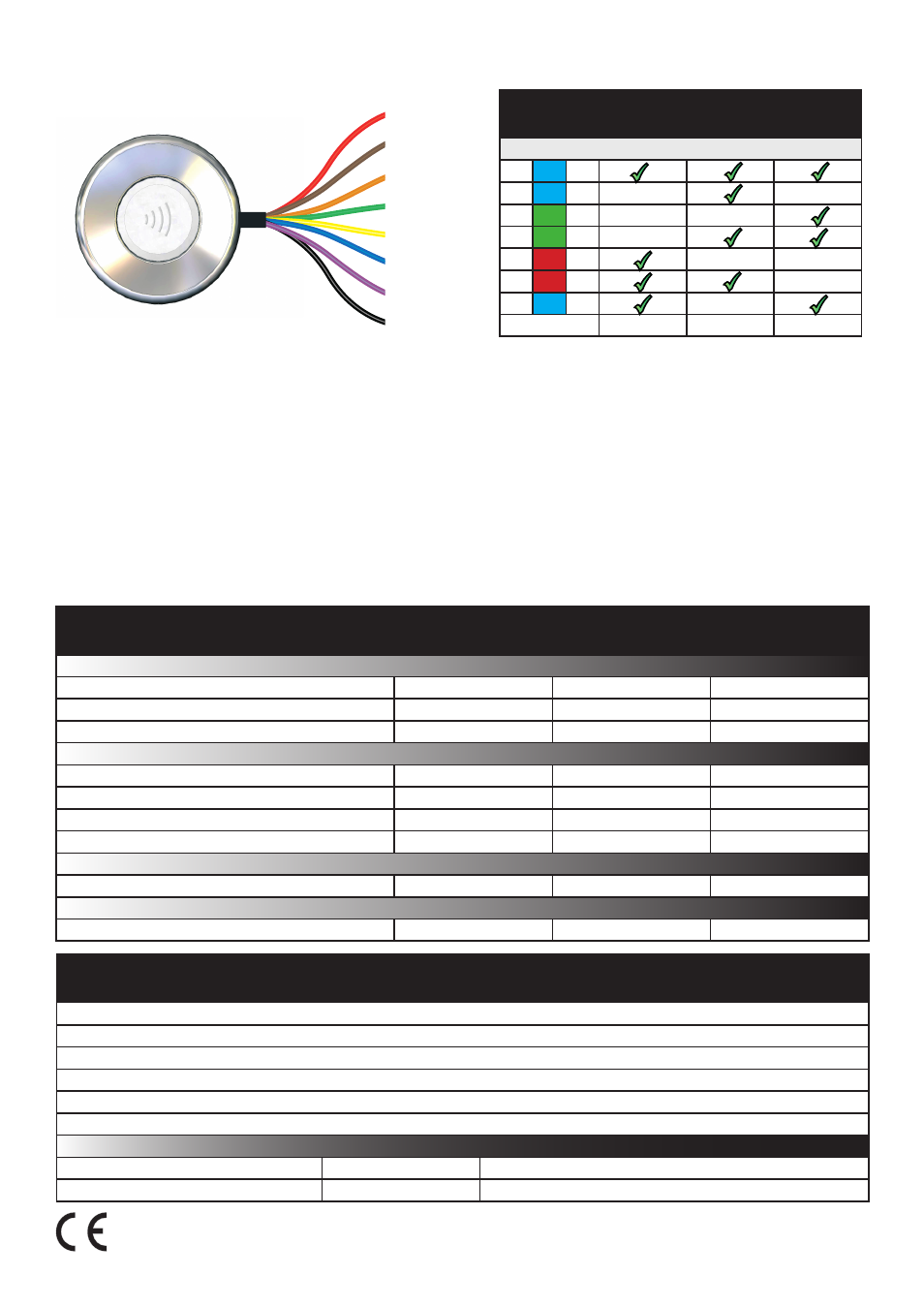

The active display on the marine reader is used to produce a blue backlight as well as green and red
indications. This is controlled by the brown, amber and green wires. Pulling these wires to ‘0V’ individually
or in combination will produce the colours as per the LED condition table.
LED Brown Orange Green
Output condition table
OFF
Description
