Wire outputs
+12V DC
Brown
Buzzer
Green
Data 1
Data 0
Not Required
0V
Qty Fitting kit
-25 °C +55 °C
IPX7 Outdoor Use
5 metres
8V DC 14V DC
220 mA
125 kHz
26 bits
40 mm 30 mm 400 mm
106 mm 16 mm
Voltage
Wiegand format
Carrier frequency
Specifications
Operating temperature
Electrical
Environment
Current
Cable length
Read Range Token Keyfob
Waterproof
Dimensions
Min
Diameter
Max
Min Max
Depth
Hands Free Token
The backlight on the unit may be dimmed down or turned off if required. A dimming card is provided with this unit.
Present this card within 2 minutes of powering up the reader and the backlight (blue) will reduce in brightness.
Repeated presentations will reduce the brightness in stages down to no illumination. Showing the card again will
return the backlight to full power.
Backlight dimming card

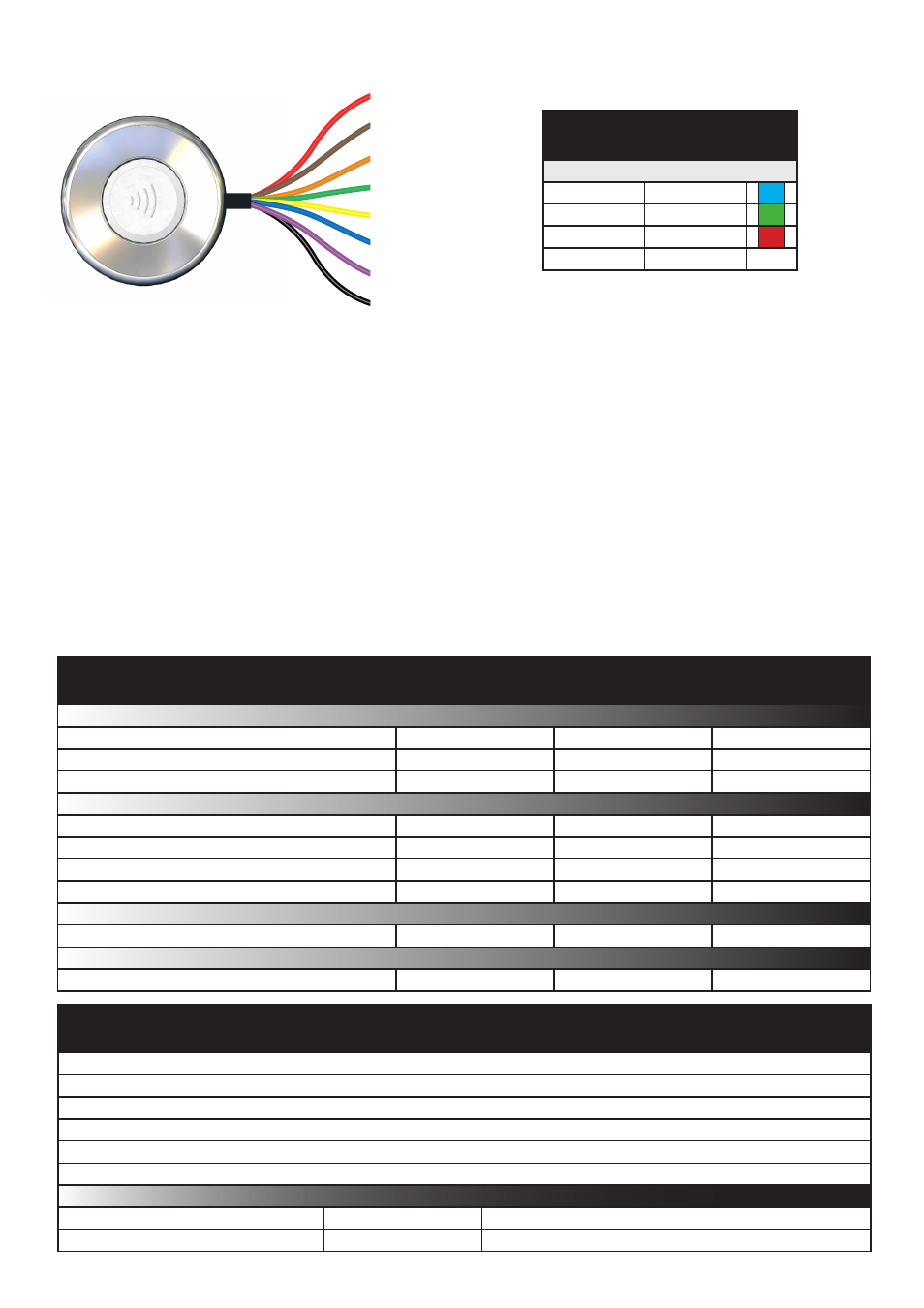

The active display on the marine reader is used to produce a blue backlight as well as green and red
indications. This is controlled by the brown, orange and green wires. Pulling these wires to ‘0V’
individually or in combination will produce the LED effect as per the condition table.
Description
PROXIMITY marine reader
Reader backplate
Backplate gasket
Backlight dimming card
Reader junction box
Instruction set
Kit fk1-079 3 No 8 x 1.5 in pozi pan self tapping screw - zinc
3 Wall plugs
Contents in box
Cable extensions
Readers can be extended using Belden CR9540 10-core overall screened cable to a maximum of 100 metres.
The orange wire directly controls the buzzer. When pulled to 0V the buzzer will sound.
