Parts Kit
Cargo Cover Qty - 1 Note: This product is designed for a "Custom Fit".
Be patient during the installation, it fits tight!

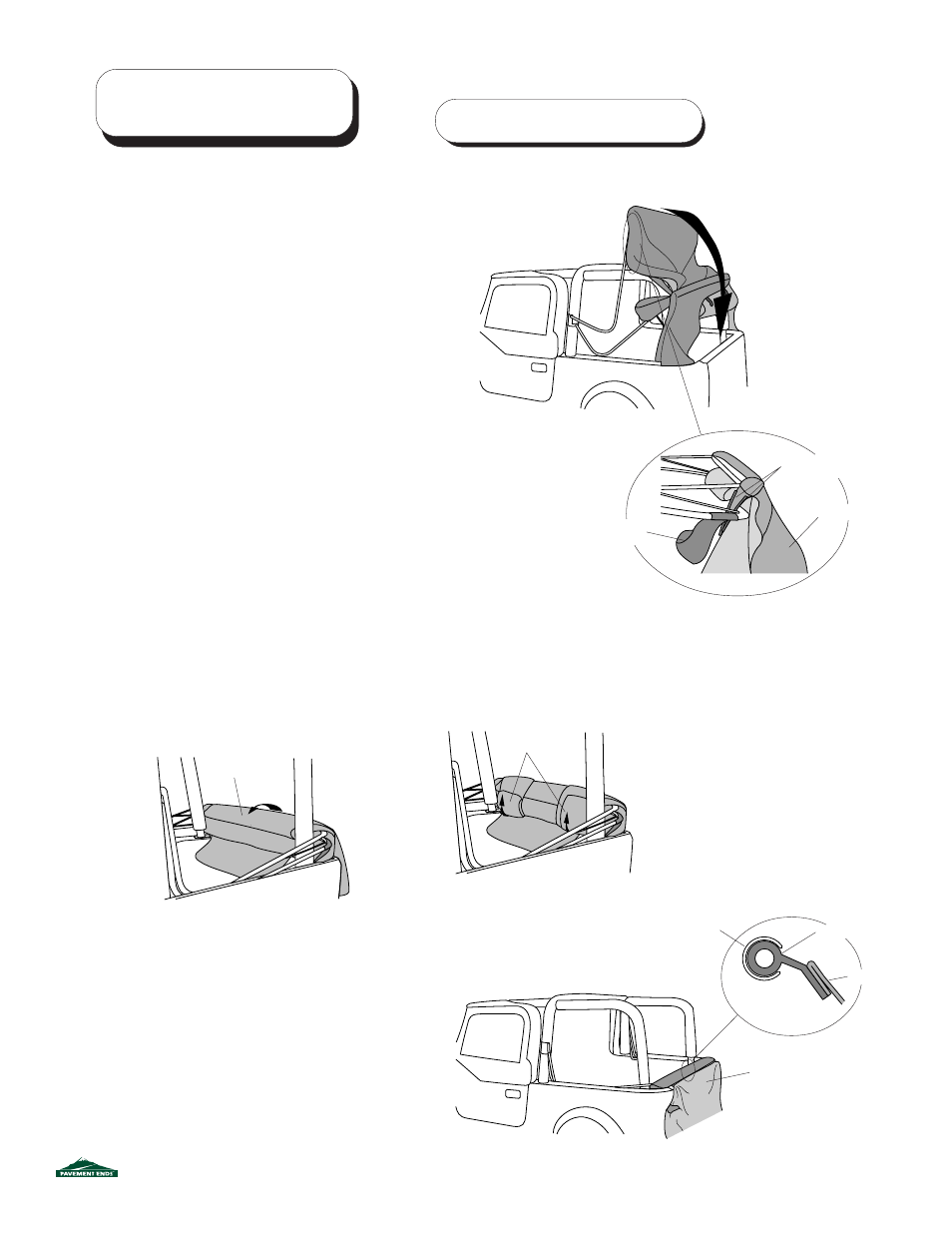

Step One
Unzip and remove the Side Panels and Rear Window from
the top. Remove the Tailgate Retainer from the Rear
Window. Cover the “glass” in the Side Panels and the
Rear Window and store them while not in use. Release the
front of the top from the windshield. Raise the front of the
deck and collapse the rear bows, tucking the two plastic
strips above the door openings and the stay pad on the
rear bow inside of the bows,
Collapse bows and fold
toward rear
Top Fabric
Tuck plastic strips
inside bows
Tuck stay pad inside
bows
Step Two
Lay the bows down along the rear of the vehicle. Wrap the fold of fabric from
the rear of the vehicle up around the bows. Then tuck the rear legs of the top
under the bows and wrap them around the deck fabric as tight as possible.
Tuck the fabric and bows down into the tub as far as possible.
Wrap fabric up
around bows
Wrap rear legs under
bows as tight as
possible
Step Three
Fold down the rear seat. From the back of the vehicle,
hold the Cargo Cover with the backing side toward you.
Slide the tubing into the channel in the Tailgate Retainer
and install the retainer into the Tailgate Retainer Mount.
Cargo Cover - Backing
side out
Detail of Tailgate
Retainer
Tailgate Retainer
Channel
Fabric
Tubing
