Step Nine
I NSTALL Q UARTER W INDOWS
Locate the Quarter Windows and orient them
with the plastic strips along the front and bottom
edges. The two fl aps on the top of the Quarter
Windows will sandwich the interior fl ap in the top
above the window openings.
Start the zipper at the top front of the Quarter
Window and close it to the top, rear corner.
Step Ten
S ECURE Q UARTER W INDOWS
The plastic strip sewn to the front edge of the
Quarter Window is notched to fi t around the stop
in the retainer. Working the notch around the stop,
slip the plastic into the retainer along the front and
bottom edges of the Quarter Window.
Step Eleven
S ECURE Q UARTER W INDOWS
Once the plastic strip is in place along the bottom of the
Quarter Window, give the window a sharp tug to the rear
to assist in closing the zipper completely.
Fasten the hook and loop sewn along the top, outside of
the Quarter Window and the inside of the top fl ap. Then
fasten the hook and loop sewn along the rear of the
Quarter Window.

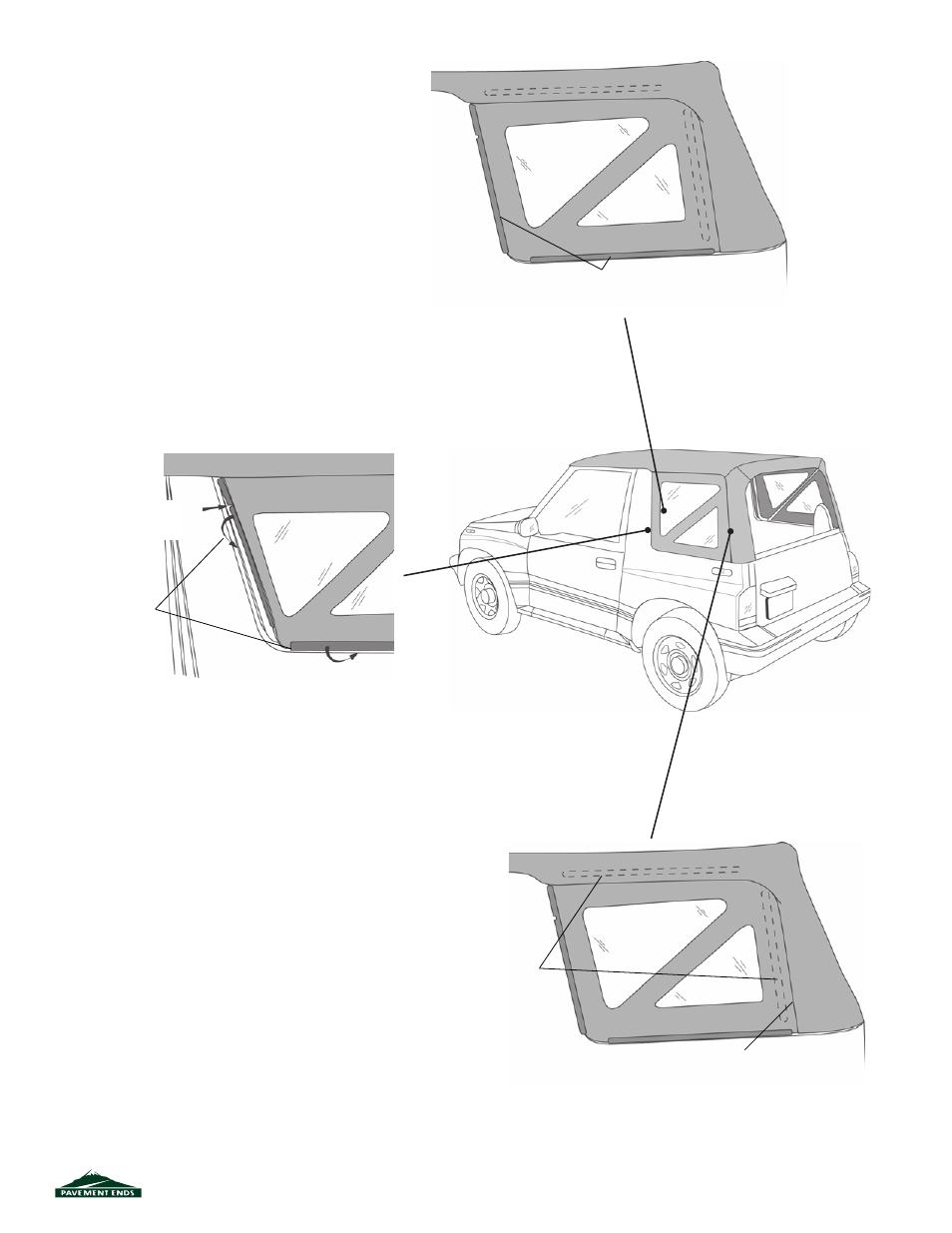

Start Zipper - Zip
to top rear corner
Quarter Window - Orient with
plastic to front and bottom
Fit the notch in plastic
strip around stop in
retainer
Slip plastic strip into
retainer along front
and bottom of Quar-
ter Window
Close Zipper
Completely
Fasten Hook
and Loop
