10. The generator's frequency meter (Figure 45) displays
the 60 cycle output frequency in HERTZ.
Figure 46. Voltage Meter (Volts)
11. The generator's voltage meter (Figure 46) displays the
120 VAC in VOLTS. If the voltage is not within the
specified frequency tolerance, use the voltage
adjustment control knob (Figure 47) to increase or
decrease the desired voltage.
Figure 40. Voltage Selection Switch
4. Close all engine enclosure doors (Figure 39).
Figure 39. Engine Enclosure Doors

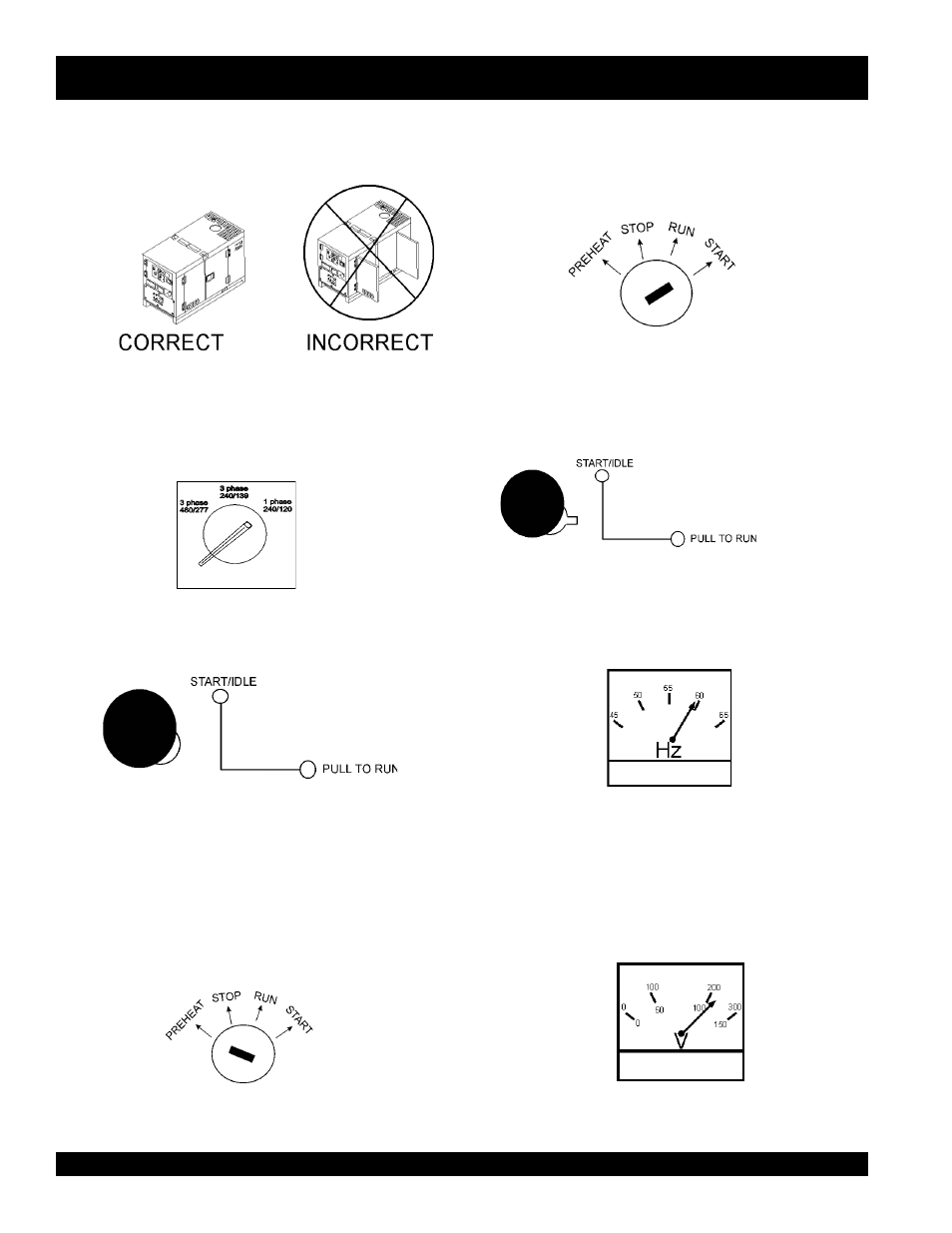

DCA-60SSAI — GENERATOR START-UP PROCEDURE
5. Check the voltage selection switch (Figure 40) is
at the desired voltage.
6. Check to see if the engine throttle lever (Figure
41) is pushed in.
7. Turn the starter switch to ‘PREHEAT’ (Figure 42)
until the indicator light turns on. The oil pressure
indicator light will initially turn on, but should turn off
once the pressure rises.
8. Once the preheat indicator lights, turn the key to
‘START’ (Figure 43). After the engine cranks,
release the key to ‘RUN’.
Figure 41. Engine Throttle Lever
Figure 42. Key Switch (Preheat)
Figure 43. Starter Switch (Start)
Figure 45. Frequency Meter (Hz)
9. Pull the engine throttle lever and turn left until the
lever sets on the knob (Figure 44).
Figure 44. Engine Throttle Lever (Up)
