DCA-60SSAI — PARTS AND OPERATION MANUAL— FINAL COPY (09/15/01) — PAGE 39
Voltage Selector Switch- Single Phase 240/120V
Position
The following are additional voltages available when the volt-
age selector switch is in the ‘single phase 240/120V’ posi-
tion.
Single Phase, 240 Volt
This setting can provide single phase power at 240 volts.
After hooking up the hard wires to the lugs as shown in
Figure 30, 240 volts can be obtained with the voltage regula-
tor knob turned to fine tune.
Single Phase: 120 Volt
This setting can provide single phase power at 120 volts.
After hooking up the hard wires to the lugs as shown in
Figure 31, 120 volts can be obtained with the voltage regula-
tor knob turned to fine tune.

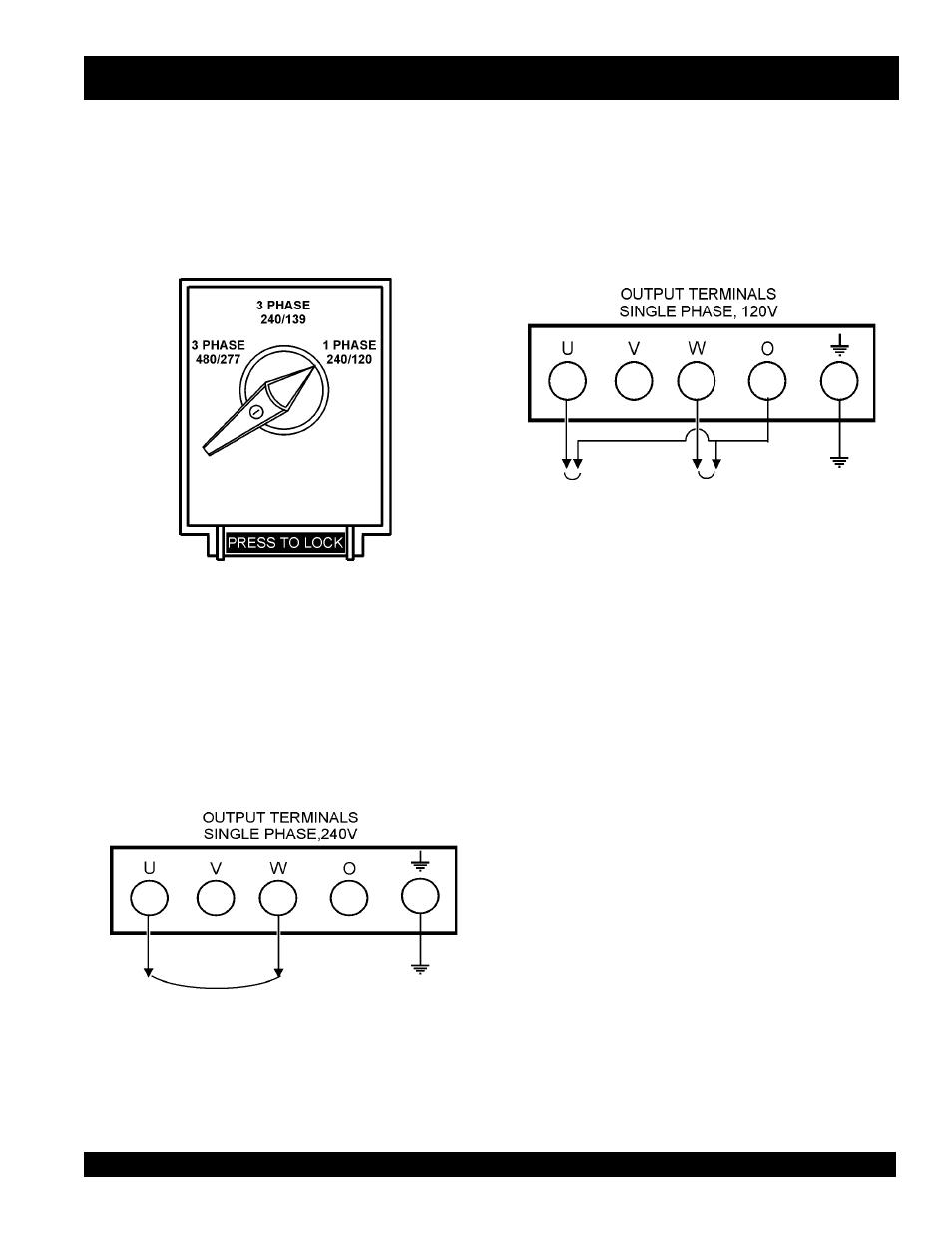

Figure 29. Voltage Selector Switch 240/120V Single Phase
Position
Figure 30. Hard Wire Hookup for Single Phase 240 volt
Figure 31. Hard Wire Hookup for Single Phase, 120 volt
DCA-60SSAI — OUTPUT VOLTAGE SETUP
