DCA-60SSAI — PARTS AND OPERATION MANUAL— FINAL COPY (09/15/01) — PAGE 47

WARNING:

Before Starting

Engine

1. Check the lubricating oil level prior to starting the engine.

Make sure the generator is level. The oil level must be
maintained between two notches on the dipstick.

2. When there is not enough lubricating oil, fill the crankcase

with high grade motor oil. Use a high quality detergent
oil classified CC or higher (See Table 11 on page 43).

3. Check the coolant level in the radiator and subtank.

Replenish with antifreeze as necessary. Always maintain
the coolant level between the FULL and LOW markings
on the coolant container. Be sure that the radiator cap is
fastened securely.

4. Check the fuel level on the fuel gauge. If fuel is low, fill

the fuel tank with clean fresh unleaded automotive diesel.
If diesel spillage occurs, completely wipe up the spilled
fuel immediately.

Before Starting

Generator and Control Panel

CAUTION:

Be sure to disconnect the

electrical load and switch the main, load

main, load

main, load and G.F

G.F

G.F.C

.C.I.

.I.

circuit breakers (Figure 12) to the “OFF” position prior to
starting the engine.

NEVER start the engine with the
main,

main,

main, GFCI

GFCI

GFCI or load

load

load circuit breakers

in the ON position.

The engine's exhaust contains harmful
emissions. A L

A L

A LW

AY S

Y S

Y S ventilate the

exhaust when operating inside tunnels,
excavations or buildings. Direct exhaust
away from nearby personnel.

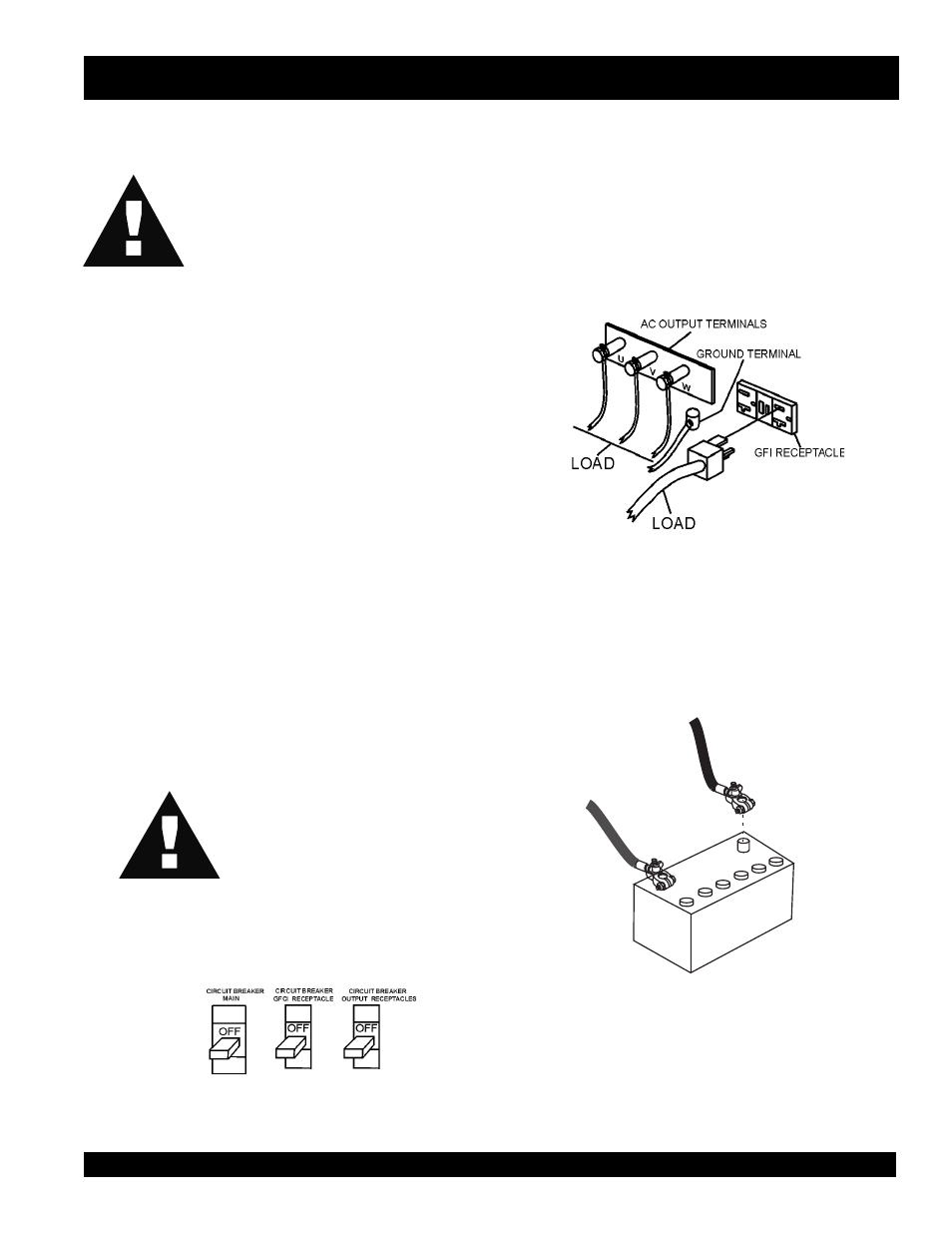

Figure 36. Main, GFCI and

Load Circuit Breakers

DCA-60SSAI — GENERATOR START-UP PROCEDURE

2. Connect the load to the UVW terminals as shown in

Figure 37. These terminals can be found on the output
terminal panel, (see page 22 Figure 6). To gain access
to the output terminals lift the UVW cover. Tighten
terminal nuts securely to prevent load wires from slipping
out.

Figure 37. UVW Terminal Lugs (Load)

NEGA

TIVE

POSTIVE

BATTER

3. Connect the negative battery cable (BLACK) to the

negative post on the battery (Figure 38).

Figure 38. Battery Connections
