DCA70SSIU 50 HZ GENERATOR • OPERATION AND PARTS MANUAL — REV. #1 (01/06/09) — PAGE 13

DIMENSIONS

Dimensions

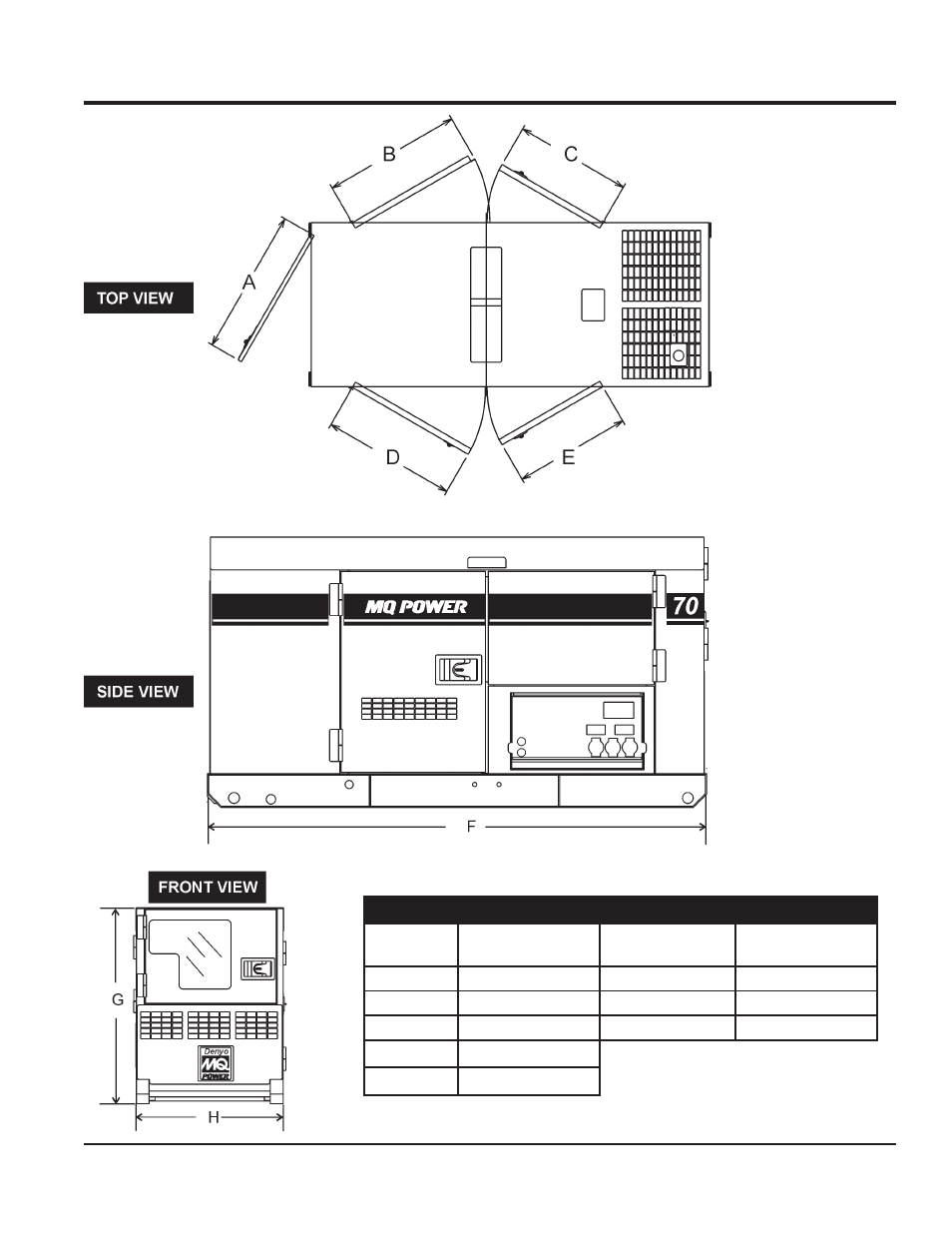

Figure 1.

Dimensions

Table 3.

Reference

Letter

Dimension in. (mm)

Reference Letter

Dimension in. (mm)

A

30.31 in. (770 mm.)

F

94.48 in. (2,400 mm.)

B

29.52 in. (750 mm.)

G

55.11 in. (1,400 mm.)

C

35.82 in. (910 mm.)

H

35.43 in. (900 mm.)

D

29.52 in. (750 mm.)

E

35.82 in. (910 mm.)
