page 56 — dCa20spxu2 servpro ® • operation and parts manual — rev. #0 (09/23/13)

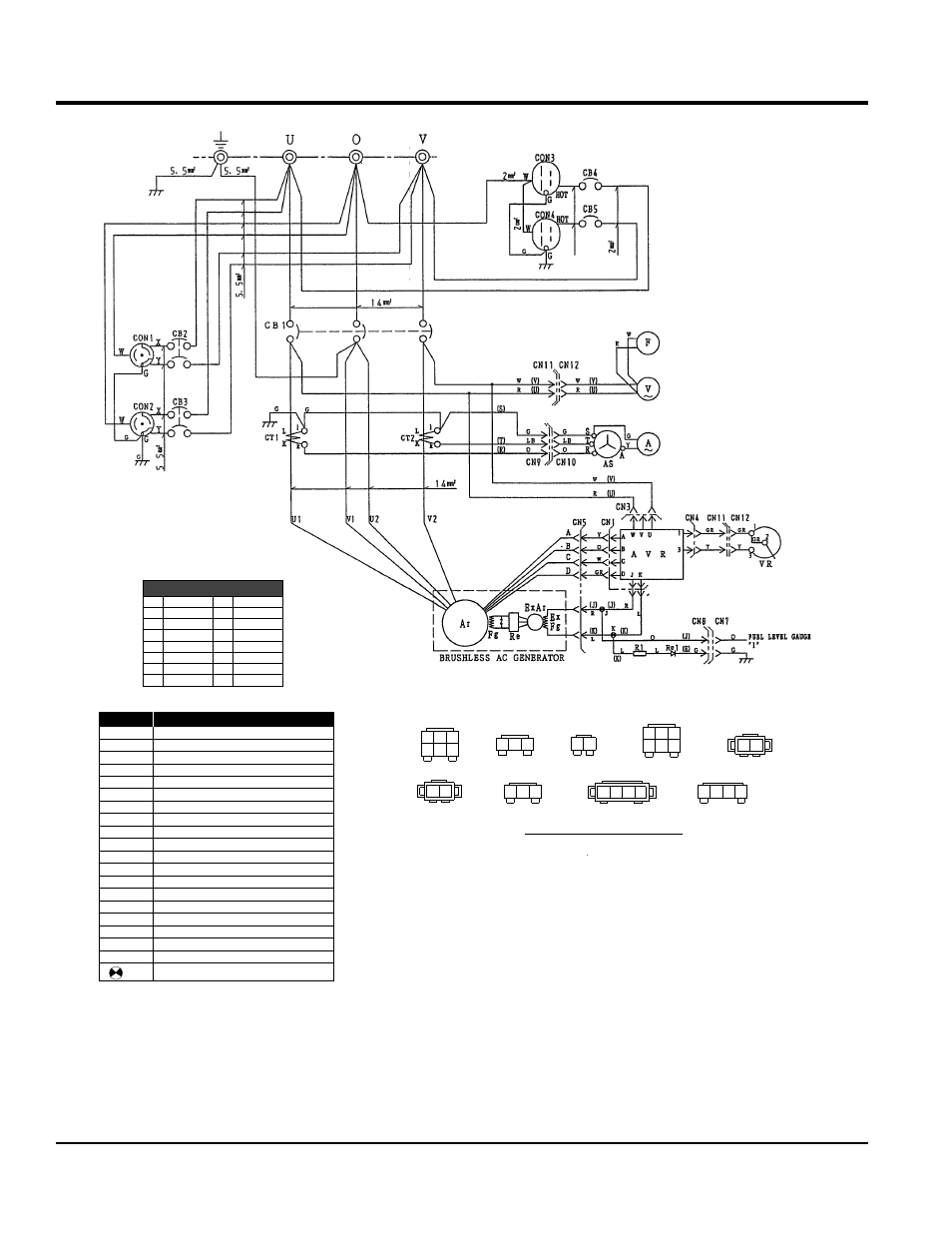

generatOr Wiring DiagraM
Ar
Fg
ExAr
ExFg
AVR
VR
Re
AS
Re1
R1
CT 1,2
F
A
V
MAIN GENERATOR ARMATURE WINDING
MAIN GENERATOR FIELD WINDING
EXCITER ARMATURE WINDING
EXCITER FIELD WINDING
RECTIFIER
AUTOMATIC VOLTAGE REGULATOR
VOLTAGE REGULATOR (RHEOSTAT)
CURRENT TRANSFORMER
CHANGE-OVER SWITCH,AMMETER
AC.AMMETER
AC.VOLTMETER
FREQUENCY METER
CIRCUIT BREAKER
CIRCUIT BREAKER
CIRCUIT BREAKER
RECEPTACLE
RECEPTACLE
RESISTOR
RECTIFIER
RELAY UNIT
CB2,3
CON1, 2
2 1
CN1 CN4
A J C
D K B
3
3
1 2
CONNECTER ARRANGEMENT
(WIRING VIEW)
1 2
CN7 J E
1. With no designation use KIV1 : 1.25 mm
lead of designated color.
2
Notice:
J, K
SYMBOL DESIGNATION
3 2 1
U V CN3
2 1
CN8 E J
3 2 1
R S T CN10 3 1 V U
1 2 3 4
CN12
2 3
CN5
C J A
B K D
1
CN11
3 2 4
3 1 V U
1
B
L
G
V
P
R
W
Y
O
BR
GR
LB
LG
WIRE COLOR
BLACK
BLUE
BROWN
GREEN
GRAY
VIOLET
PINK
ORANGE
LIGHT GREEN
LIGHT BLUE
YELLOW
WHITE
RED
WIRE COLOR
COLOR CODE
CON3,4
