DCa20SPxu2 SERVPRO ® • operation and parts manual — rev. #0 (09/23/13) — page 17
generatOr MajOr cOMpOnents
AUTO MANUAL OFF/RESET LOW OIL PRESSURE
HIGH COOLANT TEMPERATURE
OVERCRANK
OVERSPEED
ENGINE RUNNING
MOOOOO-20001Q
11
U O V
U O V
5 6
Like it never even happened. R
SERVPRO R
SENS
Like it never even happened. R
1
2
3 4
8
7
9 10
13
12
14

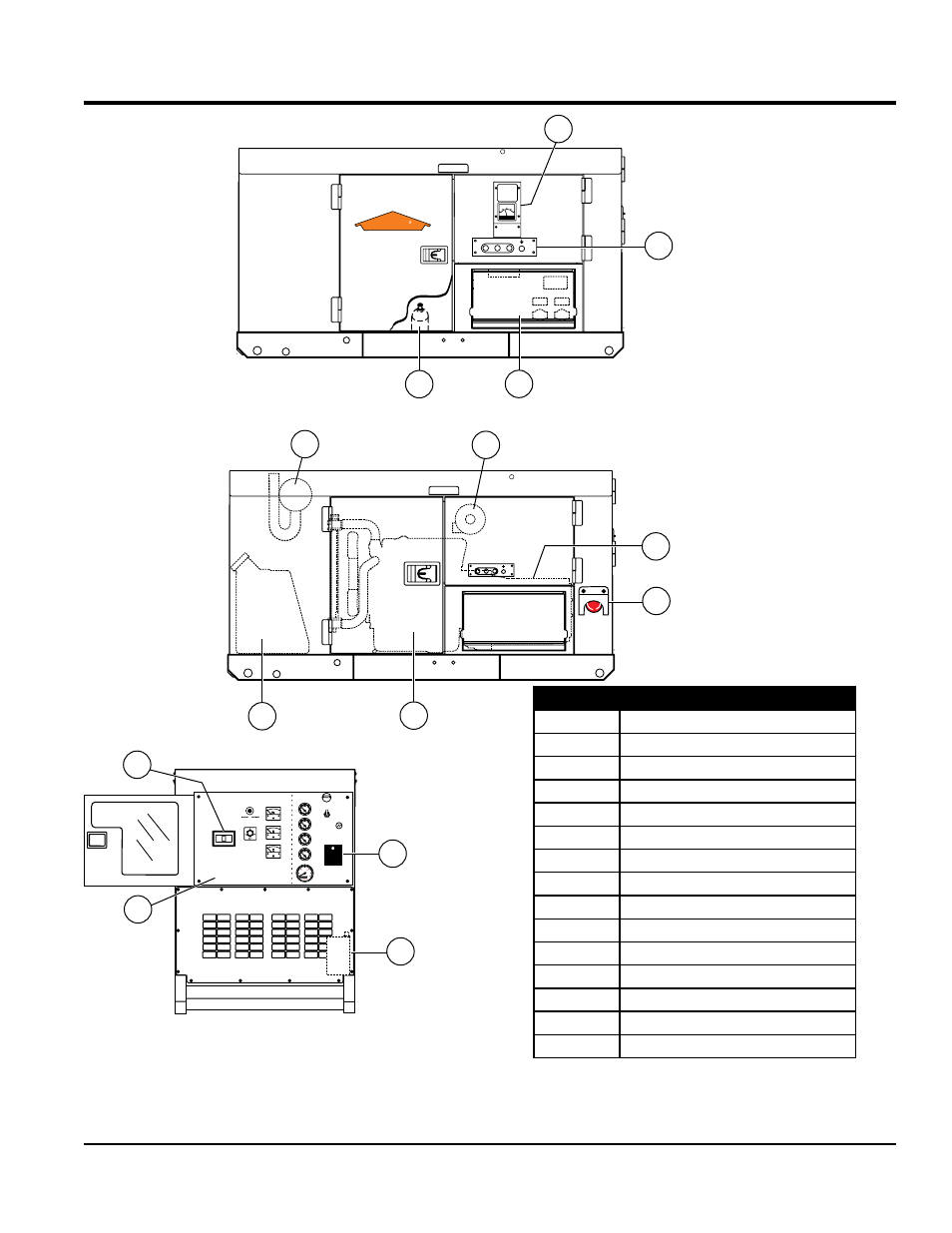

Figure 3. Major Components
table 5. generator major Components
item no. desCription
1 Battery Charger
2 Output Terminal Lugs
3 Output Receptacles Assembly
4 Jacket Water Heater Assembly
5 Muffler Assembly
6 Air Filter Assembly
7 Generator Assembly
8 Emergency Stop Switch Assembly
9 Engine/Radiator Assembly
10 Fuel Tank Assembly
11 Circuit Breaker Assembly
12 Engine Control Panel Assembly
13 Battery Assembly
14 Generator Control Panel Assembly
