PagE 22 — DCa20SPxu2 SERVPRO ® • operation and parts manual — rev. #0 (09/23/13)
Output terMinaL paneL faMiLiarizatiOn
output terminal panel

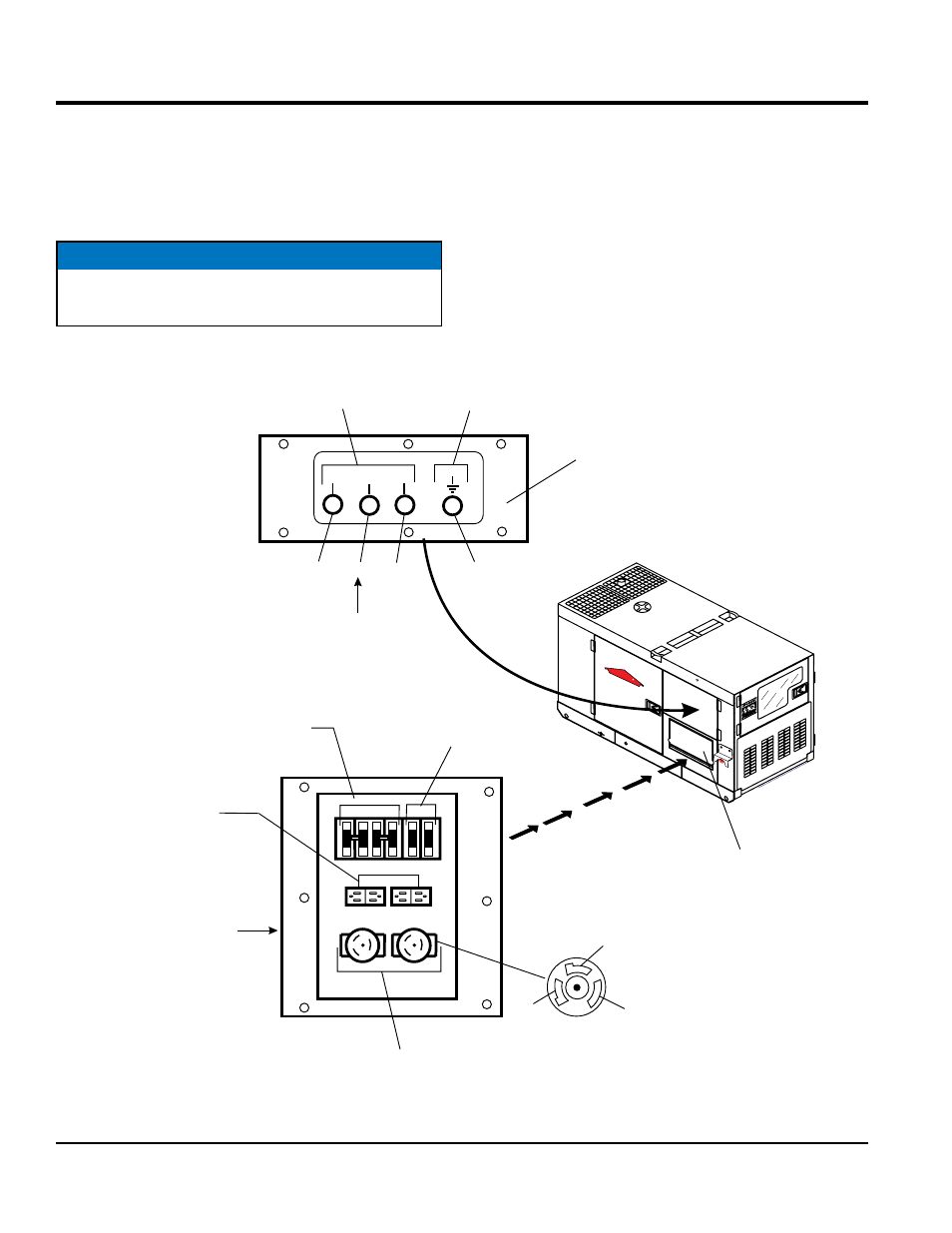

The Output Terminal Panel (Figure 7) shown below is
located on the right-hand side (left from control panel) of
the generator. Lift the terminal cover to gain access to
receptacles and circuit breakers.
NOTICE
Terminal legs “O” and “Ground” are considered bonded
grounds.
output terminal Familiarization
The “Output Terminal Panel ” (Figure 7) is provided with
the following:
„ Two 120/240V output receptacles @ 50 amp
„ Two Circuit Breakers @ 50 amps
„ Two 120V GFCI receptacles @ 20 amp
„ Two GFCI Circuit Breakers @ 20 amps
„ Four Output Terminal Lugs (U, O, V, and Ground)
AUX. POWER RECEPTACLES
120/240V, 50 AMPS
120 VAC, 20 AMP
GFCI RECEPTACLES
Y
X
W
CS-6369
TWIST-LOCK
CIRCUIT BREAKERS
FOR GFCI RECEPTACLES
RECEPTACLE
AND
CIRCUIT BREAKER
PANEL
ACCESS DOOR
LIFT TO OPEN
HARD WIRE
HOOKUP PANEL
U O V
BLACK RED WHITE GREEN
SINGLE PHASE
240 -120 VAC
OUTPUT TERMINALS
NEUTRAL
TERMINAL
GROUND
TERMINAL
CIRCUIT BREAKERS
FOR CS-6369 TWIST
LOCK RECEPTACLES
Like it never even happened.
R
SER VPR
O R
Figure 7. Output Terminal Panel
