FLeXSHaFTS/VIBRaTOR HeaDS • OpeRaTIOn anD paRTS manuaL — ReV. #0 (07/16/10) — page 17

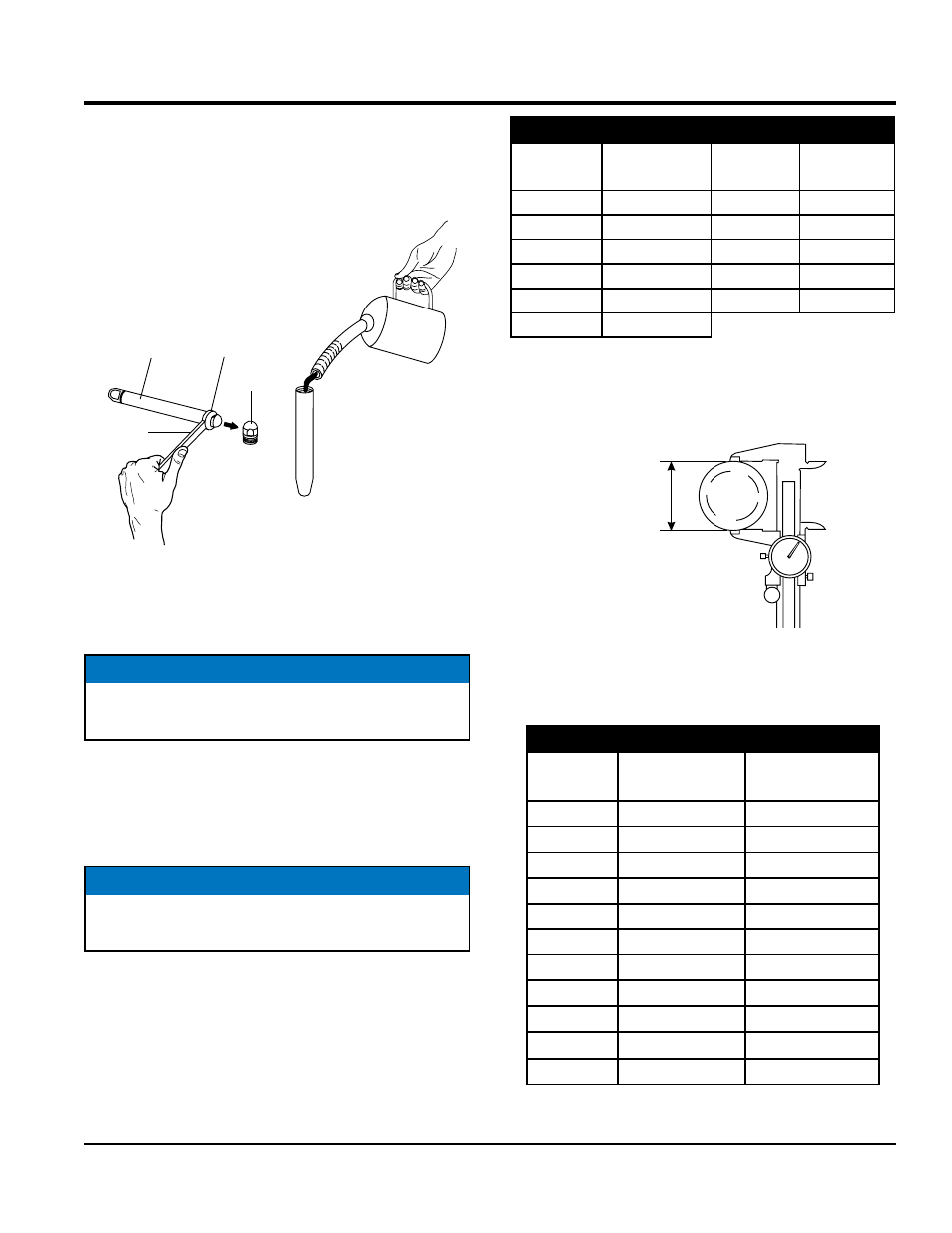

VIBRaTOR HeaD LuBRICaTIOn (300 HOuRS)
1. Using a wrench, remove vibrator tip (Figure 9) from
vibrator head body. Have a cloth handy to catch any
spilled oil.
Figure 9. Adding Oil (Vibrator Head)
2. Drain old oil from vibrator head body (casing). Place
oil in a suitable container. DO nOT pour oil on the
ground.
3. Fill vibrator head body with SAE 15 or AW MV ISO 46
type oil or equivalent.
4. DO nOT fill head body beyond capacity. Reference
Table 6.
VIBRATOR
HEAD OIL
VIBRATOR
HEAD
WRENCH
TIP
RIGHT-HAND
THREADS
NOTICE
Dispose used vibrator head oil in accordance with city,
local and state environmental guidlelines.
NOTICE
DO nOT overfill. Too much oil in the vibrator head will
overload the drive motor.
Maintenance
VIBRaTOR HeaD WeaR (300 HOuRS)
1. Periodically measure the outside diameter (Figure 10)
of the vibrator head casing.
Figure 10. Vibrator Head Diameter
2. Replace vibrator head if it is not within minimum wear
tolarances as specified in Table 7.
Table 6. Vibrator Head Oil Capacity
Vibrating
HD. model
Oil Capacity.
oz. (ml)#
Vibrating
HD. model
Oil Capacity.
oz. (ml)#
900HD 0.5 (15) 2600HD 1.5 (44)
1000HD 0.5 (15) RVH188 N/A
1300HD 0.5 (15) RVH250 N/A
1400HD 0.5 (15) RVH275S N/A
1700HD 0.75 (22) RVH275 N/A
2100HD 1 (30)
VIBRATOR HEAD
CASING DIAMETER
Table 7. Vibrator Head Wear Diameter
Vibrating
HD. model
Vibrator HD. new
Dia. in. (mm)#
Vibrator HD. min
Wear Dia. in. (mm)
900HD 7 /
8
(22.22) 13 /
16
(20.62)
1000HD 1 1 /
16
(26.98) 1 (25.4)
1300HD 1 3 /
8
(34.92) 1 1 /
4
(31.75)
1400HD 1 3 /
8
(34.92) 1 1 /
4
(31.75)
1700HD 1 11 /
16
(42.86) 1 9 /
16
(39.67)
2100HD 2 1 /
8
(53.97) 1 7 /
8
(47.62)
2600HD 2 5 /
8
(66.67) 2 1 /
4
(57.15)
RVH188 N/A N/A
RVH250 N/A N/A
RVH275S N/A N/A
RVH275 N/A N/A
