FLeXSHaFTS/VIBRaTOR HeaDS • OpeRaTIOn anD paRTS manuaL — ReV. #0 (07/16/10) — page 13
setup
aTTaCHIng VIBRaTIng HeaD TO FLeX-SHaFT
1. Locate approiate coupler and spindle for desired flex-
shaft. Reference Figure 3.
2. Apply a ring of anaerobic sealant (Loctite™ No. 271)
to flexshaft threads as shown in Figure 3.

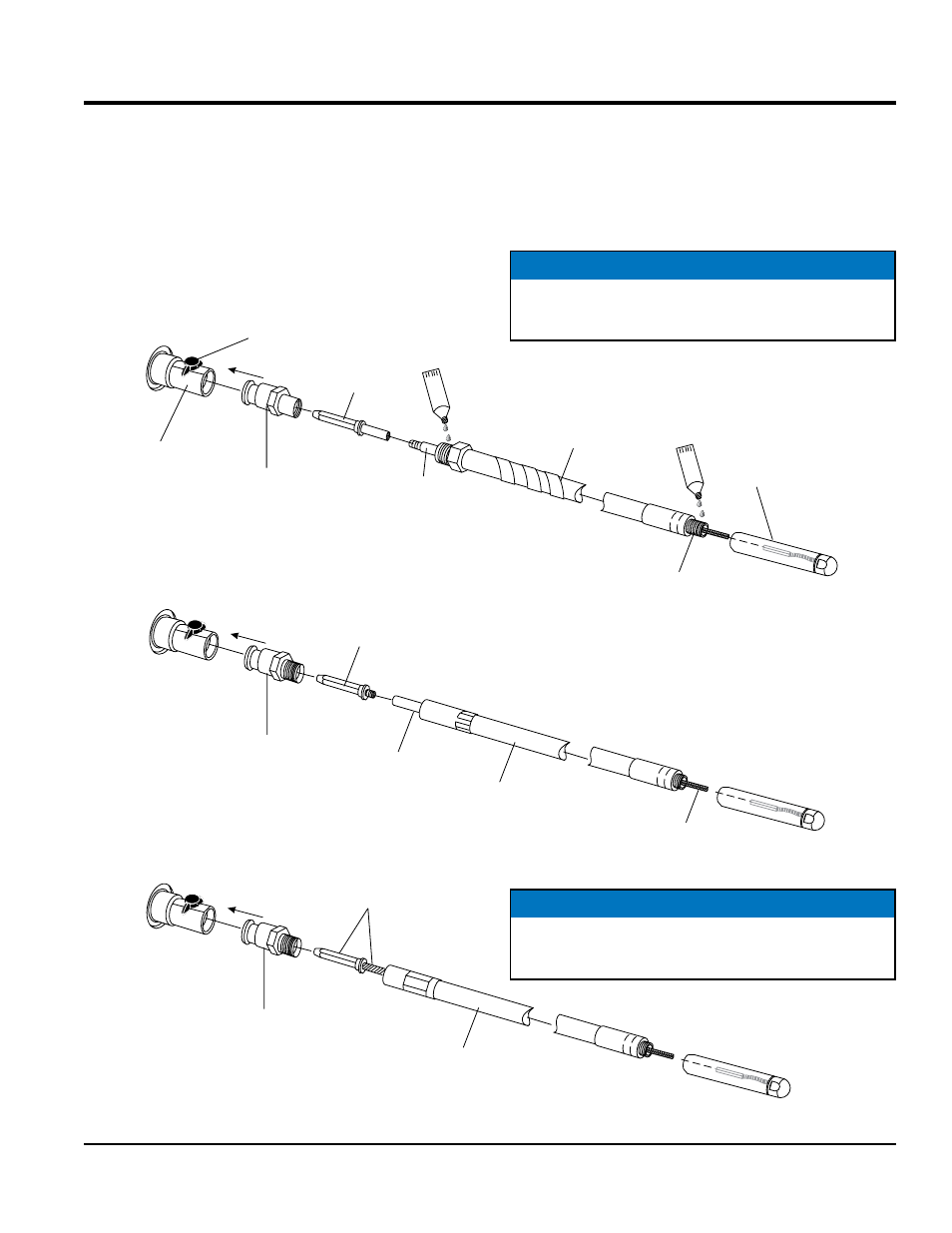

Figure 3. Attaching Vibrating Head to Flexshaft
3. Insert coupler and spindle into flexshaft as shown in
Figure 3.
4. Attach vibrator head onto flexshaft as shown in Figure 3.
5. Use a wrench and tighten vibrator head securely to
flexshaft/ Threads are left-handed..
NOTICE
All flexshaft cores have been lubricated (greased) at
the factory and are ready. for use.
SPINDLE
MALE
(
)
P/N 90004-01
QUICK
DISCONNECT
COUPLER
(MALE)
P/N 9004-04
382V SERIES
FLEXIBLE
SHAFT
QUICK
DISCONNECT
KNOB
SPINDLE
(FEMALE)
P/N 90004-003
QUICK
DISCONNECT
COUPLER
(FEMALE)
P/N 90004-05
314V SERIES
FLEXIBLE
SHAFT
VIBRATOR
HEAD
MALE
FEMALE
QUICK
DISCONNECT
COUPLER
(MALE)
P/N A781131311
FS SERIES
FLEXIBLE
SHAFT
SPINDLE AND
CORE ARE ATTACHED
(1 PIECE)
MOTOR
END
LOCTITE™271
PIP
E
T
HREAD
LEFT-HAND
THREADS
CORE
LOCTITE™271
PIP
E
T
HREAD
NOTICE
FS series flexshafts do not require a spindle. Spindle
is permantey attached to the wire core
