page 14 — FLeXSHaFTS/VIBRaTOR HeaDS • OpeRaTIOn anD paRTS manuaL — ReV. #0 (07/16/10)
aTTaCHIng FLeXSHaFT TO DRIVe mOTOR
1. Pull upward on drive motor quick disconnect knob.
Insert coupler-end of flext-shaft into drive motor
housing. Reference Figure 4.
2. Make sure flexshaft has been seated securely. Release
drive motor quick disconnect knob.

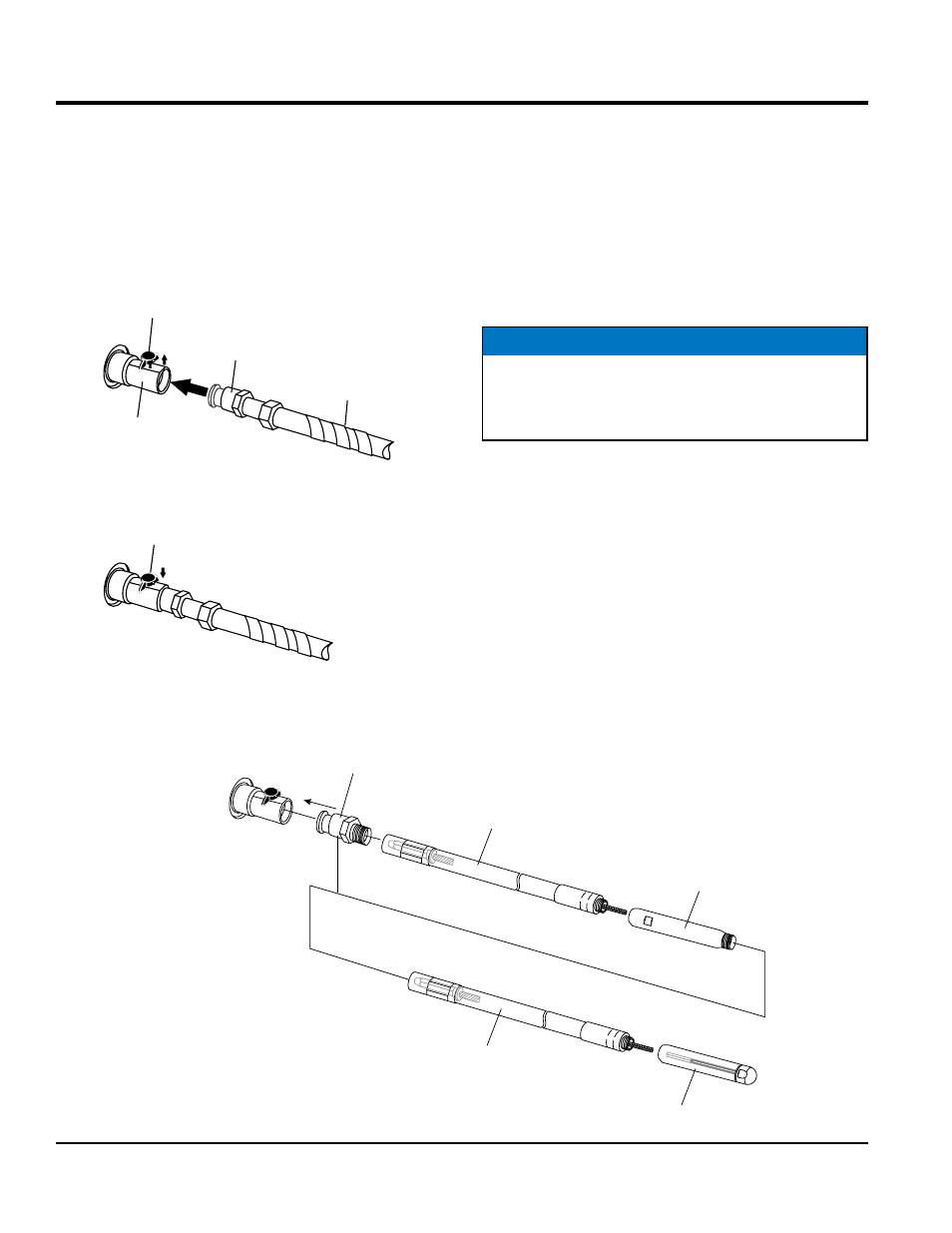

Figure 4. QD Coupler Connection
QUICK
DISCONNECT
KNOB (PULL)
QUICK
DISCONNECT
COUPLER
DRIVE
MOTOR
END
FLEX-SHAFT
QUICK
DISCONNECT
KNOB (RELEASE)
setup
InSTaLLIng FSC SHaFT COupLeR
The FSC shaft coupler allows for the extension of the FS-
Series flex-shafts. Maximum extension length shall not
exceed 35 ft (10.6 meters).
This shaft extension coupler is only to be used on FS series
shafts.
DO nOT use the FSC shaft coupler on the 314V
or 382V flex-shafts.
1. Install FSC shaft coupler as shown in Figure 5.
2. Apply anaerobic sealant as required. Tighten FSC
coupler securely.
NOTICE
All FS-Series flexible shafts are supplied with a quick
disconnect (QD) coupler. This coupler is not required
for flex shaft extenstion.
QUICK
DISCONNECT
COUPLER
FS21
FLEXIBLE SHAFT
(21 FT./6.4 M)
FS14
FLEXIBLE SHAFT
(14 FT./4.3 M)
VIBRATING
HEAD
FSC
COUPLER
TOTAL LENGTH = 35 FT. (10.6 METERS)
Figure 5. FSC Coupler Installation
