C-4 FINISHER TROWEL — OPERATION
Pitching The Blades.
Quick Pitch Handle
1. To pitch the blades upwards using the "Quick Pitch ™"
handle , (Figure 18) simply squeeze the trigger lock
and pull the handle towards the operator. Pushing the
handle towards the engine will cause the blades to lay
flat.

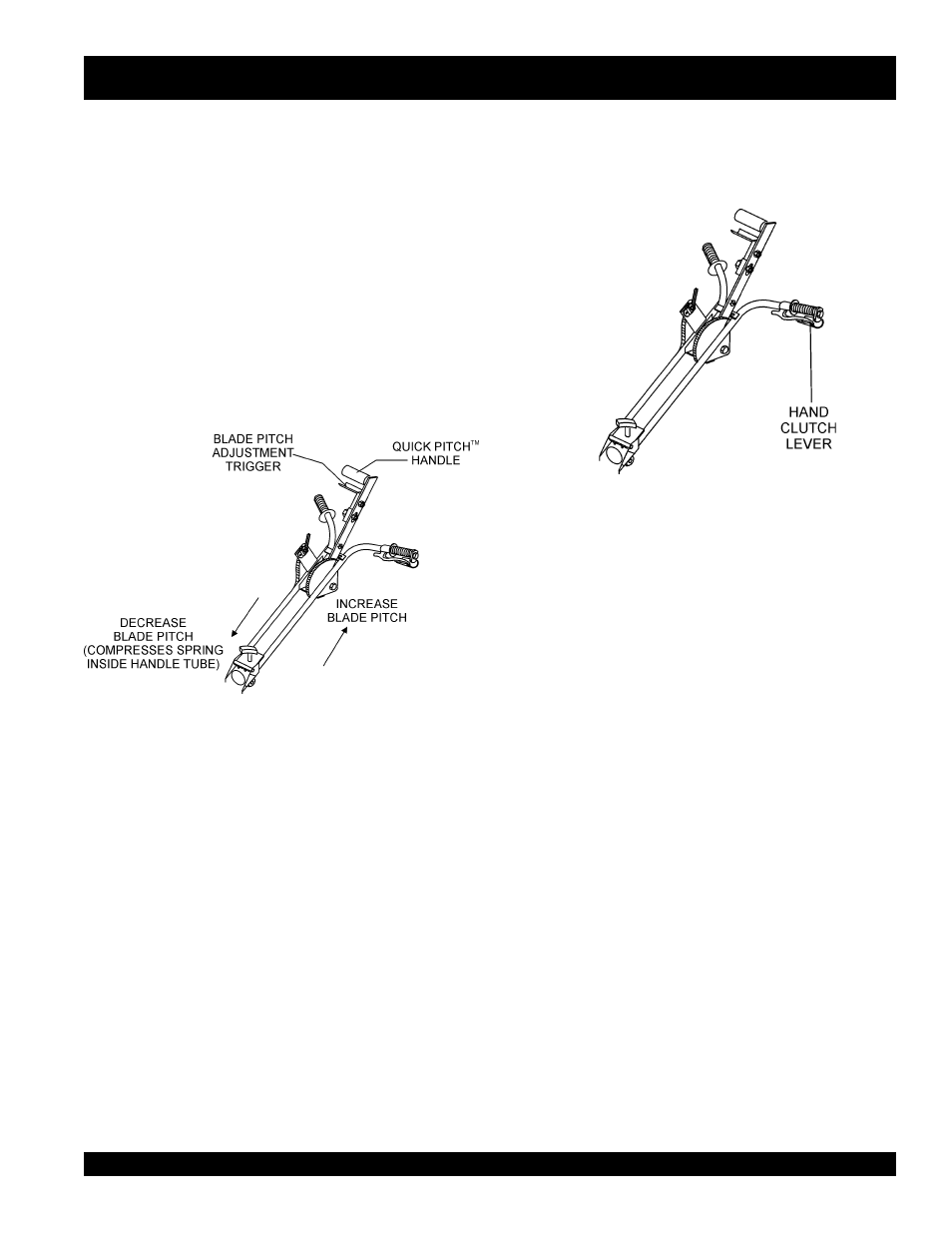

Figure 18. Quick Pitch™ Handle
2. To maneuver the trowel, gently lift up on or press down on the
main trowel handle. To move the machine to the operator’s
left,
lift up on the handle, to move machine to the right, push
down on the handle.
The following steps are intended as a basic guide to machine
operation, and are not to be considered a complete guide to
concrete finishing. We suggest that all operators (experienced
and novice) read “
Slabs on Grade” published by the American
Concrete Institute, Detroit, Michigan. Read the “Training”
section of this manual for more information.
Maneuvering the Trowel
1. Get into the operator’s position behind the handle. With a
secure foothold and a firm grasp on the handles slowly
increase the engine speed until the desired blade speed is
obtained.
If your trowel has a hand clutch (Figure 19), set your engine
speed with the throttle, then pull on the hand clutch lever to
start the blades turning. Adjust the blade speed after the hand
clutch is fully engaged.
Figure 19. Hand Clutch Lever
3. The best method for finishing concrete is to slowly walk
backwards (Figure 20) with the trowel, guiding the trowel
from side to side. This will cover all footprints on wet concrete.
4. Remember that if you let go of the trowel, just step away and
let the trowel come to a complete stop before trying to recover
the trowel.
