PAGE 44 — MAYCO LS300P CONCRETE PUMP • OPERATION MANUAL — REV. #0 (06/09/14)
Fuel Filter
1. Replace the secondary fuel filter (Figure 44) every 800
hours. Refer to your engine manual for specific details
to perform this operation.

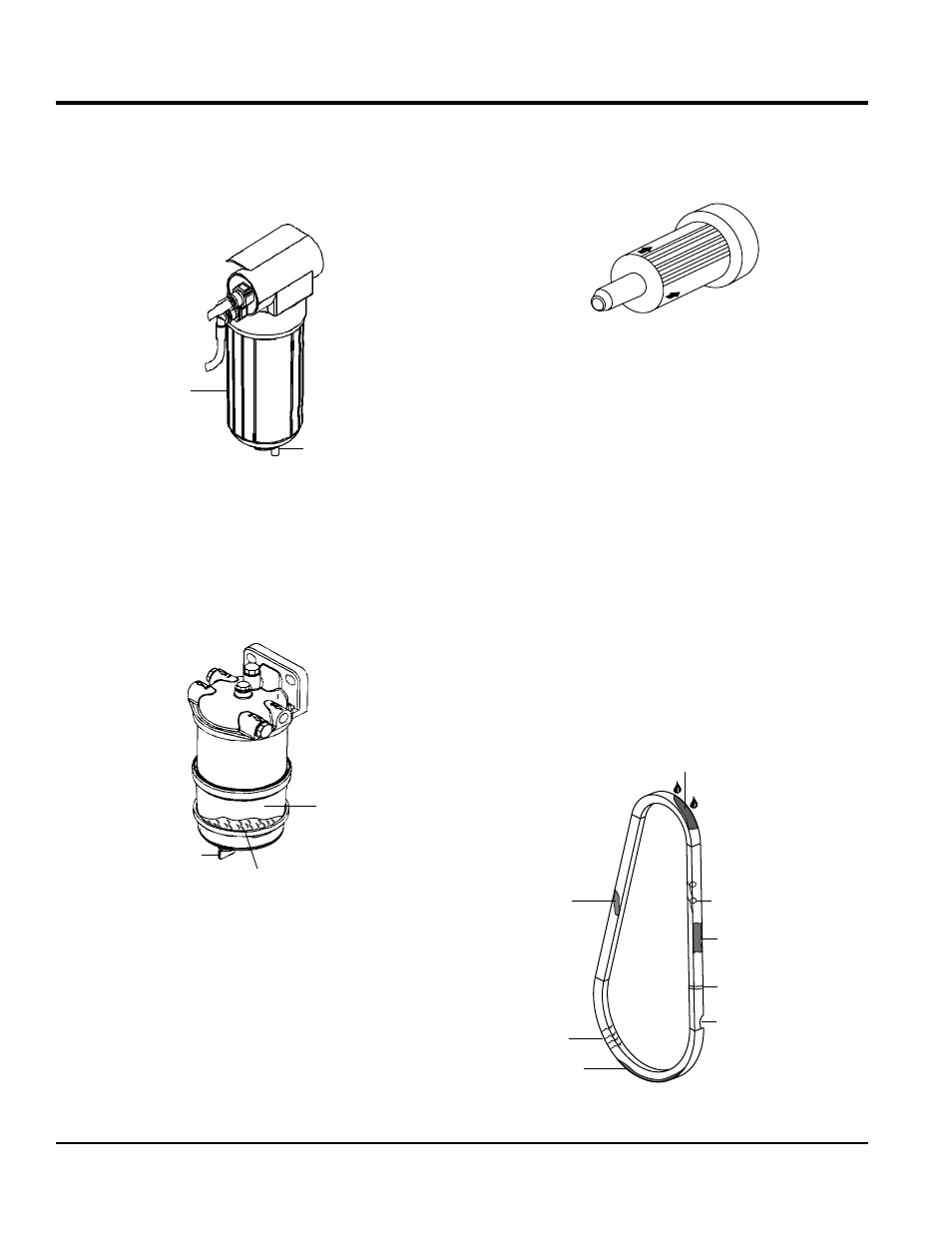

Figure 44. Fuel Filter
Fuel/Water Separator Primary Filter
1. Inspect the fuel filter water separator daily. If the fuel
filter/water separator (Figure 45) has collected a
significant amount of water and sediment at the bottom
of the cup, it should be drained off.
Figure 45. Fuel Water Separator
2. To remove water and sediment from the cup, place
any fuel valves to the OFF position and unscrew the
cup from the base.
3. Pour the contents of the cup into a safety container.
Rinse cup with a mild detergent and reattach cup to
base.
4. Return fuel valves to the ON position.
DRAIN
CUP
SEDIMENT
CUP
DRAIN
MAINTENANCE
In-Line Fuel Filter
Replace the engine in-line fuel filter (Figure 46) every year or
300 hours.
Figure 46. In-Line Fuel Filter
Oil And Fuel Lines
1. Check the oil and fuel lines and connections regularly
for leaks or damage. Repair or replace as necessary.
2. Replace the oil and fuel lines every two years to
maintain the line's performance and flexibility.
V-BELT
Visually examine the V-belt (Figure 47) and determine if it
is full of tiny cracks, frayed, has pieces of rubber missing,
is peeling or otherwise damaged.
Also, examine the belt and determine if it is
oil soaked or
" glazed " (hard shiny appearance on the sides of the belt).
Either of these two conditions can cause the belt to run hot,
which can weaken it and increase the danger of it breaking.
If the V-belt exhibits any of the above wear conditions
replace the V-belt immediately.
Figure 47. Drive Belt Inspection
GLAZED
OIL SOAKED
BROKEN
CORD FAILURE
CRACKS
MISSING RUBBER
SIDEWALL
WEAR
WORN BACK
COVER
