Remote Control Cable Operation (25 ft.)
The remote control cable (Figure 36) has the following
controls:
„ Pump ON/OFF – Starts and stops the forward pumping.
„ Pump REV – Starts pumping in reverse direction.
Connect the remote control cable (Figure 36) to the
receptacle labeled remote located on front of the digital
panel.

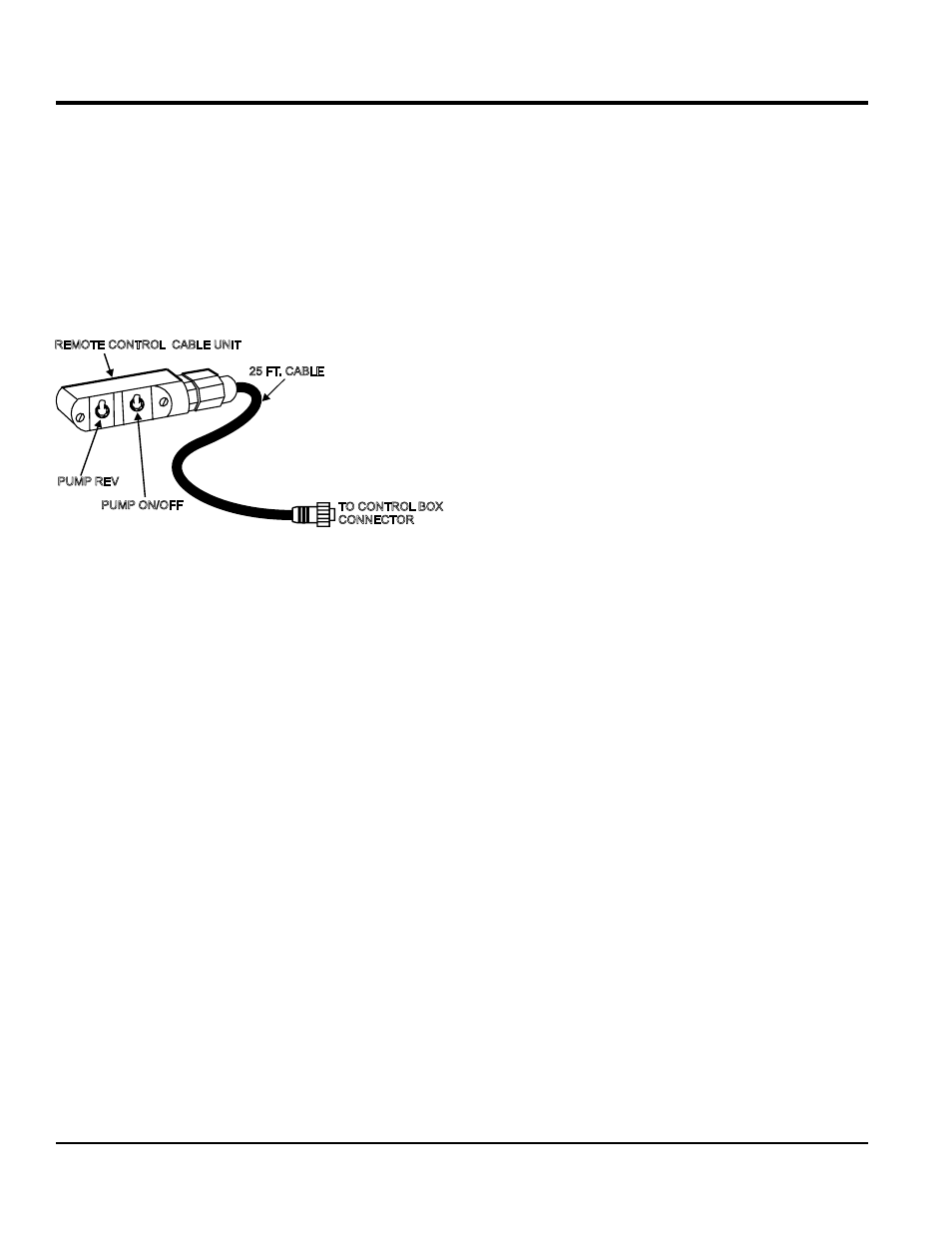

Figure 36. Remote Control Cable
Before the remote control cable can be used the pumping
volume rate must be set.
1. Start the pump as outlined in the pumping section of
this manual.
2. Place the pumping control switch in the LOCAL
position.
3. Using the momentary volume control switch, adjust
the pumping rate (volume) to the desired strokes per
minute.
4. Once the desired pumping rate has been achieved,
place the pumping control switch in the REMOTE
position.
REMOTE CONTROL CABLE UNIT
25 FT. CABLE
PUMP REV
PUMP ON/OFF TO CONTROL BOX
CONNECTOR
OPERATION
