Radio Remote Control Buttons Operation
Before the remote control hand-held module can be used,
the pumping control switch on the control box must be
placed in the REMOTE position (Figure 34).

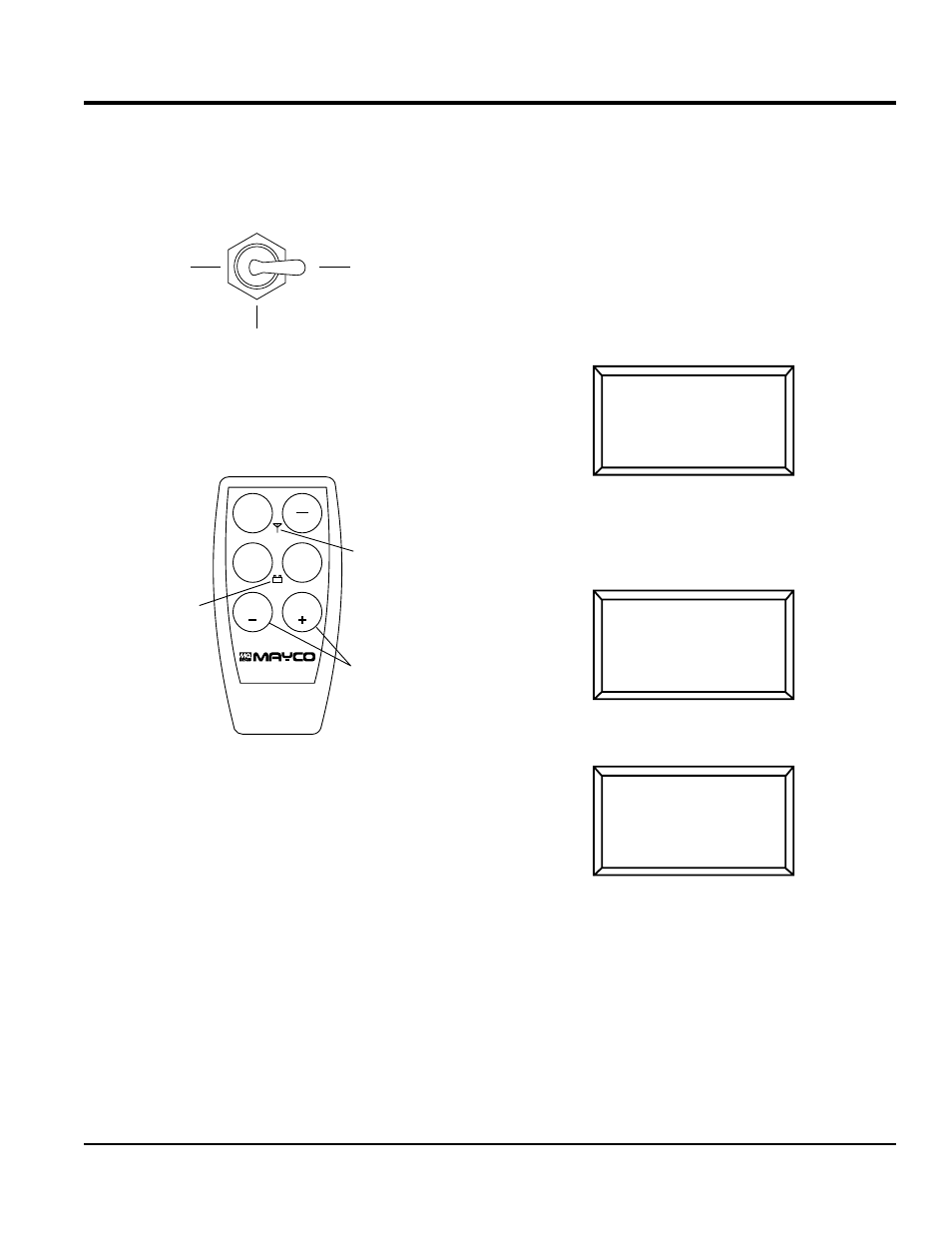

Figure 34. Pumping Control Switch (Remote)
Remote pumping operation can be performed by the hand-
held radio remote control module (Figure 35).
Figure 35. Radio Remote Control
The buttons on the hand-held remote control module have
the following functions:
„ ON/OFF – Turns the power on or off. When power is on
the power LED lights red. If the battery LED turns red,
9V battery needs to be replaced.
„ E-STOP – Turns off the pump completely in an
emergency.
LOCAL REMOTE
CENTER
OFF
E-STOP
ON
OFF
PUMP
REV
VOLUME VOLUME
PUMP
ON/OFF
POWER LED
NOTE: OLDER MODELS
MAY INDICATE
INSTEAD OF
FLOW
VOLUME
BATTERY LED
„ PUMP ON/OFF – Starts and stops the forward pumping.
„ PUMP REV – momentarily pumps in reverse direction.
„ VOLUME (+) – used to increase the pumping volume.
„ VOLUME (-) – used to decrease the pumping volume.
Radio Remote Control Programming
Before starting operation of the hand-held radio remote
control, go to Screen 9 of the digital readout screen:
Screen 9
1. Press the ON/OFF button on the radio (wireless)
remote control to turn on the power. Hold down the
RESET switch. The display will now show.
Screen 9
2. After 5 seconds, the display will show:
Screen 9
3. The hand-held remote control module is now ready
for use.
RADIO ADDRESS
NO RADIO
PRESS RESET TO
LEARN A NEW ONE
9
RADIO ADDRESS
NOW SCANNING
FOR NEW
TRANSMITTER
9
RADIO ADDRESS
COMMUNICATING
PRESS RESET TO
LEARN A NEW ONE
9
OPERATION
