page 58 — WBH16/WBH16e poWer Buggy (S/n 110401 & up) • operaTion and parTSmanual — rev. #0 (06/14/11)

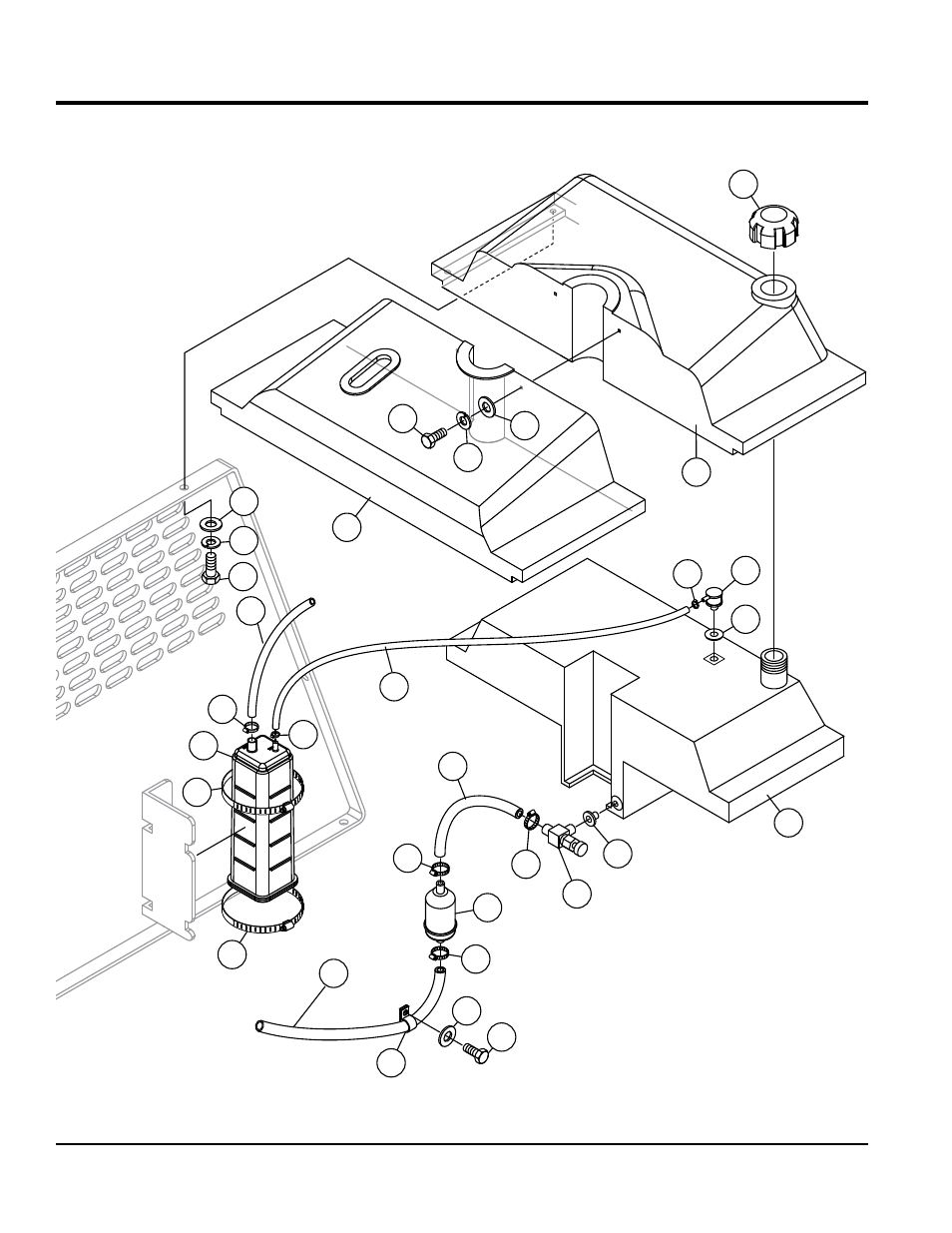

fuel assy.
Left Side
Engine Cover
1
1
2
2
3
3
5
7
9
10
11
12
11
14
1
24
15
17
16
18
19
20
21
25
22
23
23
20
7
7
7
TO ENGINE
AIR FILTER
TO ENGINE
CARBURETOR
1/4”
3/16”
5/16”
1/4”
