PAGE 30 —DRY PRIME PUMP — OPERATION MANUAL — REV. #3 (10/06/08)
MAINTENANCE (ENGINE)
Fuel Water Separator Filter
1. Inspect the fuel water separator (Figure 17) every 40
hours. If the fuel water separator requires maintenance
follow steps 2 and 3 below:
2. Open the drain plug on the fuel water separator (Figure
18) to remove any sediment or water that may have
accumulated in the fuel water separator reservoir.
3. After water and sediment and foreign debris has been
drained from the fuel water separator, reinstall the drain
plug on fuel water separator.

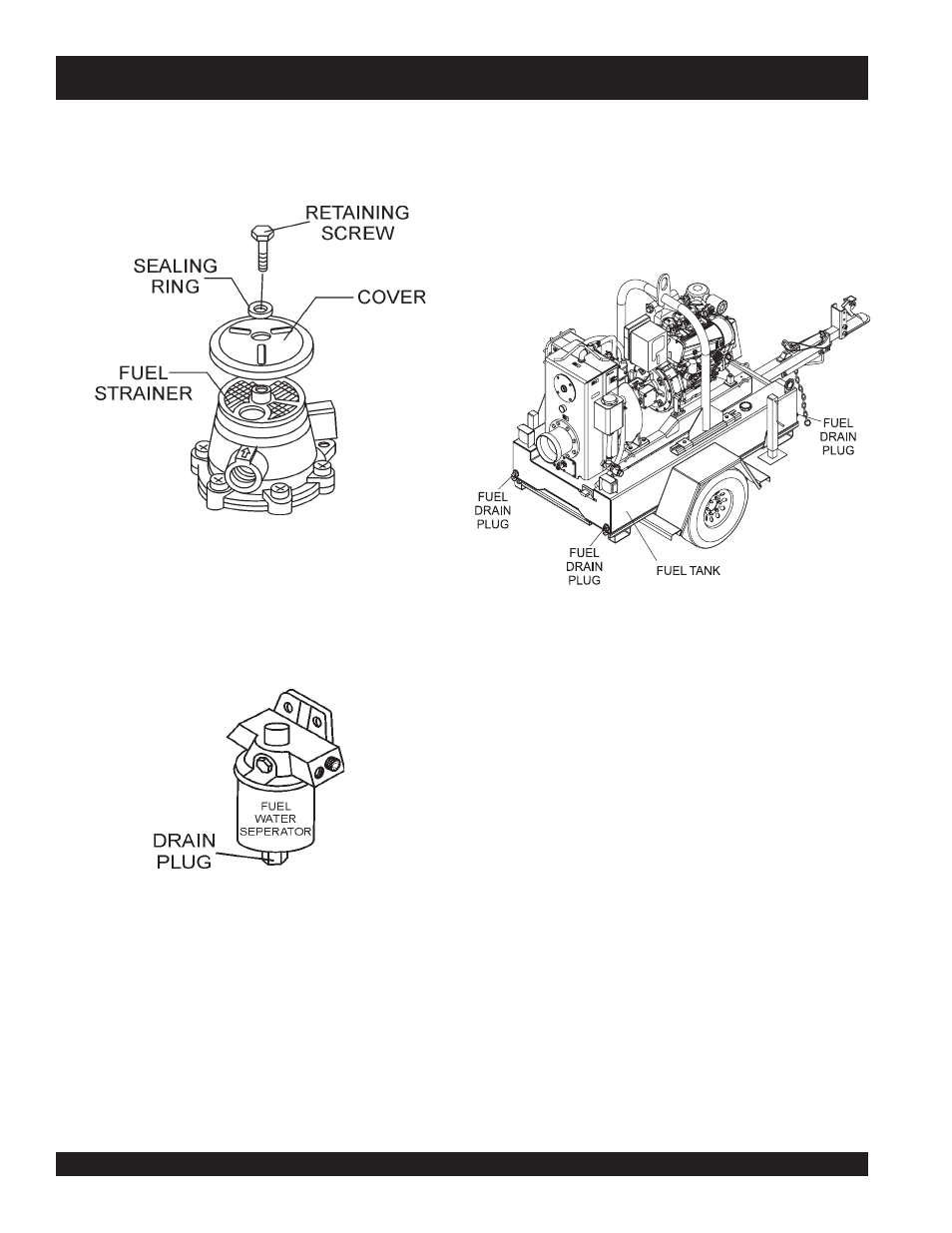

Figure 18. Fuel Tank/Drain Plug
Fuel Tank
Unscrew the fuel drain plug on the fuel tank (Figure 18) to
remove water and sediment every 500 hours. If the purity of
the fuel being used is of lesser quality drain the fuel tank
more frequently.
Figure 17. Fuel Water separator Filter
IMSA Fuel Filter
Inspect and clean (replace if necessary) the IMSA fuel filter
(Figure 16) every 500 hours. This filter is part of the fuel
pump.
Figure 16. IMSA Fuel Filter
