PAGE 26 —DRY PRIME PUMP — OPERATION MANUAL — REV. #3 (10/06/08)

1. The Dry Prime pump should begin pumping water within

a minute depending on the length of suction hose and
height the pump is above water.

Longer suction hoses will require
more time for the pump to begin
pumping water.

2. If pump does not begin to pump water after a few

minutes, check for loose connections or air leaks in
suction hose. Make sure there is water in the vacuum
system and strainer is not clogged with debris, reference
Pump Troubleshooting Flowchart.

NOTE

OPERATION

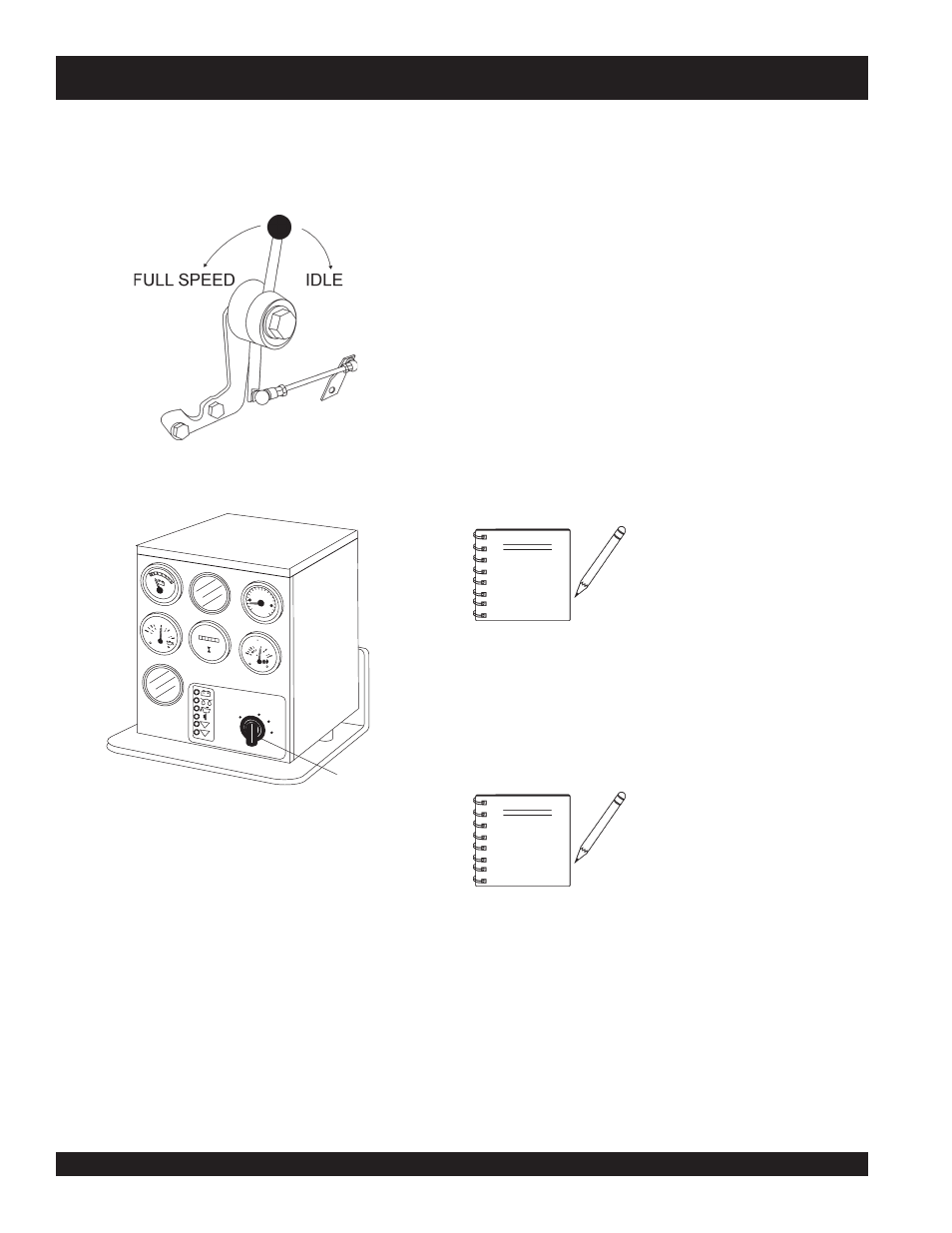

Figure 10. Speed Control Lever

Engine Control Box

4. Release engine start stop switch as soon as engine

starts, and verify that ignition switch automatically
returns back to the RUN position.

5. Verify that the battery charge and status LED indicator

lamps are OFF.

6. If battery charge indicator lamp remains lit, increase

engine speed until light goes off. When the charge
indicator light goes off, it can then be assumed that the
charging system is working correctly.

7. If the charge light remains on while the engine is running,

refer to Engine Troubleshooting or the Deutz Engine
Repair Manual.

8. If the AUX 1 status LED lamp is ON, stop engine and

check for broken or defective V-belt.

9. Move

speed control lever to full speed position for

maximum engine speed.

Figure 11. Ignition Switch

1. Turn engine start switch (see Figure 11) to the RUN

position, and verify that voltmeter gauge indicates 12
VDC.

2. Verify that the battery and status LED indicator lamps

are ON.

3. Continue turning the ignition key from the RUN position

to the START position.

Engine Startup

Speed Control Lever

1. Set the

Speed Control Lever (Figure 10) to a position

half way between start and stop.

Operation

If engine does not start, place
engine start/stop switch in OFF
position to reset. Wait 10 seconds
before restarting. Use hand fuel
pump to remove air from fuel return
line.

NOTE

VDO

x100

RPM

20

30

40

10

0

8

10 12

14

16

VDO

60

80

0

20

0

1

PSI

40

2

bar

3

4

5

VDO

260

300

120

200

50

90

120

150

C

F

VDO

0 0 0 2 5

5

QUARTZ

HOURS

OFF

RUN

START

AUTO START

(WHEN EQUIPP

ED)

I

II

III

0

P

AUX

1

AUX

2

ENGINE

ON/OFF

SWITCH
