PAGE 18 —DRY PRIME PUMP — OPERATION MANUAL — REV. #3 (10/06/08)

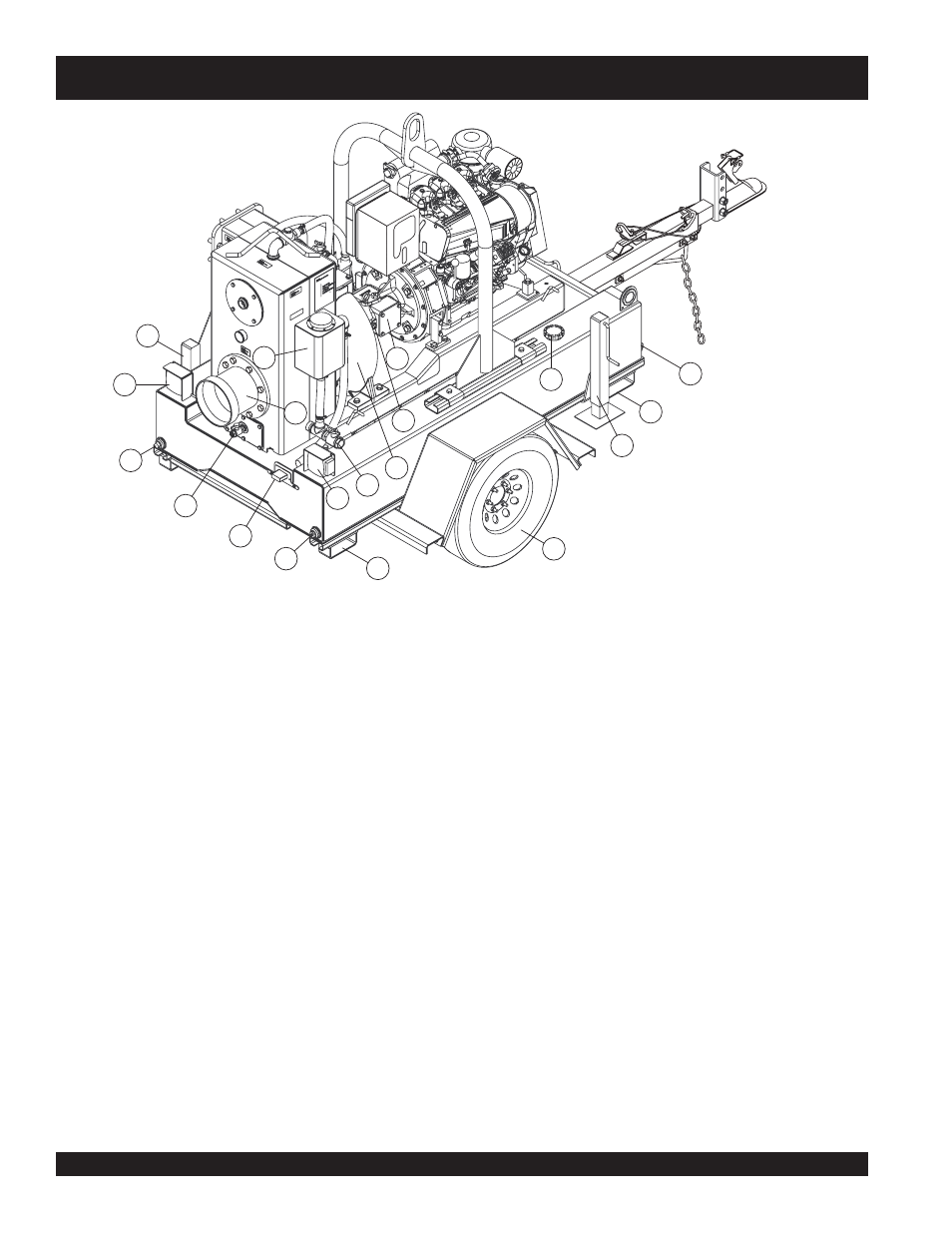

Figure 3-A. Pump

Components

PUMP COMPONENTS

Figure 3-A shows the location of the components of the Dry
Prime pump. The function of each component or control is
described below:

1.

Rear Fuel Tank Drain Plugs – Remove either plug to
drain fuel.

2.

Primary Tank Drain Valve – Open valve to drain water
from priming tank. In freezing weather conditions water
inside priming pump should always be drained.

3.

License Plate Light – ALWAYS make sure light is
working correctly before towing at night.

4.

Rear Tail Lights – Before towing make sure both tail-
lights are working correctly and are properly connected
to the towing vehicle brake light system.

5.

Inlet Port – Attach suction hose to this port. ALWAYS
make sure suction hose is securely attached.

6.

Priming System Tank Fill Reservoir – Used to fill
inner priming tank and vacuum system.

7.

Priming System Drain Valve – Open valve to drain in
water priming tank.

8.

Impeller/Volute – The impeller is a two-blade sprial
open impeller connected to a drive shaft, when rotated
creates a partial vacuum, drawing fluid through the pump
creating suction. The volute houses the impeller.

9.

Bearing/Seal Sight Glasses – Use these sight glasses
to determine if oil is present. Oil must be

visible

midway

at the slight glasses.

10. Pump Driveshaft Access Panel – Remove this panel

to gain access to the pump driveshaft (gear) or second
vacuum pump.

11. Tires – This pump uses XX-inch X-ply tires. Replace with

only recommended type tires. Replace defective or worn
tires immediately.

12. Fuel Cap Remove to visually inspect fuell level and

to refill fuel tank. Refuel using only recommended types
of diesel fuel (see Deutz Manual). DO NOT top off fuel
and wipe up any spilled fuel immediately.

13. Jackstand Use jack stands to level and stabilize

pump. ALWAYS make sure jack stands are deployed
before operating pump.

14. Tie Downs When transporting of the pump is required,

use these tie-downs (4) to secure the pump.

15. Front Fuel Tank Drain Plug Remove either plugs to

drain fuel.

1

2

3

1

4

4

5

6

7

8

9

10

11

12

13

14

14

15

13
