MQ-MIKASA MRH800GS ROLLER — OPERATION AND PARTS MANUAL — REV. #5 (05/27/08) — PAGE 29
MRH800GS — MAINTENANCE
Engine Oil Replacement
1. Replace engine oil, first in 25 hours of operation and every
50 to 100 hours afterwards.
2. Drain the engine oil when the oil is warm as shown in
Figure 28.
3. Remove the oil drain bolt and sealing washer and allow
the oil to drain into a suitable container.
4. Replace engine oil with recommended type oil as listed
in Table 3. Engine oil capacity is 1.16 quarts (1.1 liters).
DO NOT overfill.
5. Install drain bolt with sealing washer and tighten se-
curely.
Air Filter
1. Remove the air cleaner cover and foam filter element as
shown in Figure 23.
2. Tap the paper filter element (Figure 29) several times on a
hard surface to remove dirt, or blow compressed air [not
exceeding 30 psi (207 kPa, 2.1 kgf/cm
2 )] through the filter
element from the air cleaner case side. NEVER brush off dirt.
Brushing will force dirt into the fibers. Replace the paper filter
element if it is excessively dirty.
3. Clean foam element in warm, soapy water or nonflammable

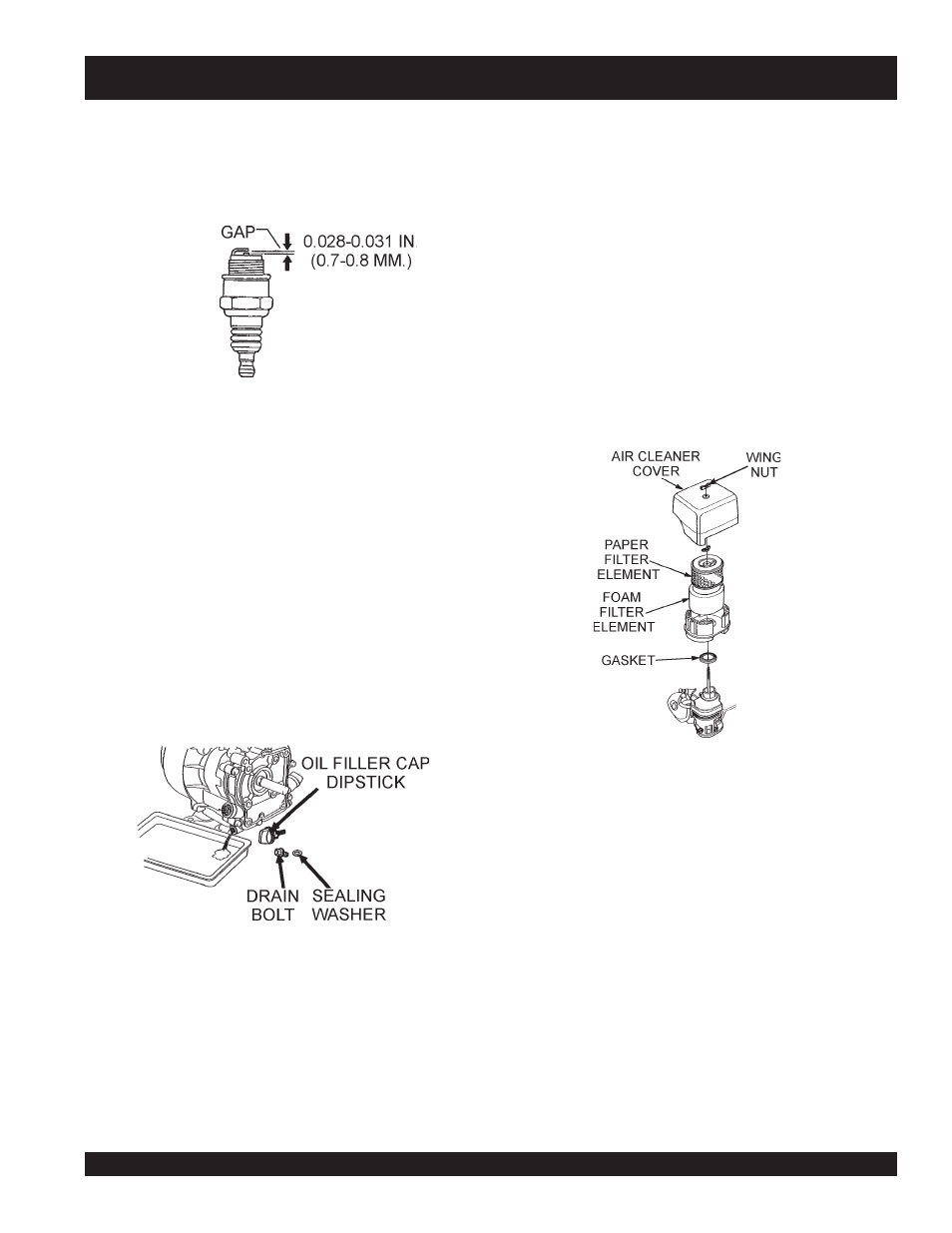

solvent. Rinse and dry thoroughly. Dip the element in clean
engine oil and completely squeeze out the excess oil from the
element before installing.
Figure 29. Engine Air Filter
Figure 28. Engine Oil (Draining)
Spark Plug
1. Remove and clean the spark plug (Figure 27).
2. Adjust the spark gap to 0.028 ~0.031 inch (0.6~0.7 mm). This
unit has electronic ignition, which requires no adjustments.
Figure 27. Spark Plug Gap
ROLLER INSPECTION AND ADJUSTMENT
1. Refer to Table 7 for oil and grease requirements.
2. Check oil tank level daily.
3. Check the machine for oil leak and proper function of lever,
cables, and links daily.
