MTS SWIFT 45 GLP Sensor User Manual
Page 46

SWIFT
®
45 GLP Sensors
46
Road and Track Vehicles
Installation
Note
Use care when installing the top plate and extensions. The 9-pin
connectors are keyed. The top plate and extensions should be fitted on
straight (without bending or angling it) to make sure they engage the four
connectors simultaneously and evenly.
D.

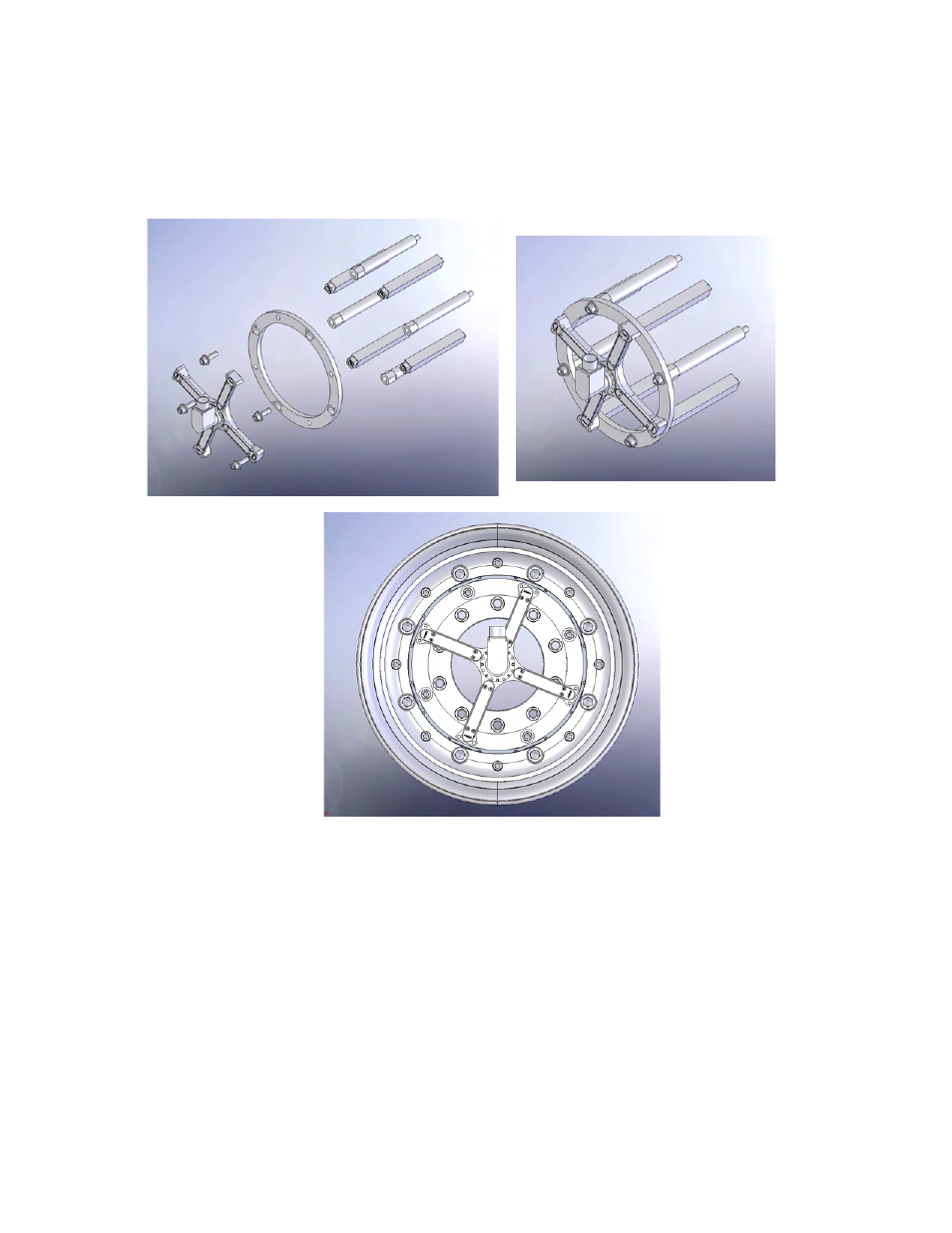

Secure the top plate to the standoffs using the four M12 bolts and
washers.
Lubricate the threads with Molykote g-n paste and torque to 93 N·m
(69 lbf·ft).
E.
Install the slip-ring bracket with the slip ring and restraint tube.
Slide the restraint tube through the hole in the anti-rotate bracket
(installed earlier) as far as necessary to align the slip-ring bracket to the
connectors on the top plate.
The slip-ring bracket fits over the circular connectors on the top plate at
the locations labeled Board 1. The slip-ring bracket is similarly labeled
to prevent connecting it the wrong way.
