Model 505G2.20 - 505G2.30 SilentFlo™ HPU 32
HPU Setup
Installation

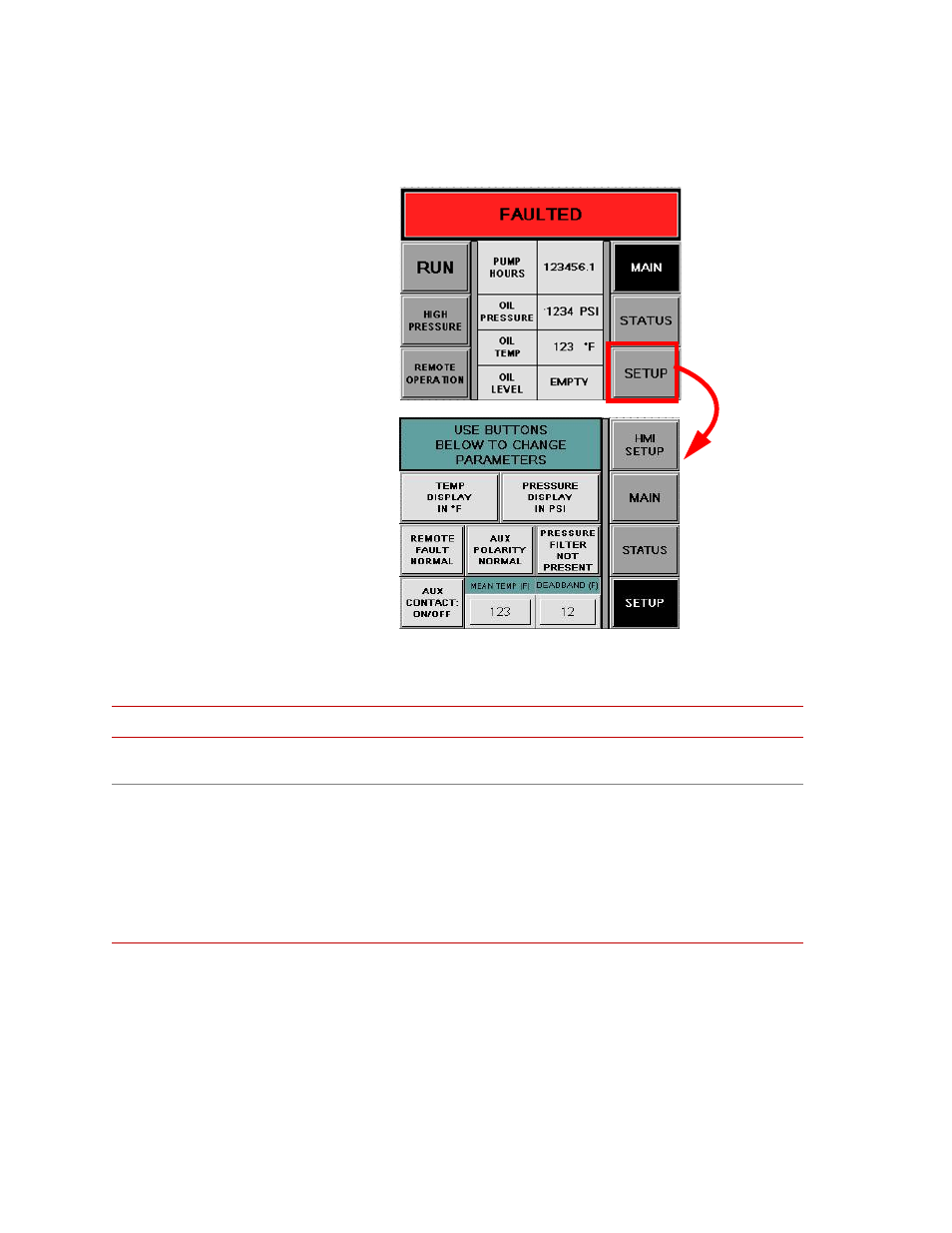

4. On the user interface panel, press and hold the Setup button for five seconds
to display the Setup HMI (human-machine interface) screen.
5. The following table describes the pushbuttons and indicators on the Setup
screen.
Name and Location Description
Use Buttons Below To Change
Parameters Indicator - blue-green: Provides instruction for the setup screen.
Remote Fault Normal/Remote Fault
Reverse Pushbutton /Indicator. The HPU generates fault signals for remote
monitoring. This button is used to define the polarity of the output
signal.
Remote Fault Normal - gray: The remote fault signal is active high
meaning the fault contact is closed when a fault is present.
Remote Fault Normal - black: The remote fault signal is active
low meaning the fault contact is open when a fault is present.
