Specifications
Series 646 Hydraulic Collet Grips Introduction 23
Series 646 Hydraulic Collet Grips Specifications—Flat Specimens
M ODEL
SI M ETRIC U.S. C USTOMARY
T X W X L *
* The tolerance for width (W) is ±0.254 mm (±0.01 in); the tolerance for thickness (T) is +0.000, -0.051 mm
(+0.000, -0.002 in).
P ART N UMBER T X W X L * P ART N UMBER
646.10 1.5 x 6.0 x 25 mm 038-059-104 0.0625 x 0.25 x 1.0 in 038-059-101
646.10 3.0 x 12 x 25 mm 038-059-105 0.125 x 0.5 x 1.0 in 038-059-102
646.10 6.0 x 24 x 25 mm 038-059-106 0.25 x 1.0 x 1.0 in 038-059-103
646.25 - - 0.25 x 1.0 x 2.2 in 038-059-301
646.25 - - 0.375 x 1.5 x 2.2 in 038-059-302
646.25 - - 0.5 x 2.0 x 2.2 in 038-059-303
646.25 - - 0.625 x 2.5 x 2.2 in 038-059-304

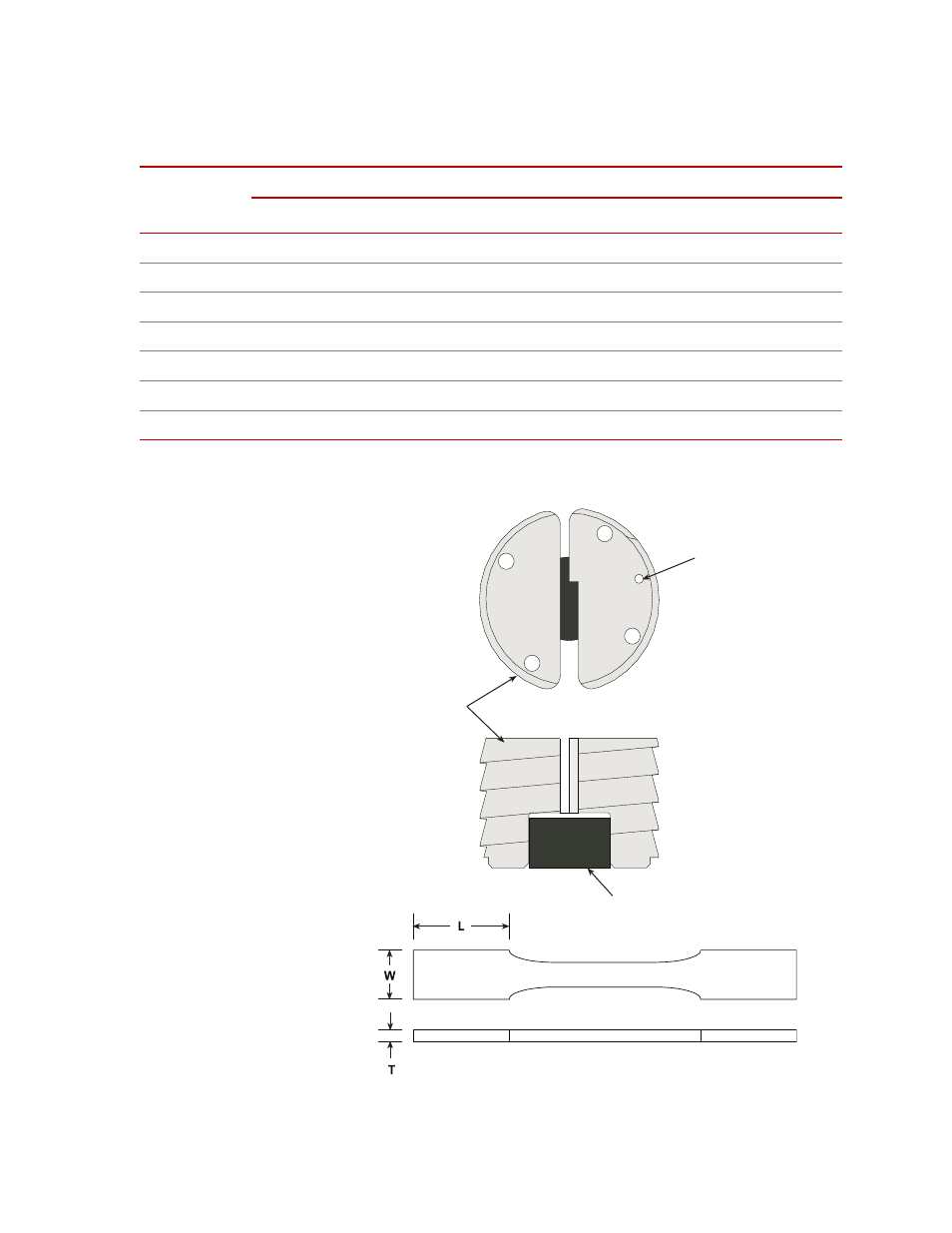

Rubber Platen
Collet
Assembly
Alignment
Mark
Top View
Cutaway Side
View
Coat Threads on
Collet with
Molykote G-n
Flat Specimen
