Mounting a Swivel
Series 249G2 Swivels
Installation
21
Installation
This section describes how to install the Series 249 Swivels to the foundation.
For information is attaching the swivels to actuator rods, refer to the appropriate
actuator product manual.
Contents
Mounting for Angularly Applied Loads 22
Rigid support for
swivel mounts
The swivel base assembly is not designed to rigidly support an actuator for
vertical operation. In general, actuators that require rigid support are equipped
with a pedestal base accessory. Should it become necessary to rigidly support an
actuator with a swivel base assembly, contact MTS Systems Corporation for rigid
support recommendations.
Mounting a Swivel
All models of the Series 249 Swivels can be mounted with four socket head bolts.
The mounting bolt size is determined by the model number. See the following
table for the recommended mounting bolt size, torque, grade, and mounting bore
thickness.
Mounting Bolt Size, Torque & Grade Requirements
Model
Recommended Mounting
Bolt Size
Mounting Bolt
Torque
Recommended
Bolt Grade
Mounting Bore
Thickness
SI Metric
U.S.
Customary
N•m
lbf-ft
IS
SAE
mm
in
249xx.M25
M10 x 1.50
3/8 in-16
53
34
12.9
8
24.6
0.97
249xx.M70
M16 x 2.00
5/8 in-11
230
160
12.9
8
38.1
1.50
249xx.M160
M16 x 2.00
5/8 in-11
230
160
12.9
8
57.2
2.25
249xx.M340
M24 x 3.00
1 in-8
780
680
12.9
8
127
5.00
249xx.M500
M30 x 3.50
1-1/4 in-7
1600
1360
12.9
8
110
4.31
249xx.M730
M30 x 3.50
1-1/4 in-7
1600
1360
12.9
8
230
9.06
249xx.M1000
M42 x 4.50
1-1/2 in-6
3200
2400
12.9
8
312
12.30
249xx.M1550
M48 x 5.00
1-3/4 in-5
5000
3700
12.9
8
445
17.50

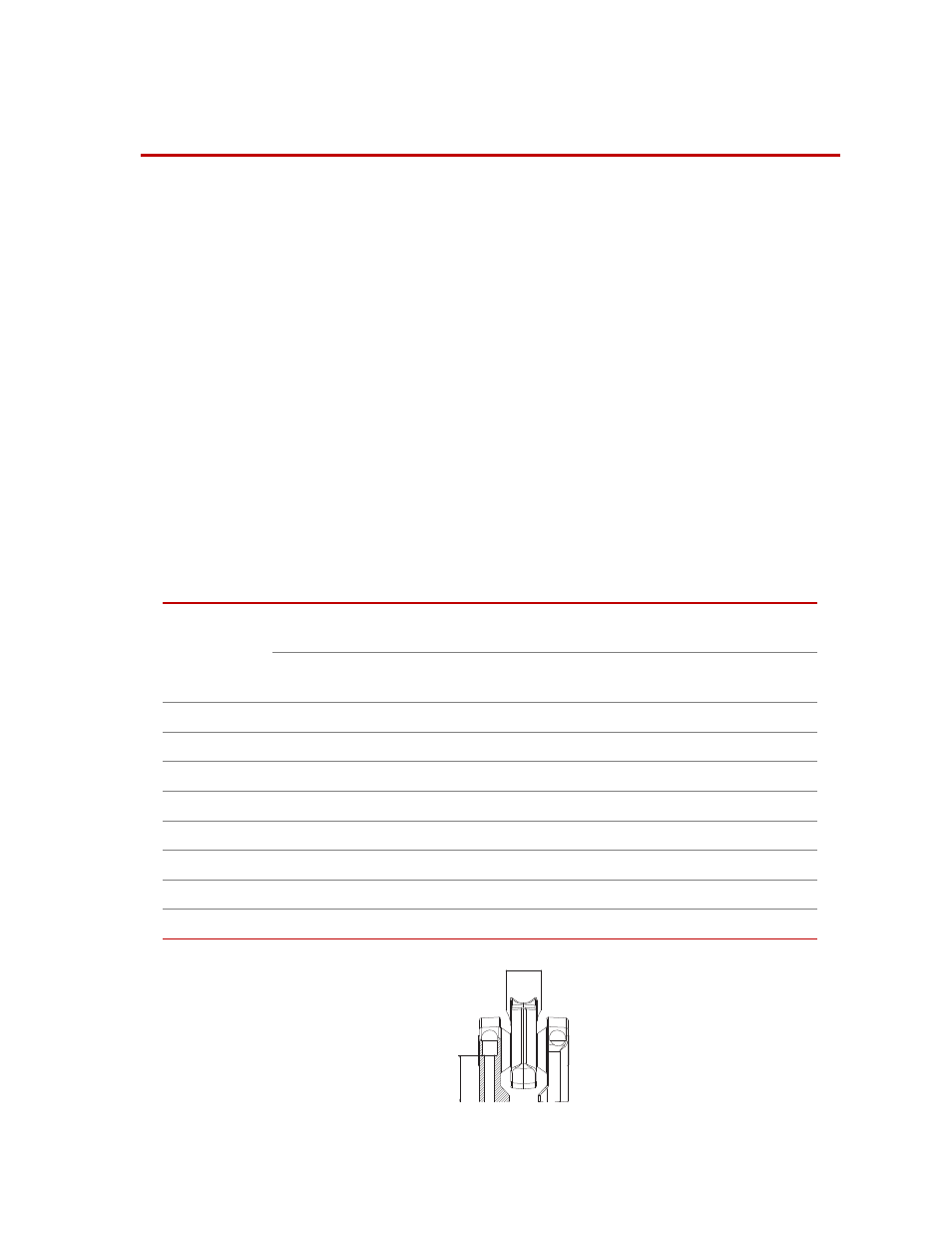

Mounting
Bore
Thickness
