WIRING AND BATTERY
eng
17
Connect the black battery lead from the power cable to the negative (–)
post on battery A. Connect the red battery lead from the power cable to
the positive (+) post of battery C. Connect a jumper wire between the
positive (+) post of battery A to the negative (–) post of battery B.
Connect another jumper wire between the positive (+) post of battery B
to the negative (–) post of battery C. Install a 50 amp circuit breaker in
line with the positive battery lead.

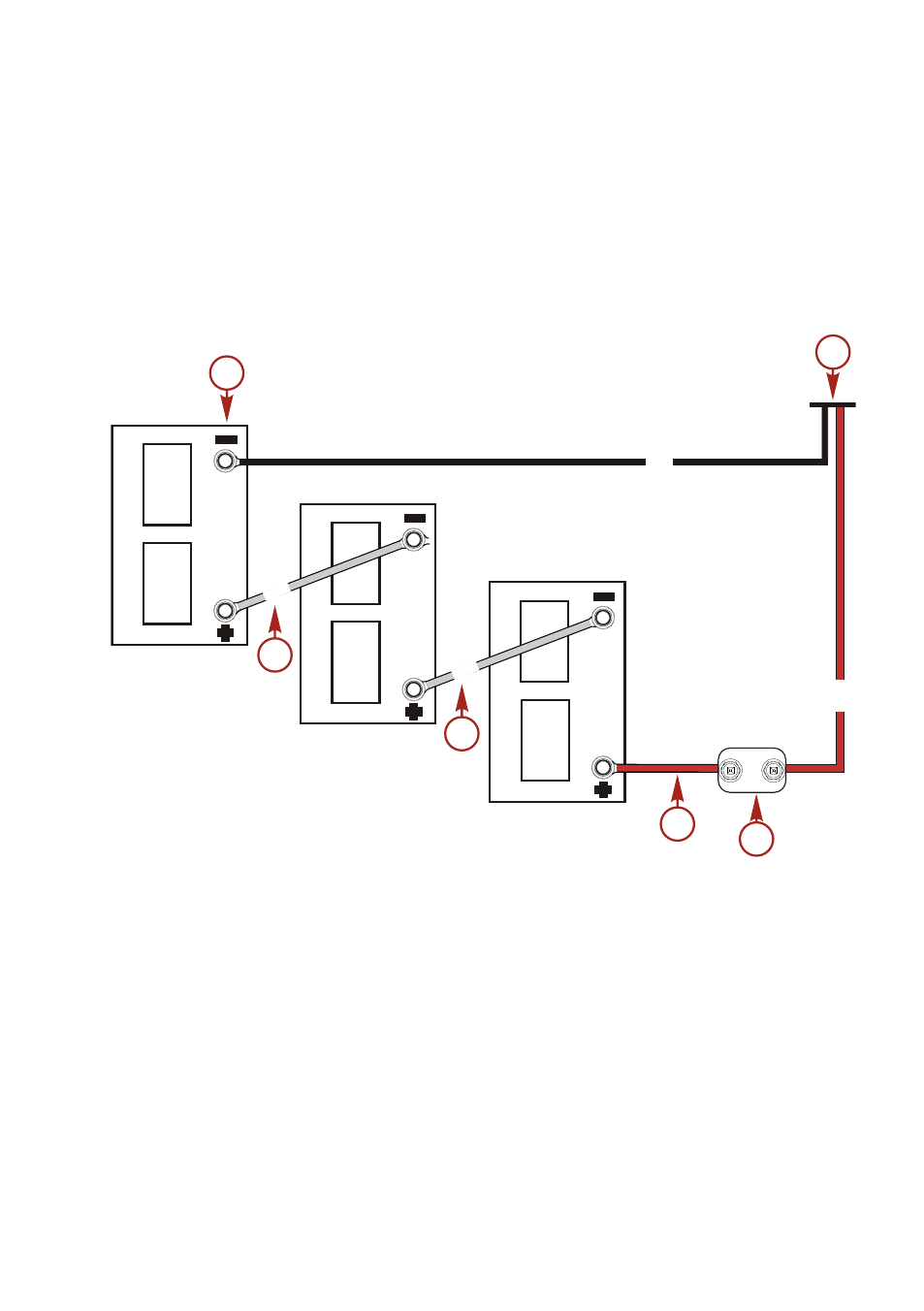

36 volt battery hookup
a - Power cable
b - 50 amp manual reset circuit breaker
c - Jumper wire
d - Common ground
RED
BLK
37825
GRY
c
Battery B
Battery C
Battery A
GRY
c
a
b
c
d
