WIRING AND BATTERY
eng
15
Connect the red battery lead to the battery positive (+) post and the
black battery lead to the battery negative (–) post. Install a 50 amp circuit
breaker in line with the positive lead, as shown.

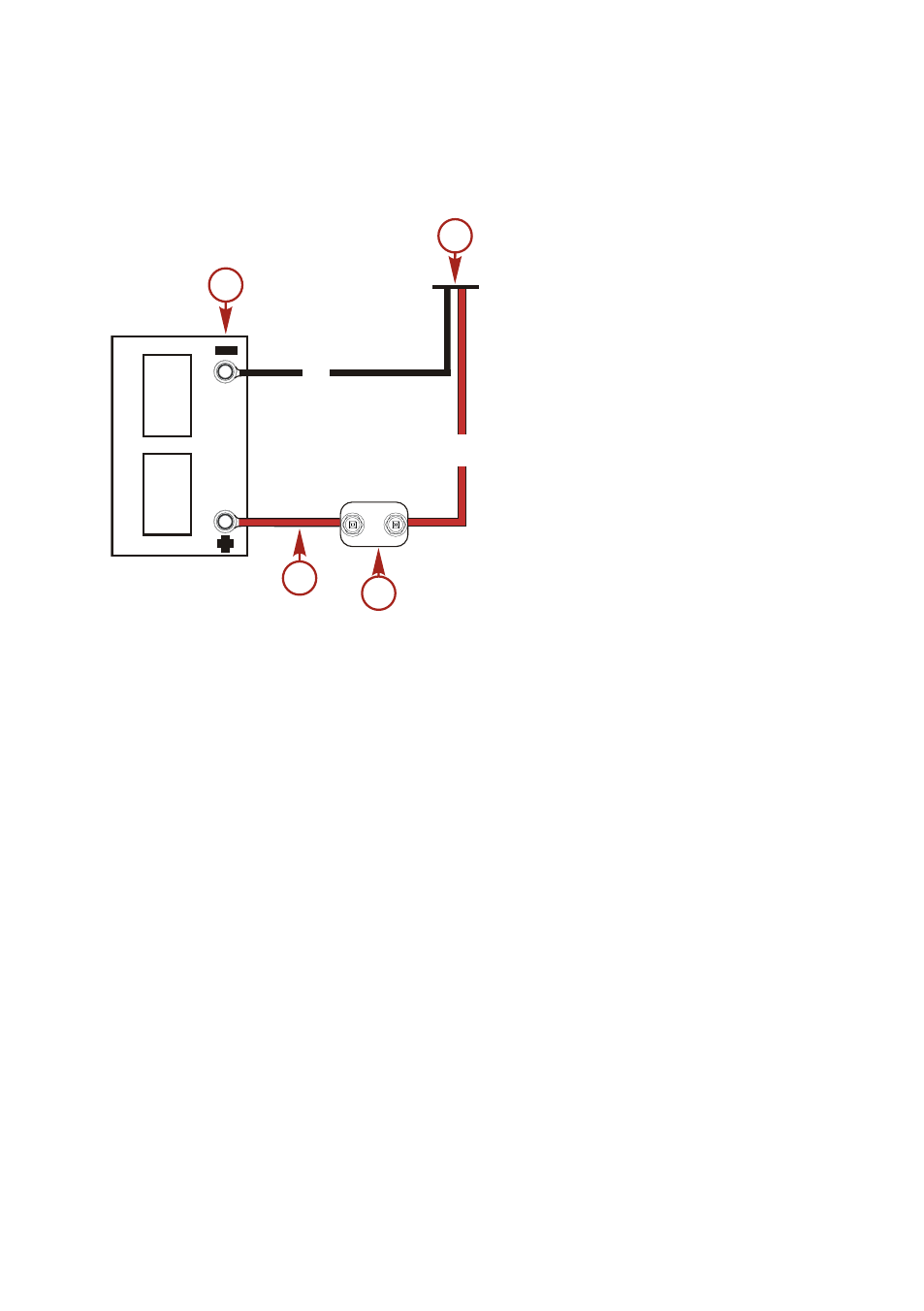

12 volt battery hookup
a -
Power cable
b -
50 amp manual reset circuit
breaker
c -
Jumper wire
d -
Common ground
RED
BLK
a
b
c
d
37289
