MMF POS Standard RS-232 Connection Interface Kit User Manual
Page 8

531-8661-00 MMF Multi-Serial Interface Page 7 of 12

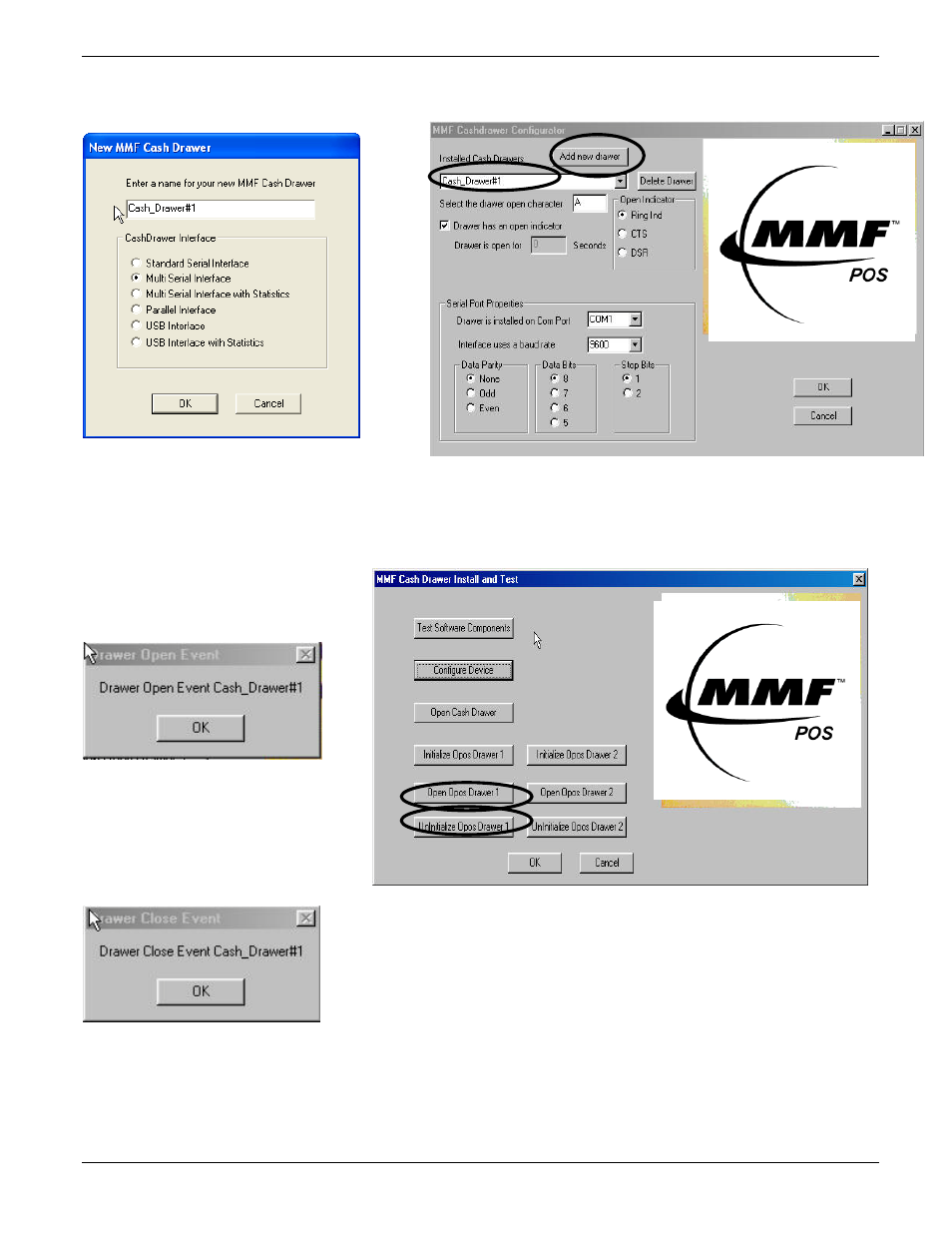

4.-
CONFIGURE DRAWER
“Add new drawer” called Cash_Drawer#1
5.-
Type all the settings as illustrated on
the configuration screen and click
“OK” to save settings
6.-
TEST DRAWER
Click on “Initialize OPOS Drawer 1”
then, click on “Open OPOS Drawer 1”
the following message will be displayed:
7.-
Click “OK” to the above message and
then manually close the cash drawer.
When the drawer is completely closed
the following message will be displayed:
8.-
Click on “Uninitialize OPOS Drawer 1” and the test is complete.
