531-8661-00 MMF Multi-Serial Interface Page 9 of 12


TEST PROCEDURE
Daisy Chain two cash drawers

–This serial non-dedicated configuration utilizes only one PC COM port

to control two cash drawers. As a unique feature, each cash drawer can report the drawer Open / Close status
independently.


Test from DOS:

1.-

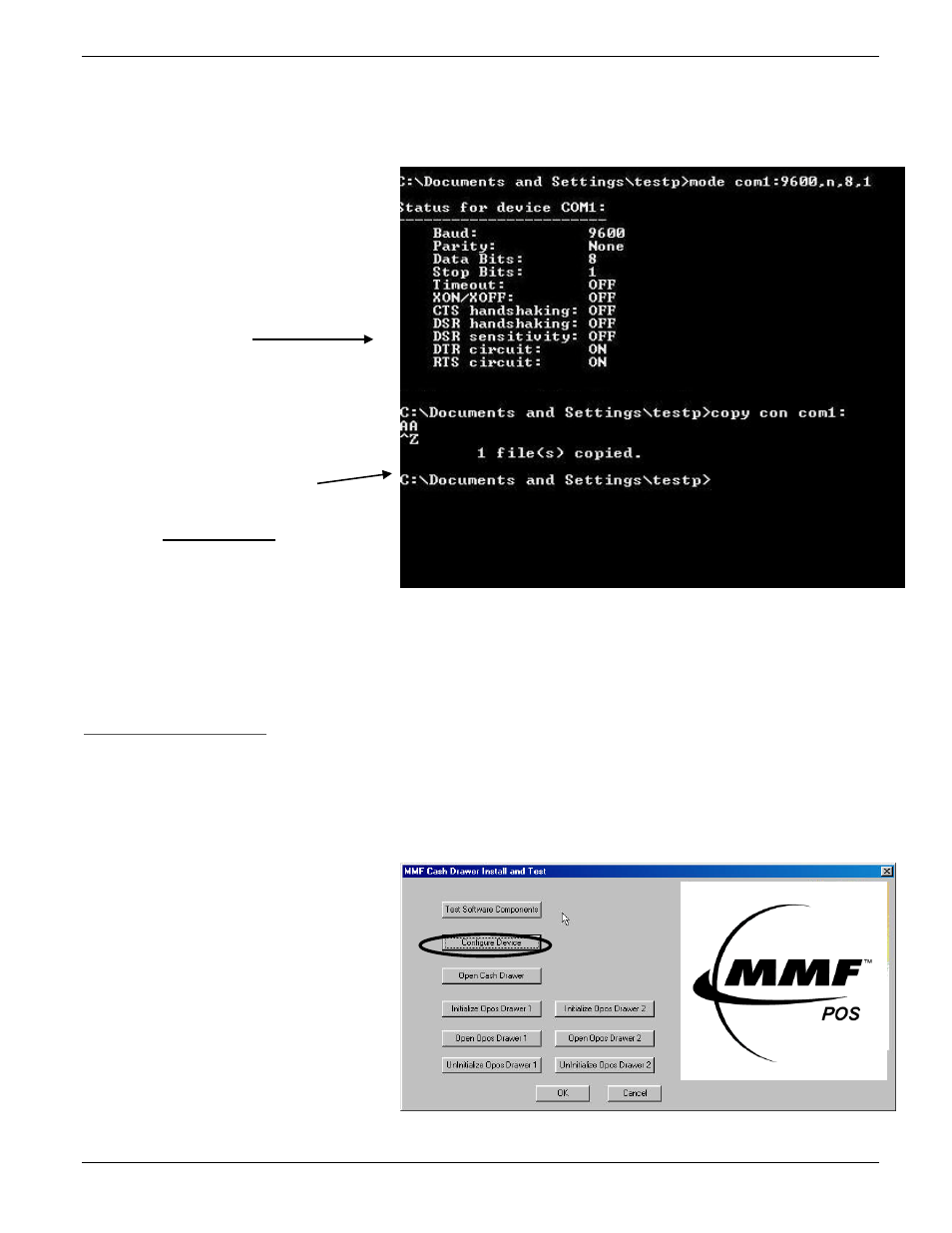

Configure the COM port settings

by typing:

MODE com1:9600,n,8,1

The computer should

return the following


2.-

To test the cash drawer type:

copy con com1:
A

F6


The drawer should open and the
PC will return the following

3.-

To test Cash Drawer #2

copy con com1:

type:

B

F6


Test from Windows:
Daisy Chain two cash drawers

1.-

INSTALL MMF OPOS DRIVER –V1.9, available under:

www.mmfcashdrawer.com

/ Tech Support / Drivers

The user installing the MMF cash drawer software and configuring the cash drawer devices on Windows 2000

and Windows XP is required to have Administrator Rights. Once the software is installed, all users with normal
rights can use it.

To install the driver run the file: Setup.exe. When the installation is complete, a start menu item under the
‘Programs’ folder will have entries for both the:
-Configure and Test
- OPOS Test

2.-

Open the “Configure and Test “

program and configure the screen
with the following settings:

3.-

Click on “Configure Device”
