Advantage User Manual
Last revised: 9/1/2012
8

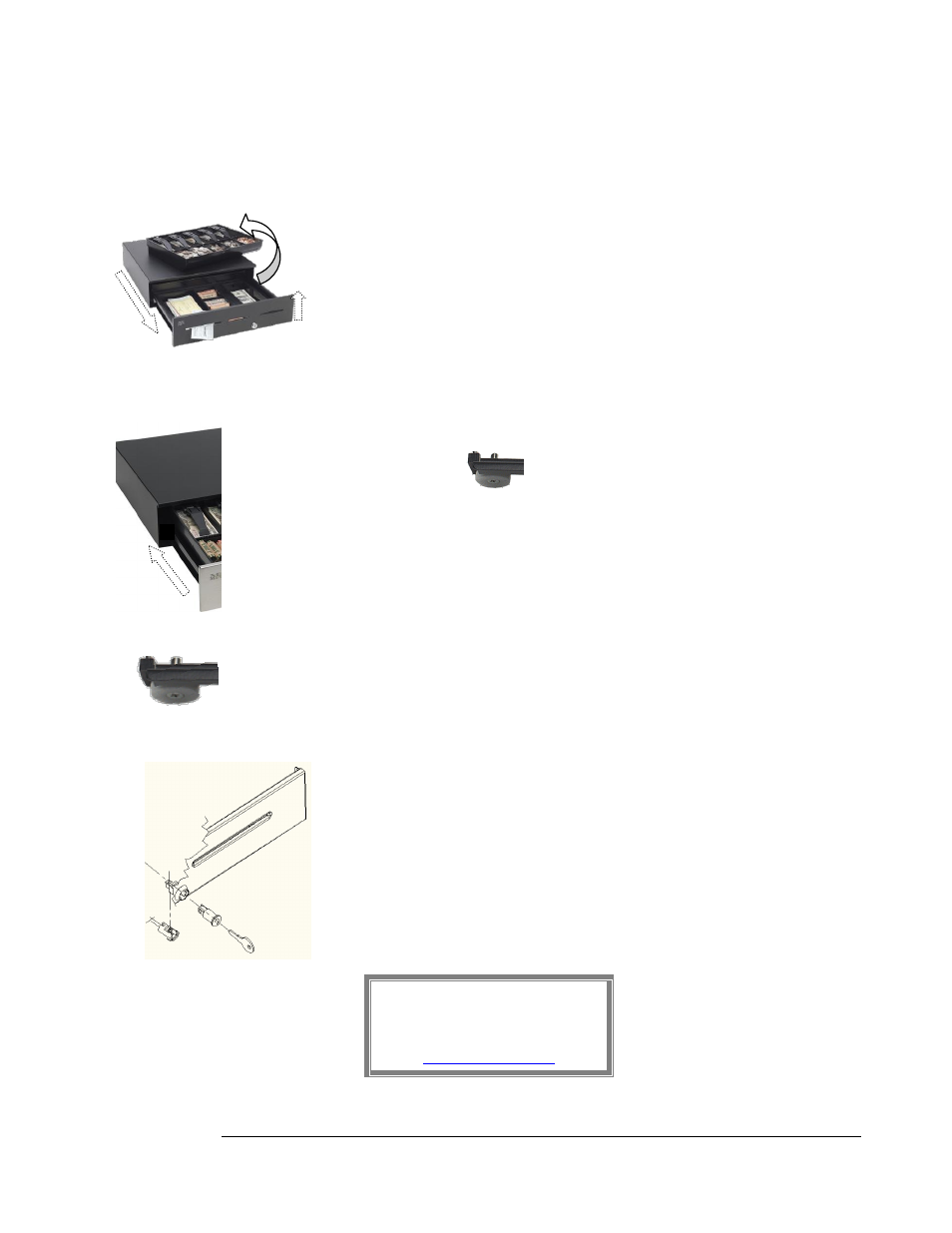

Replacement / Removal of Components
Inner Drawer Removal (Roller Suspension System)
 Open the cash drawer and remove the currency till.
 Place one hand on the front lip of the inner drawer front and grasp the bottom
of the cash drawer with the other hand.
 Pull cash drawer out until the two side rollers touch and then pull the drawer
up and out of the cash drawer housing.
Inner Drawer Replacement (Roller Suspension System)
 Place the inner drawer’s rollers behind the fixed rollers placed on each side of the cash
drawer’s housing walls.
 Guide the rollers into the side rails by pushing the inner drawer in.
 Push inner drawer inside cash drawer housing until closed.
 When the inner drawer is fully in closed position, open it and close it a few times to
verify proper operation.
Roller System Replacement
 The removal and replacement of the rails are simply made by releasing the side screw
and nut of the roller.
Lock Removal / Replacement
 Remove the inner drawer as directed above. Flip Inner drawer over.
 Remove clip holding lock.
 Tap or push end of lock rod to remove lock from inner drawer.
 Remove lock from lock rod.
 Reverse steps 1 thru 3 to install new lock.
For replacement parts and/or
accessories, contact your
supplier or visit our website at
www.mmfpos.com
