MMF POS Ingenico i3070 (Hand Held) - 2 Height Stand User Manual
Mmf pos

SPECS
Rotation: 180°around display pole
Height: 2” inch high pole (+/- 3.5”) or counter height (+/- 2.5”)
Tilt Adjustment: +/-45°Pole
Diameter: 2” inches (Base)
Construction: Steel
Finish: Textured powder coat
Maximum Load:
Designed for Ingenico Hand Held i3070/Moneris foot
print.
Cable Management: Designed with openings for easy and convenient
cable access and routing.
Color: Black
MMF POS
Transaction Terminal Stands (P/N:225758404)
Quick Installation Instructions
INSTALLATION
1.
Remove stand from packaging box. Firmly secure the
base pole by bolting four (4) screws through the base
plate to a flat counter surface.
2.
Remove the socket head cap screws from the “C”
Locking Bracket using the Allen Wrench provided in
the kit.
3.
Mount payment terminal to stand by gliding it in place
until side walls of the stand are snug with terminal.
4.
Secure the terminal by replacing and tightening the
“C” Locking Bracket located in the back of the stand
using the Allen Wrench provided in the kit.
5.
Secure the stand’s tilt adjustment by tightening the
two side thumb screws on the mounting plate on
each side of the stand.
6.
Guide cable connections down and out through the
bottom opening.
7.
Make cable connections as needed.
For parts and/or additional accessories, contact your supplier or visit our website at http://www.mmfpos.com
TTS-03 Inst. Sheet (7-20-2010)
COPYRIGHT BY MMF POS
COMPANY, WHEELING, IL
TOOLS AND HARDWARE REQUIRED
• One (1) Allen Wrench is included with kit to adjust the
Socket head cap screws (6-32) for
the “C” locking
bracket.
• NO other hardware or tools are included for mounting
stands to a surface. Hardware will need to suit your
specific desktop or platform thickness.
• Phillips Head Screwdriver or power drill will be required
to mount stand to surface (if necessary).

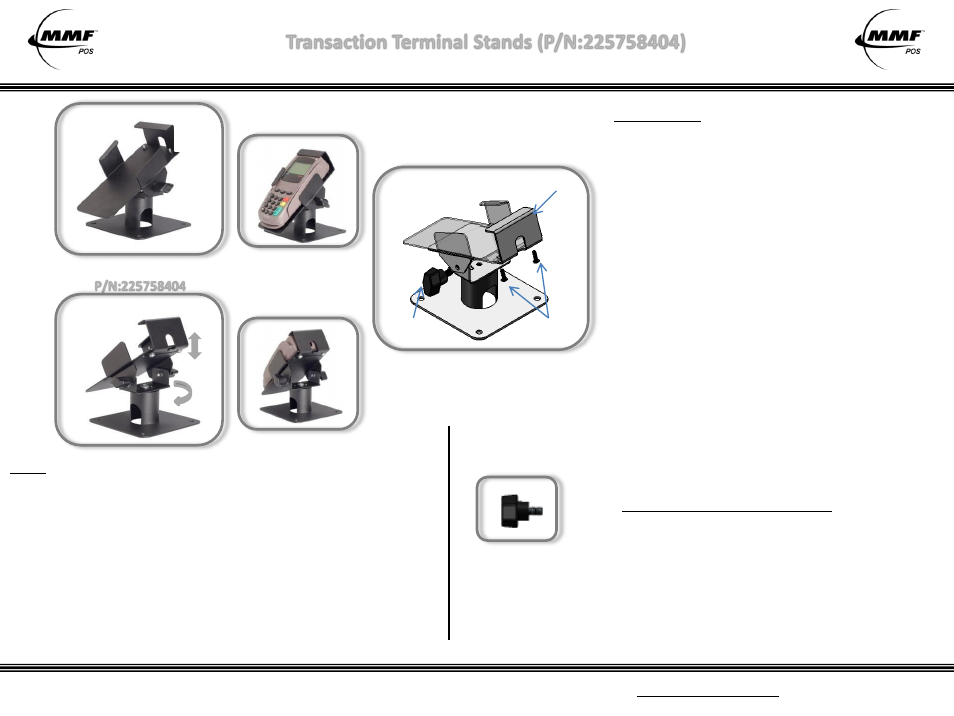

Basic Overview
Note: Images are not to scale.
“C” Locking Bracket
Thumb
Screws
Socket head cap
screws 6-32
2” Height Stand
P/N:225758404
Front View
Back View
R
e
p
la
c
e
m
e
n
t
P
a
rt
s
Thumb Screw
P/N: 225-76140-04
