MMF POS ViVOtech-ViVOpay Terminals (8800,8600,8100) - 2 Height Stand User Manual
MMF POS Equipment

Transaction Terminal Stands (P/N:225
Transaction Terminal Stands (P/N:225--7586
7586--04 & P/N:225
04 & P/N:225--7587
7587--04)
04)
Quick Installation Instructions
Designed for ViVOtech -ViVOpay® Terminals (8800,8600,8100)
INSTALLATION
1.
Remove stand from packaging box. Firmly secure the
base pole by bolting four (4) screws through the base
plate to a flat counter surface.
2.
Mount payment terminal to stand by aligning the
mounting holes of the terminal to the mounting holes
of the stand.
3.
Using the provided Hex Allen Wrench secure unit
with the four (4) screws provided.
4.
Secure the stand’s tilt adjustment by tightening the
two side thumb screws on the mounting plate on
each side of the stand.
2” Height Stand
P/N:225
P/N:225--7586
7586--04
04
Fixed Height Stand
P/N:225
P/N:225--7587
7587--04
04
Thumb Screw
Front View
Front View
Back View
Cable
Management
Mounting
Holes
Base Mounting Holes
Cable
Management
5.
Guide cable connections down and out through the
bottom opening.
6.
Make cable connections as needed.
For parts and/or additional accessories, contact your supplier or visit our website at http://www.mmfpos.com
VIVO Inst. Sheet - Rev 1 (8-8-2011)
COPYRIGHT BY MMF POS
COMPANY, WHEELING, IL
TOOLS AND HARDWARE REQUIRED
• One (1) Hex Allen Wrench and four (4) screws are
included with kit to secure payment terminal to stand.
• NO other hardware or tools are included for mounting
stands to a surface. Hardware will need to suit your
specific desktop or platform thickness.
• Phillips Head Screwdriver or power drill will be required
to mount stand to surface (if necessary).

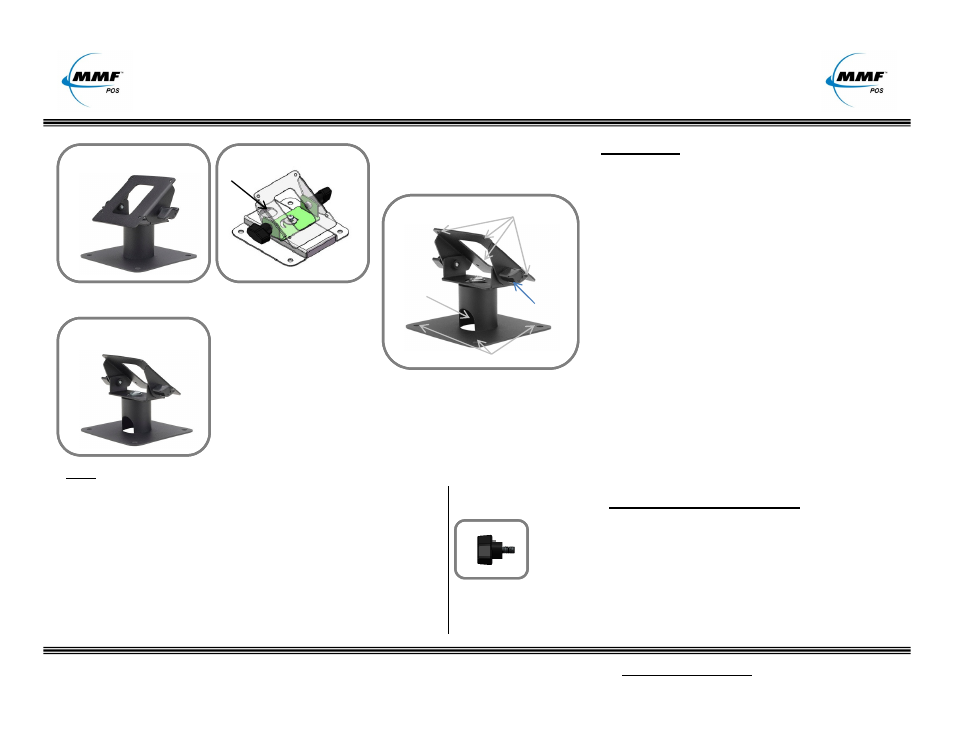

Basic Overview
Note: Images are not to scale.
R
e
p
la
c
e
m
e
n
t
P
a
r
t
s
Thumb Screw
P/N: 225-76140-04
SPECS
Rotation: 180°around display pole
Overall Height & Tilt Adjustment (without Terminal) :
• 2” Height Stand: at 30⁰ Tilt= 4” high / at 45⁰ Tilt= 4 ½” high
• Fixed Height Stand: at 30⁰ Tilt= 3 1/8” high
Pole Diameter: 2” (Applies to 2” Height Stand)
Base Dimensions: 5” x 5”
Construction: 18 gauge Steel
Finish: Textured powder coat
Cable Management: Designed with openings for easy and convenient
cable access and routing.
Color: Black
