Advantage User Manual
Last revised: 9/1/2012
2

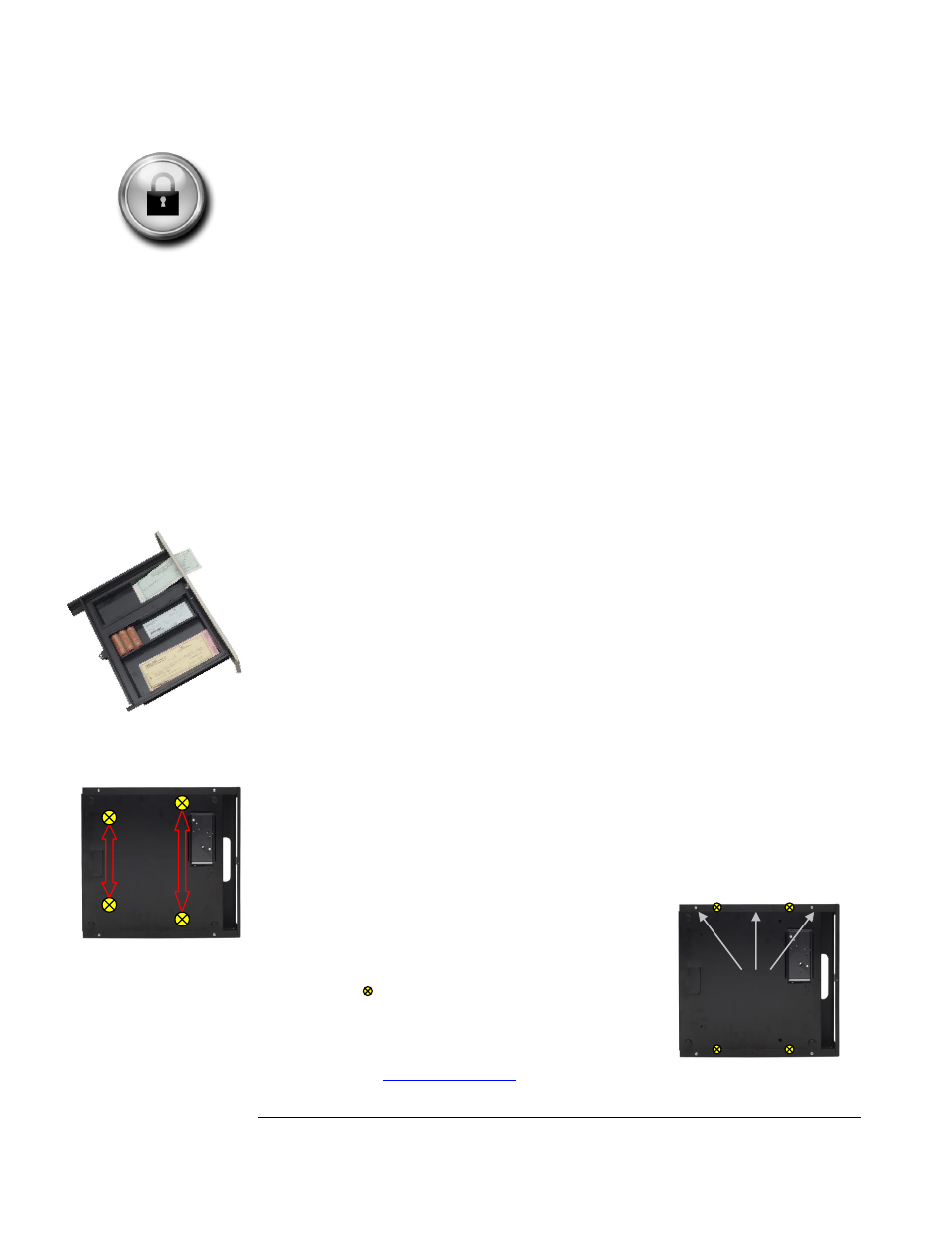

Lock Type / Functions
The Advantage™ Series cash drawer has been designed with standard 3-Position / 4-
Function lock. Locks come in Standard and High Security Levels. Each cash drawer is
equipped with one (1) set of 2 keys. The Standard and High Security locks provide the
following functions:
3-Position / 4 –Function Lock
 12 o’clock position – Electronically ON
 3 o’clock position – Locked Open
 9 o’clock position - Locked Closed
To manually open the cash drawer turn the key 45 degrees to the right. To avoid the possibility of losing,
damaging, or breaking the key from the lock during transactions, please place lock in the 12 o’clock
position and remove key.
The Standard Security Keys will operate all functions of the locks.
The High Security Keys come with a two (2) keys set, one (1) Operator Key which will only open the cash
drawer electronically and one (1) Manager Key which will have full functionality of the lock.
Media Storage
 3 Media Slots - Widths: 5 ¼”, 3”, 3 ½”
 Configurable Trays: Ridges placed horizontally and vertically of the storage
compartment trays allow the dividers to be swapped and secured for any desired
configuration.
 Cash drawer is equipped with dividers in 8 ¾”, 5 ½”, and 3 ¼” lengths for
various placements within the trays.
Surface Mount
The Surface Mount holes were designed to allow the Advantage Series to fit in already
built-in spaces on a counter previously with mounting holes 10 5/16” apart or 13 1/2”
apart.
No Hardware Provided
Under Counter Brackets
The two (2) small mounting holes ( ) on each side of the drawer in between
the three support screws are for the Under-Counter Mounting Bracket.
Follow the procedures detailed in the Under Counter Brackets Manual which came with
the brackets or could be downloaded from www.mmfpos.com .
10 5/16”
13 1/2”
F
R
O
N
T
F
R
O
N
T
Support Screws
