NOTE:

The best water nozzle adjustment depends on

several factors, including the material thickness and

profile tool used. The water pump receptacle cord,

that comes out of the motor, turns on and off along

with the motor. The pump can be plugged into a

receptacle or extension cord to test the aim of the

water stream, and to make adjustments without the

motor and tool running.

Most profiles can be cut in one pass. If the material

comes away from the fence while profiling, less than

the full amount of material will be removed and a

second pass will finish up the profile.

Once everything is set up, profiling is performed by sliding the material through the Profiling Tool

from Left to Right.

PROFILING

(A)

Flip the splash guard brush down

onto the table, turn on the motor and

proceed with a test cut.

MK-EZ

PROFILER

SETUP

(A)

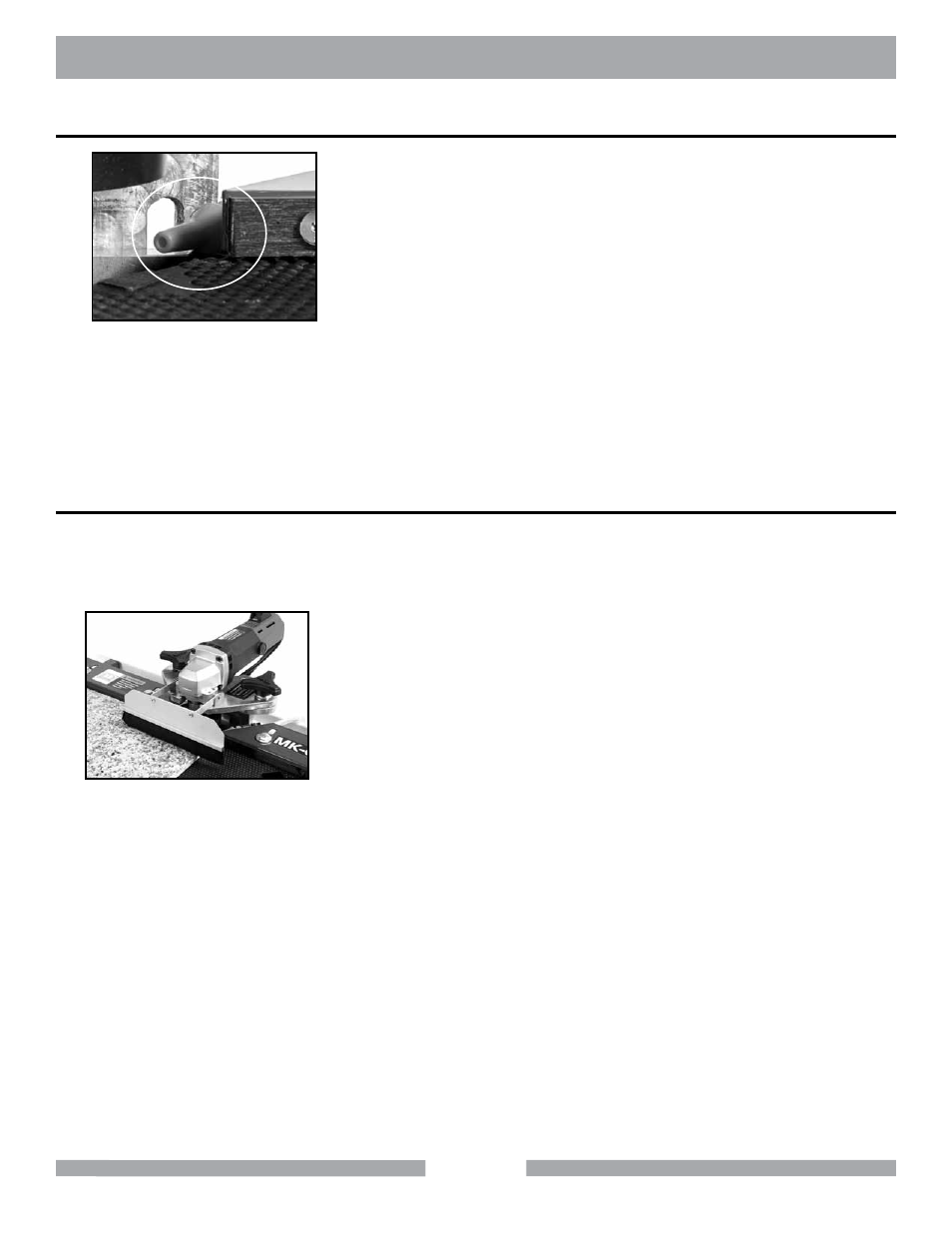

The water nozzle can be

pivoted to provide the best

aim for delivering water to

the contact area between the

material and the tool.

WATER NOZZLE ADJUSTMENT
