MK-100 JCS Tile Saw Revision 06/05, Effective Date June 27, 2005
SAFETY
SAFETY LABEL LOCATIONS:

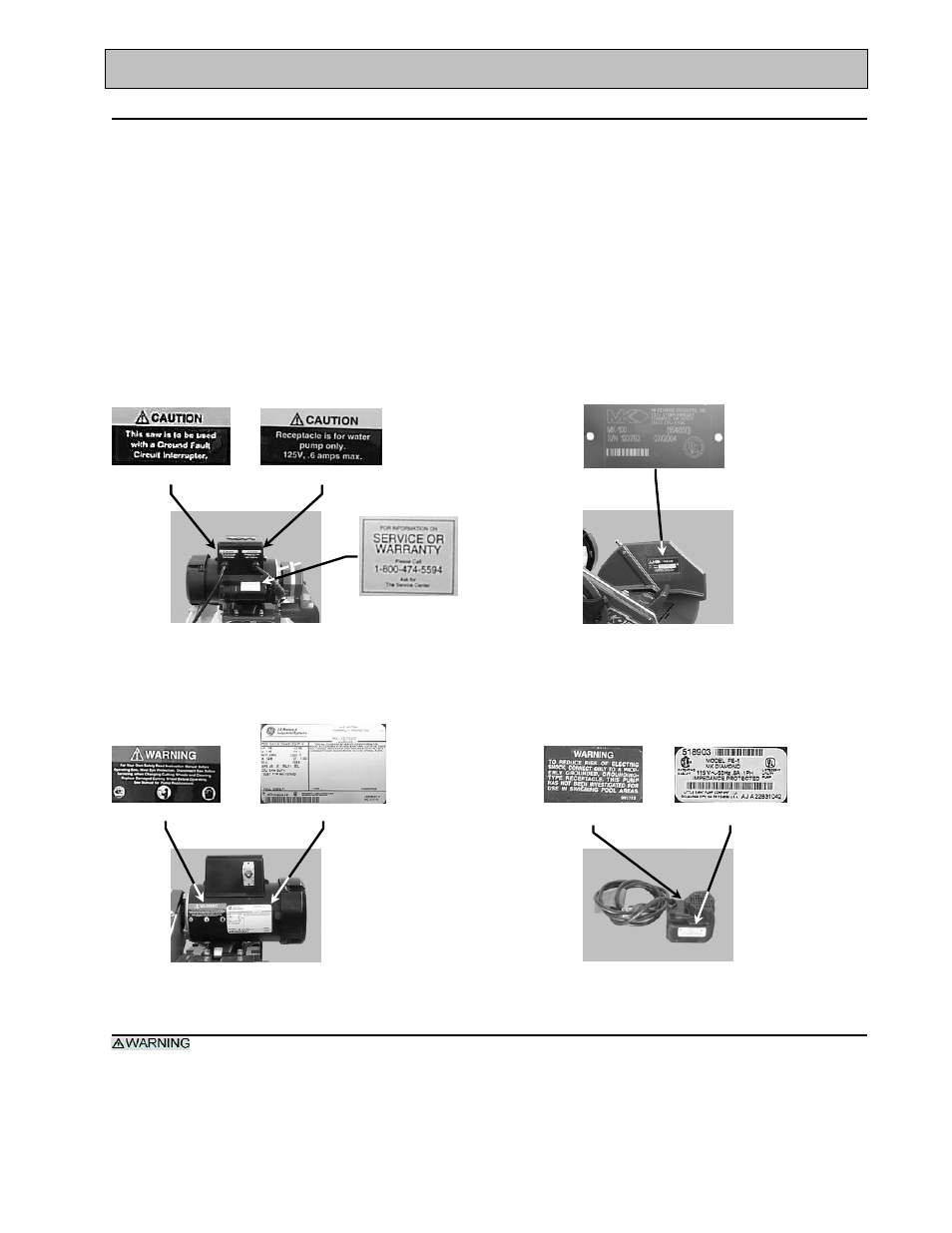

Safety labels are located according to Figures 1 through 4 below. The labels contain important safety
information. Please read the information contained on each safety label. These labels are considered a
permanent part of your saw. If a label comes off or becomes hard to read, contact MK Diamond or your
dealer for a replacement
Item Location Description Part No.
1A. Motor Rear Caution Use Ground Fault Interrupt 155678
1B. Motor Rear Caution Receptacle for Pump Only 154822
1C. Motor Rear Service or Warranty Information 155038
2. Blade Guard Serial Number (Laser Marked) 157500
3A Motor Front Warning Read and Follow Operating Instructions 155806
3B Motor Front Motor Specifications N/A
4A Pump Left Side Warning Connect to Grounded Receptacle N/A
4B Pump Right Side Pump Specifications N/A
TILE SAW SPECIFIC WARNINGS:
Wear eye protection.
Use splash hood for every operation for which it can be used.
Disconnect saw before servicing, when changing cutting blades, and cleaning.
Use tool only with smooth edge cutting blades free of openings and grooves.
Replace damaged cutting blade before operating.
A B
C
1 2
4 3
A B A B
