MK-100 JCS Tile Saw Revision 06/05, Effective Date June 27, 2005
UNPACKING, TRANSPORT, JCS STAND and ASSEMBLY

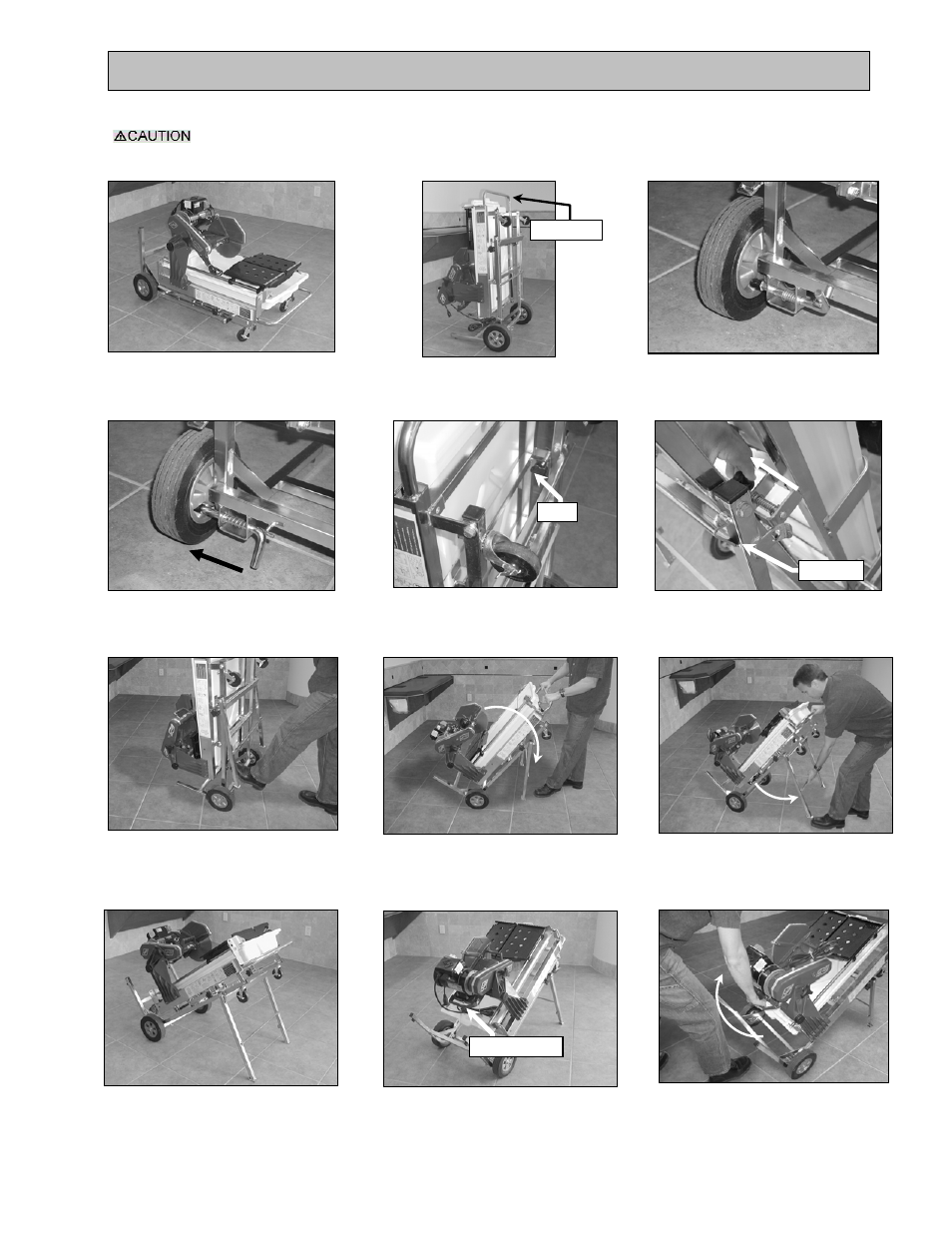

JCS STAND - SET UP FOR OPERATION:
The MK-101 w/ JCS Stand weighs approximately one hundred and twenty eight (128) pounds. Read and
understand all instructions. Failure to follow all instructions in SEQUENCE could result in serious injury.
(A)
Position Saw on a hard level
surface
(B)
Hold the Saw from Handle and
swing to Upright position
(C)
Locate Wheel Lock
(D)
Lock Wheel
(E)
Locate the Knob to release
Front Legs
(F)
Pull Knob and Front Legs will be
released
(G)
Place your foot on Cross
Member for support
(H)
Hold from handle
and swing down
(I)
Make sure to extend Front Legs
as they swing down
Handle
Knob
Front Legs
(J)
Front Legs rest on the ground
(K)
Locate the Cutting Head Handle
(L)
Pull from the Cutting Head Handle
until Air Springs are fully extended
Handle
