MK-100 JCS Tile Saw Revision 06/05, Effective Date June 27, 2005

MAINTENANCE AND TROUBLESHOOTING

NOTE: “Rodding” cooling channels is performed by inserting a small wire rod through the cooling inlet on top

of the Blade Guard and directing the rod out through each of the cooling flow tubes located on the
underside o the Blade Guard. The cooling channels should be “rodded” until all ports are free of
foreign debris.

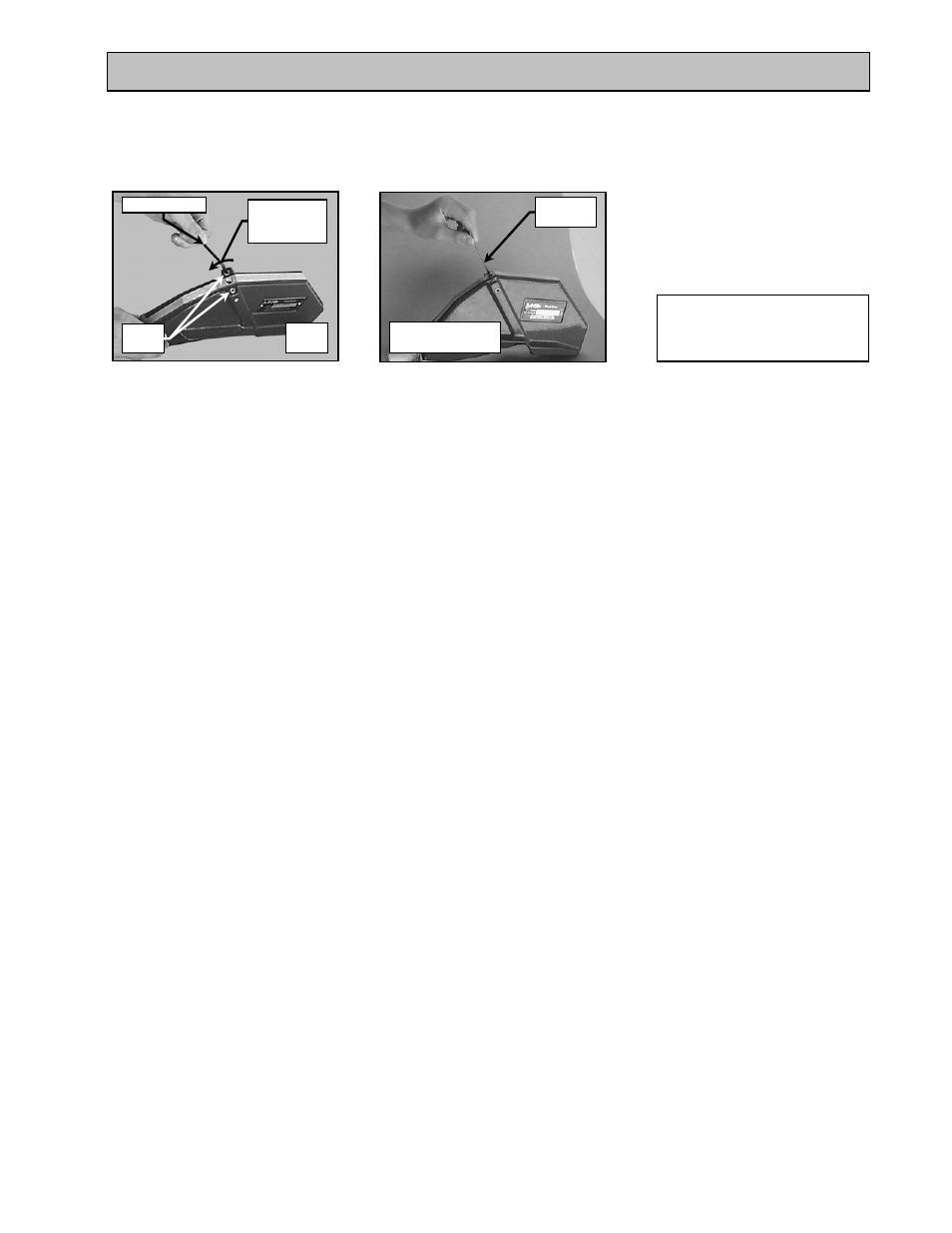

(J)

Remove the Cooling Channel

cover screws

(K)

Rod Cooling Channels

and recheck flow

Return to

MK Diamond

for Repair

(L)

Return to MK Diamond

Cover

screws

Turn counter-

Clockwise

to loosen

Allan Wrench

Rod

Channels

If cooling channels

clear, go to Step L

Go to

Step K
