MK-100 JCS Tile Saw Revision 06/05, Effective Date June 27, 2005
UNPACKING, TRANSPORT, JCS STAND and ASSEMBLY

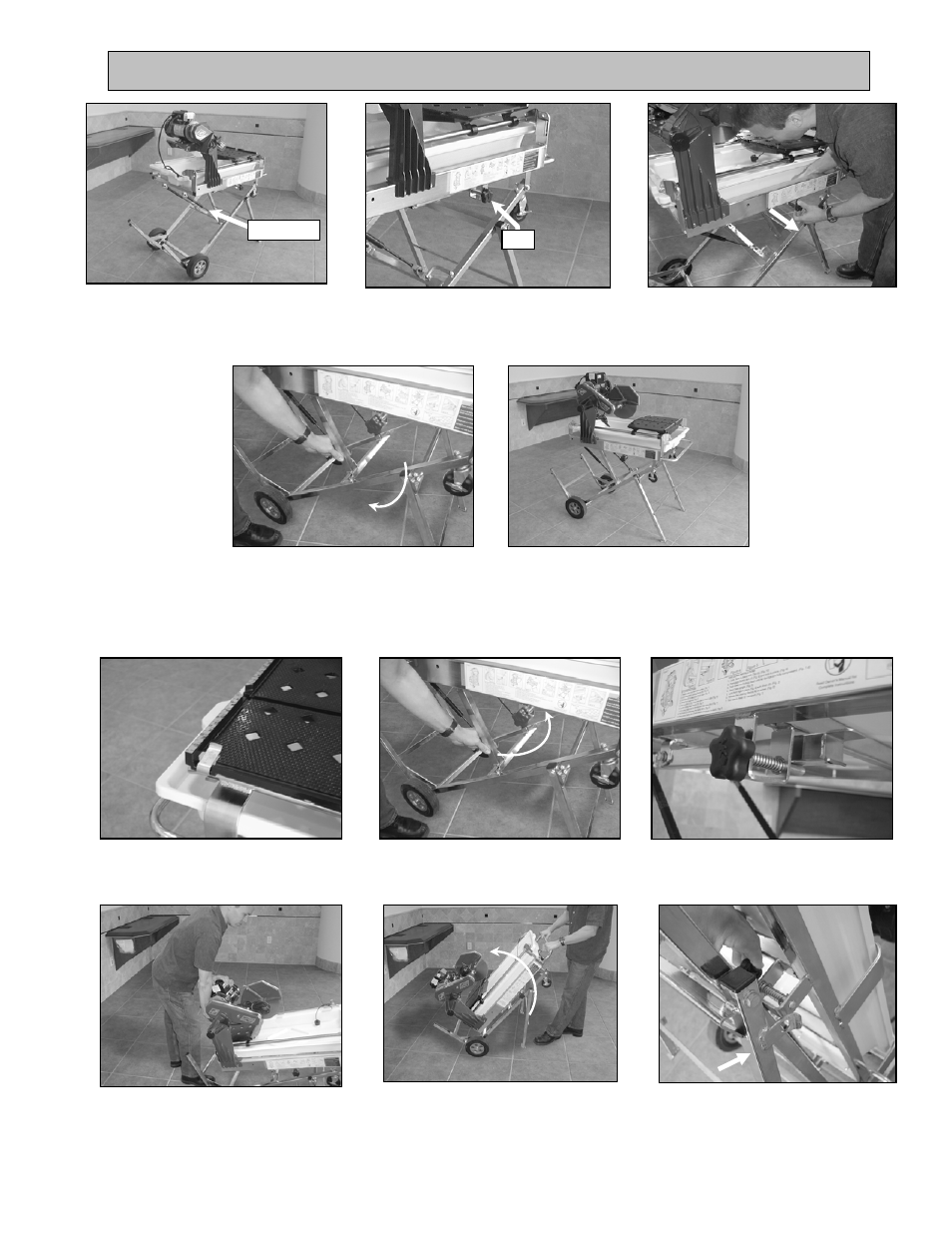

JCS STAND – TAKE DOWN INSTRUCTIONS:
(M)
Air Springs are fully extended
and saw is in Horizontal position
(N)
Locate the Knob to unlock the
Safety Arm
(O)
Pull Knob to unlock the Safety Arm
The Safety Arm will swing down as the
Knob is pulled
(P)
Ensure that Safety Arm rests on
Frame
(Q)
Your Saw is ready!
Knob
Air Springs
(A)
Lock Table in place with Clip
(See pg. 14 for instructions)
(B)
Swing up Safety Arm
(C)
Lock the Safety Arm with Knob
(D)
Push down on Cutting Head until
Air Springs are fully compressed
(E)
Hold saw from Handle and
swing up to upright position
(F)
Push legs against frame to lock
in place with Knob
