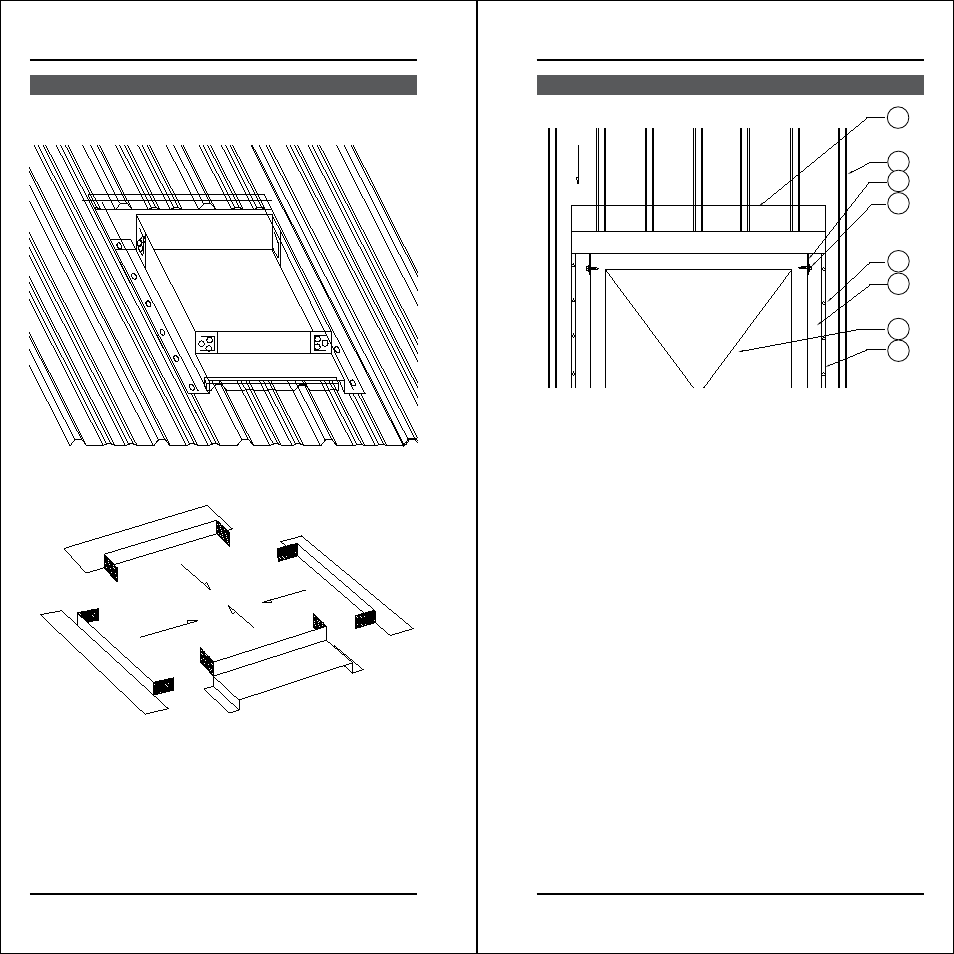

Flashing Chimneys and Skylights properly is vital to a
roofing systems ability to resist water penetration. The
flashing required for this task is the skylight flashing which
will require some field cutting and bending as shown in
these diagrams. The cutting can be by using standard
metal shears and the bends can be done using wide “duck
bill” locking pliers or on a break press. Using a fabricated
cricket as shown on pages 36-37 can provide added
resistance to water penetration.
1
2
3
5
4
6
7
8
1. Skylight/Chimney Flashing (field cut and bend)
2. Roof Panel
3. Field cut and bend
4. Fastener (type depends on Skylight/Chimney material)
5. Panel Fastener
6. Skylight/Chimney Flashing (field cut and bend)
7. Skylight/Chimney
8. Tape Sealant (between panel and trim)
Slope
S
kylight
/c
hiMney
d
etAil
S
kylight
/c
hiMney
d
etAil
